DD7970

Diode Dynamics SS3 Add-On Fog Lamp Kit for 2024 Ford Mustang

Prix réduit$778.00 CAD
/
Frais d'expédition calculés lors du passage à la caisse.

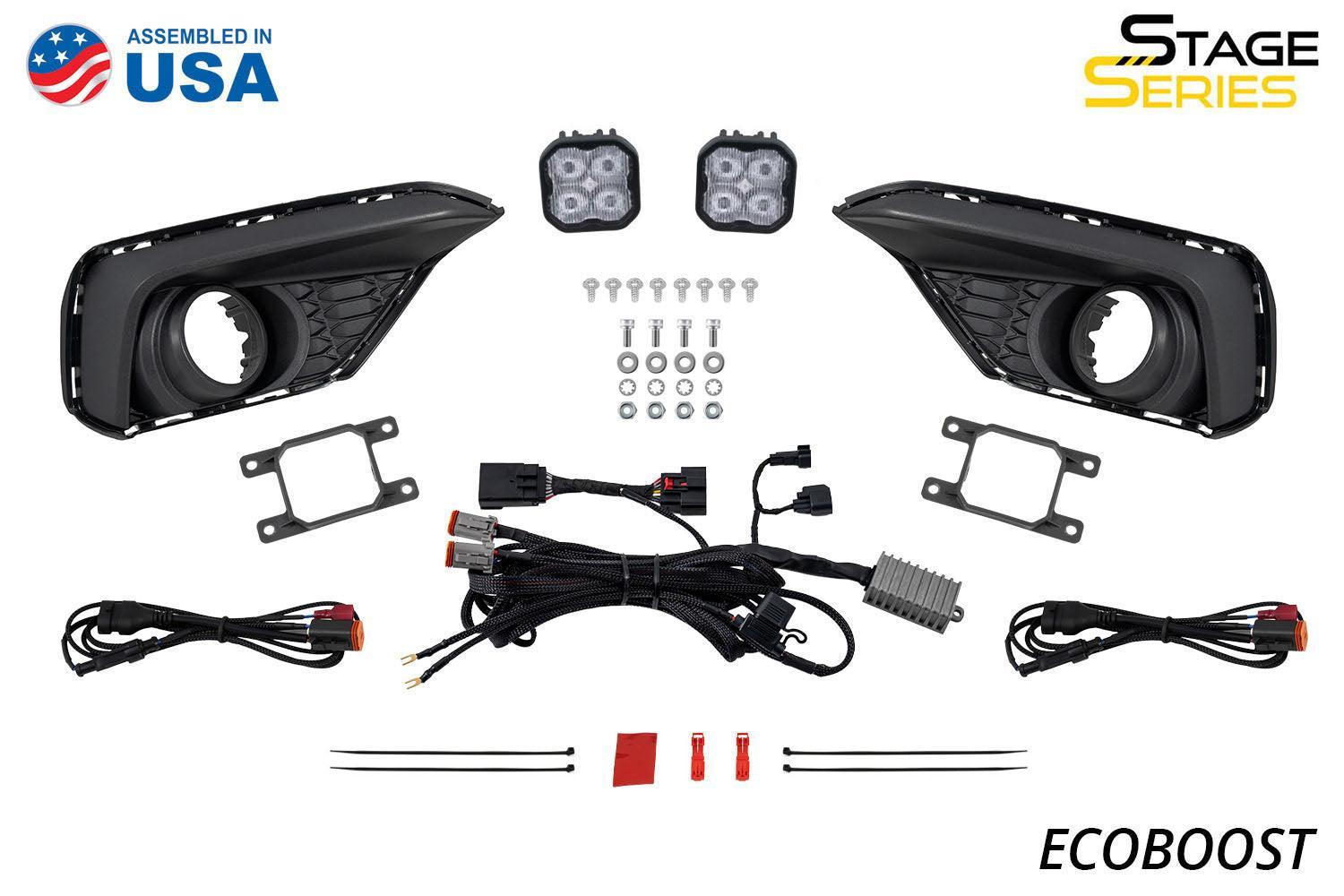

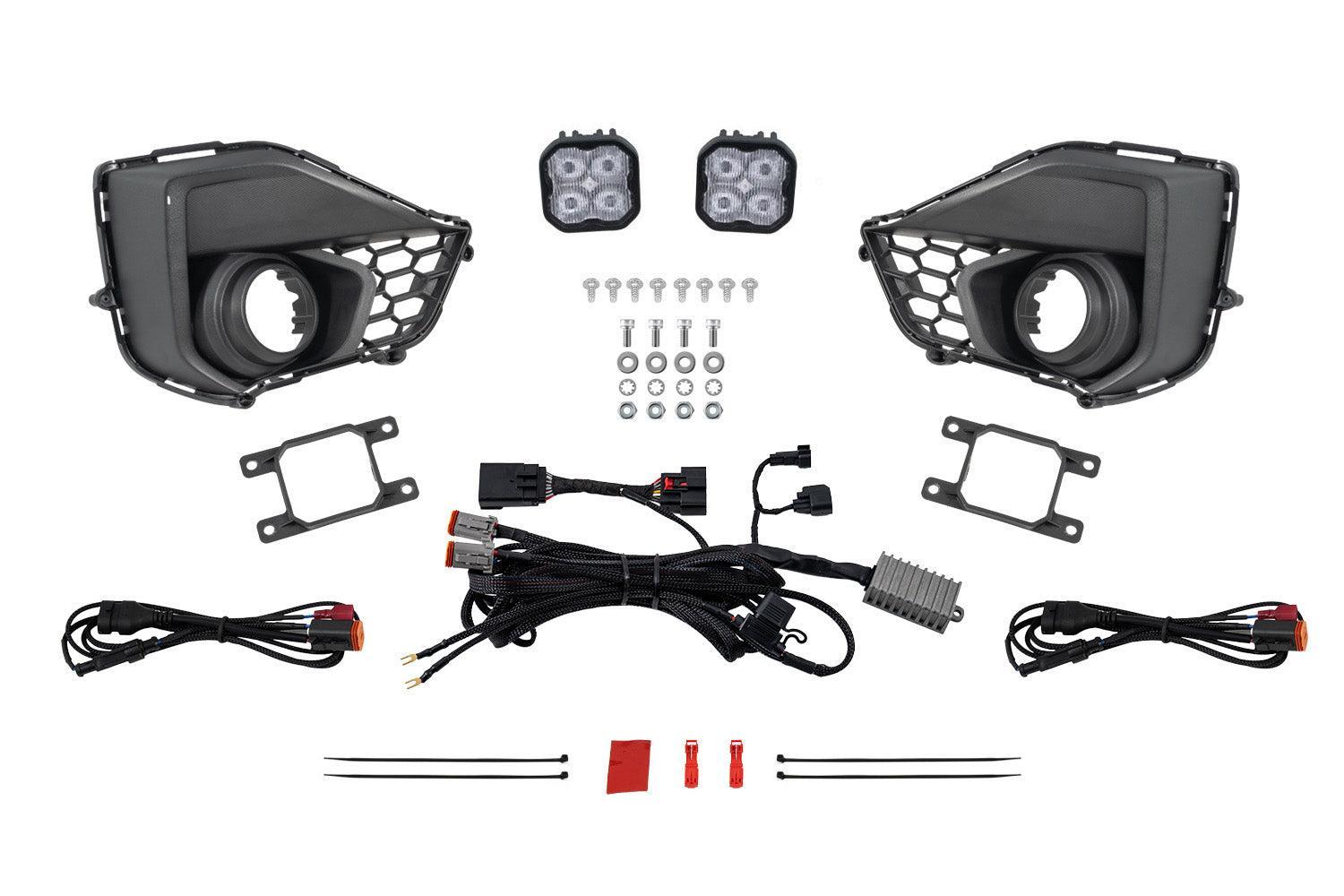

  • CE QUI EST INCLUS: (en anglais seulement)
Two (2) SS3 Type A Fog Lamps
Two (2) Vehicle specific Fog Lamp Bezels
One (1) Add-On Fog Harness
Four (4) Zip ties
Two (2) T-taps
Hardware Kit

Quantity: Two (2)
Warranty: Limited lifetime warranty


COLOR
POWER LEVEL
TRIM
  • Expédition gratuite au Canada sur les commandes de plus de 350$
  • Commande spéciale, habituellement expédiée en 3 à 7 jours ouvrables

Features

  • Adds SAE-compliant fog lights compatible with Ford Mustang 2024.
  • OEM appearance with included custom-designed bezel.
  • Vehicle-specific harness allows for factory-like operation.

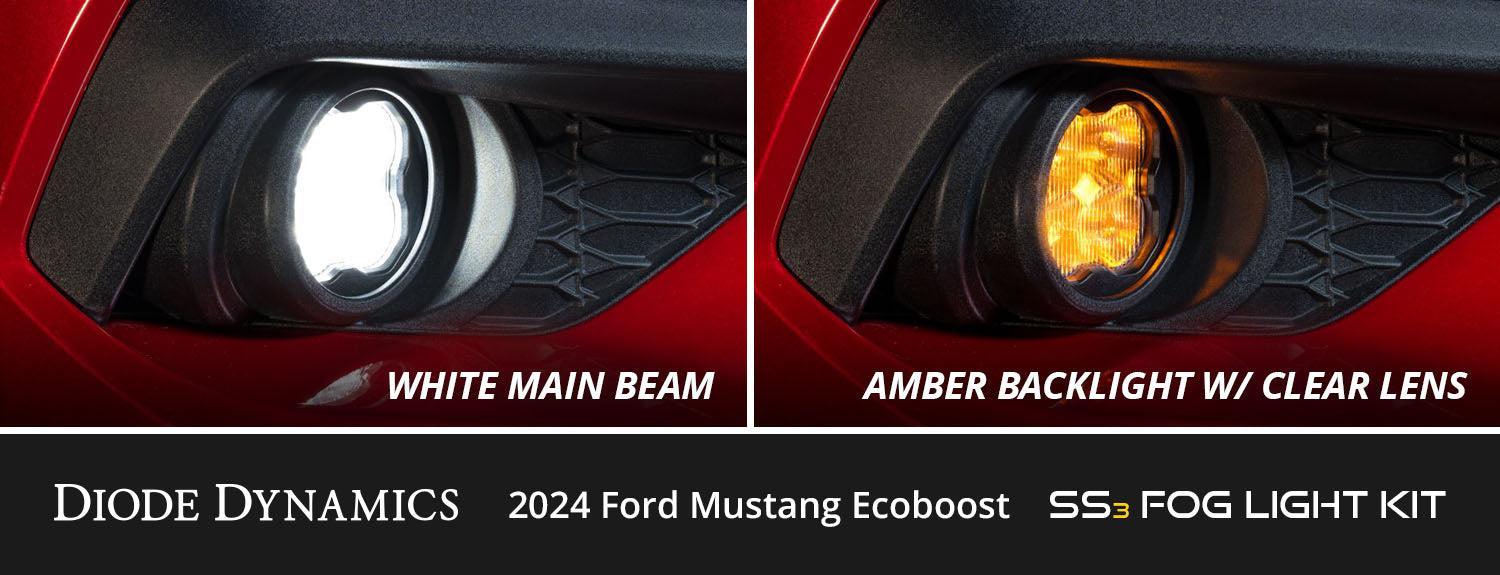

  • Distinctive integrated amber backlight.
  • Engineered and assembled in USA.

Overview

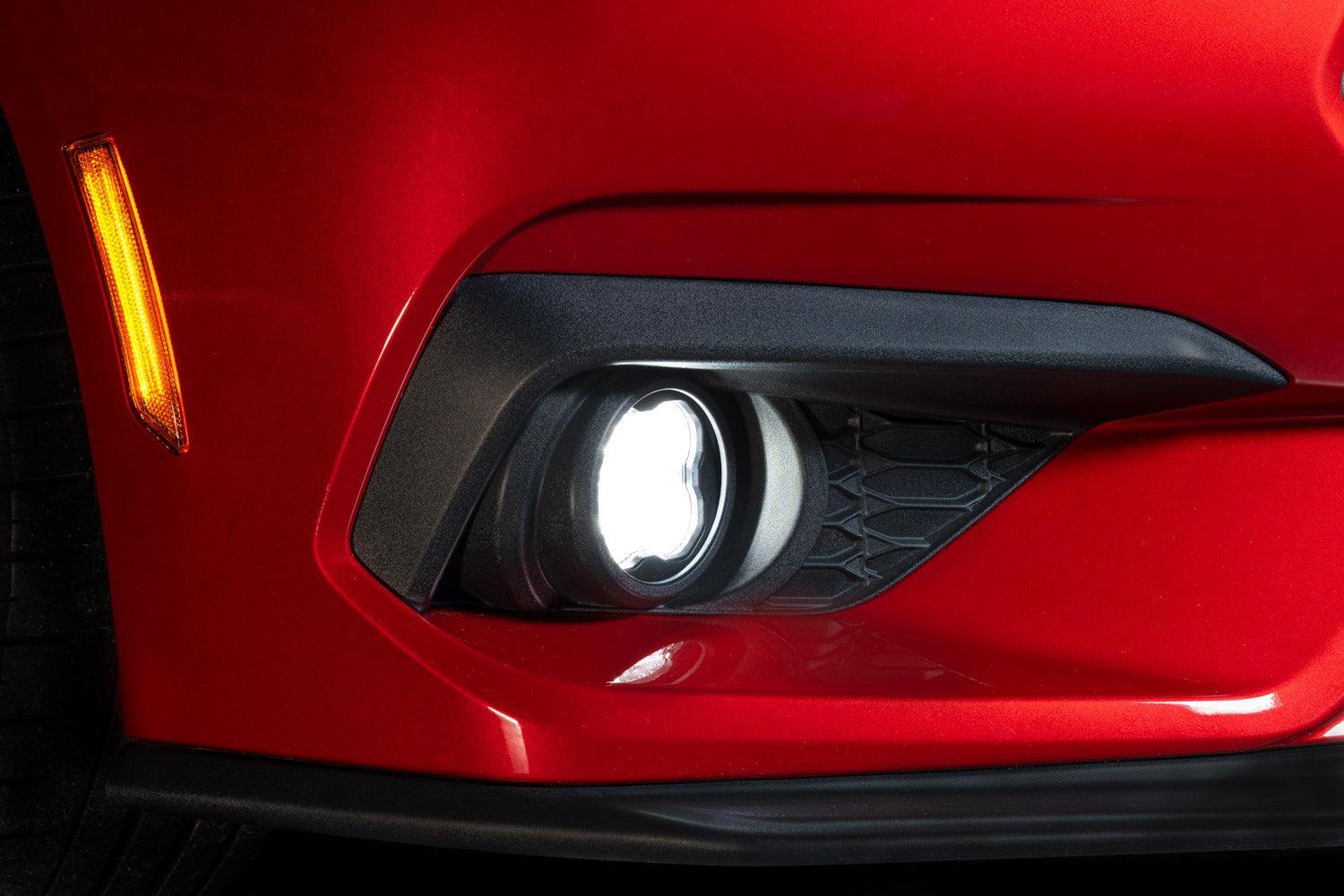

While some vehicles do not come with a factory fog light option there is still a need for light directly in front of the vehicle to increase visibility in foggy dusty snowy or rainy conditions. Headlights simply weren't designed to provide this kind of visibility. Introducing our new Add-On Stage Series Fog Lamp Kit! This kit allows you to mount two SAE-compliant fog pods in the factory bumper while maintaining an OEM appearance thanks to the custom-designed vehicle-specific bezels.

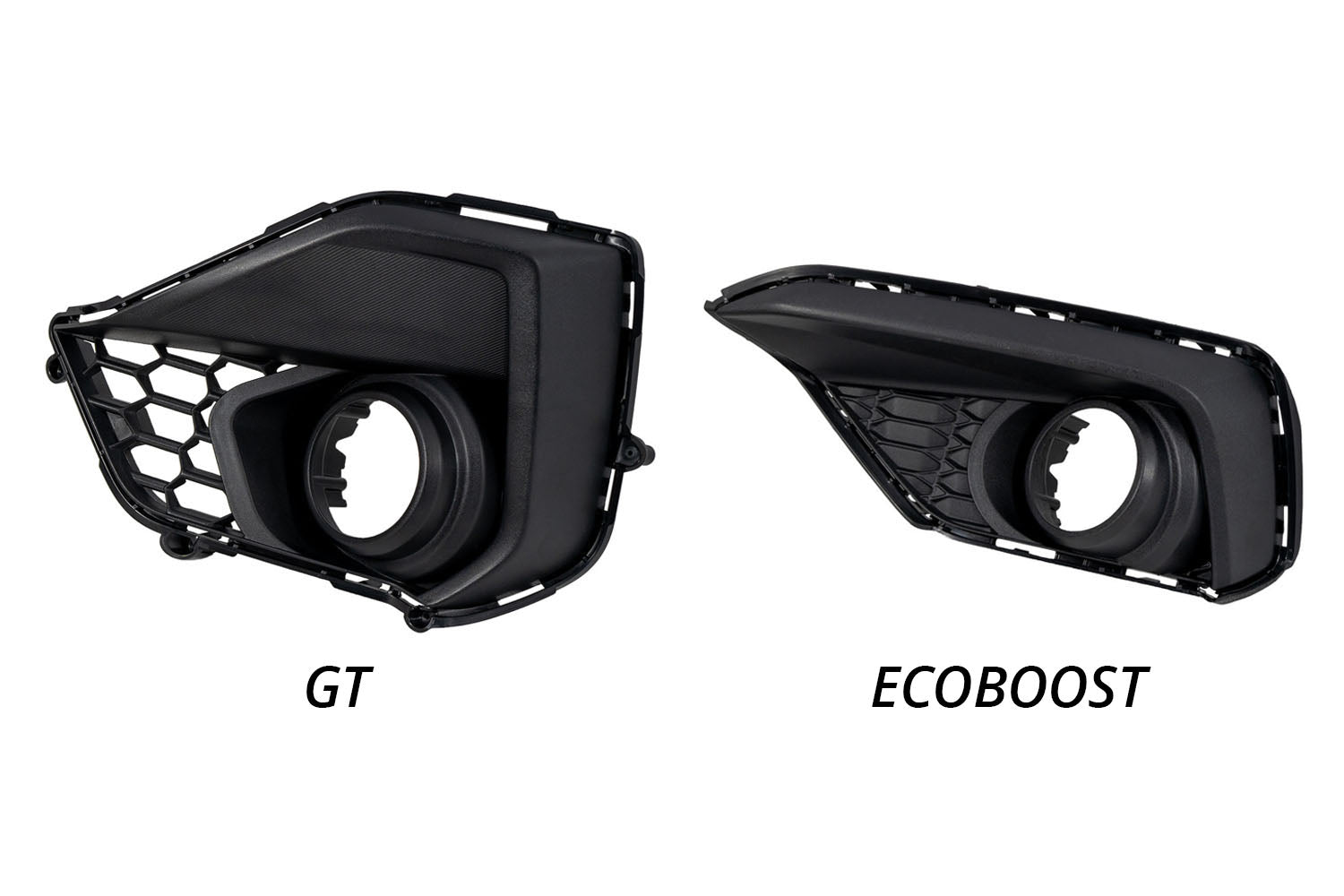

Aggressive Appearance Our team of in-house engineers have designed two unique bezels to fit perfectly into the factory bumper without any cutting or modification. These bezels retain the unique styling of the OEM grilles while the included SS3 LED pods provide a more aggressive appearance. For GT owners we've kept performance in mind ensuring the bezel allows for adequate airflow to the cooling system.

Factory-like Operation. The included harness allows the fog lights to operate automatically just like you'd expect from the factory. By using our vehicle-specific harness the backlight will come on with the parking lights and the main beam will operate just as a factory fog light turning on with the low beams and turning off with the high beams.

Main Beam Power (watts): Sport: 14.5, Pro: 36, Max: 38.5
Backlight Power (watts): 0.4
Main Beam Current (amps @ 12.8V): Sport: 1.1, Pro: 2.7, Max: 3
Backlight Current (amps @ 12.8V): 0.03
Operating Voltage: 9-30V
Beam Angle: Fog, 80°x8°
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES, Cree XP-L HI, Osram Boost HX
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
Cooling: Passive, Pin-Fin heatsink
Compliance Ratings: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern
Intrusion Ratings: IP69K Waterproof, High Pressure
Shipped Weight (lb): 6.6

Fitment
NOTE: This kit is not compatible with the Dark Horse trim level.

Application: Fog Light Make: Ford Model: Mustang Years: 2024, 2025
