SS30 Dual Bumper Lightbar Kit for 2018+ Jeep JL Wrangler/Gladiator Diode Dynamics

Sale price$1,127.00 CAD
/
  • WHAT'S INCLUDED IN THE BOX:
Two (2) Application-specific heavy-duty steel brackets for installation on 2018 and Up Jeep Wrangler/Gladiator
Two (2) Extension brackets
Two (2) SS30 Stage Series 30 Inch Light Bars
One (1) OEM Auxillary Switch Dual-Output Harness
One (1) Heavy Duty Dual-Output Harness
All Necessary Hardware
Installation Guide


COLOR
OPTIC
  • Free shipping within Canada on orders over 150$
  • Special Order Item, Usually Ships Within 3-7 Business Days

Features

  • Direct fitment on 2018+ Jeep Wrangler.
  • CAD-designed for perfect fitment and OEM-like appearance.
  • Designed to eliminate excess wind noise.
  • Highly durable powdercoated steel construction.
  • Utilizes existing mounting points and hardware for a simple installation.
  • Control through factory aux switch bank using the included harness.



Overview

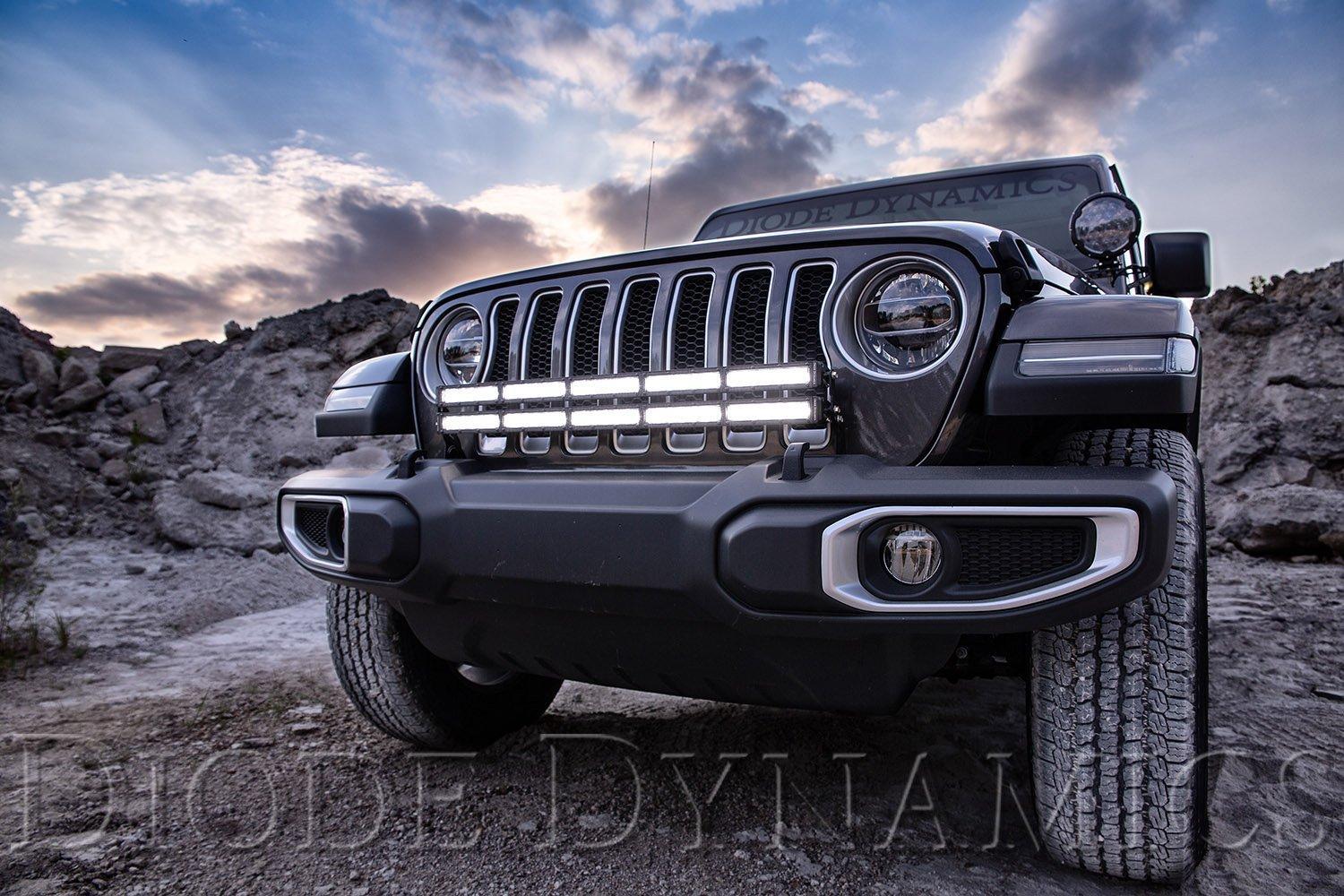

Perfect Fitment.The Bumper LED Light Bar Kit for the 2018+ Jeep Wrangler from Diode Dynamics allows you to mount either a single SS30 Stage Series 30" LED Light Bar or dual Stage Series 30" LED Light Bars on the factory front bumper. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required! A low profile design eliminates whistling or major wind noise you may have experienced with other light bar brackets as well.

Choose your look. This kit can be mounted in different ways to achieve the look you're after! Mount a single light bar using the base brackets, or use the included extension brackets to allow clearance for a winch or mount a second light bar for maximum light output. The brackets, without the light bars or harnesses, are available separately and are compatible with any generic 30" LED light bar.

Control through aux switch bank. Included with the kit is our new OEM aux switch adapter wire. This wire allows you to control your auxiliary lighting using the factory-installed aux switch bank.  For those who don't have the aux switch bank, our Heavy Duty Dual/Single-Output Wiring Harness is also included to mount a switch and connect directly to the battery.

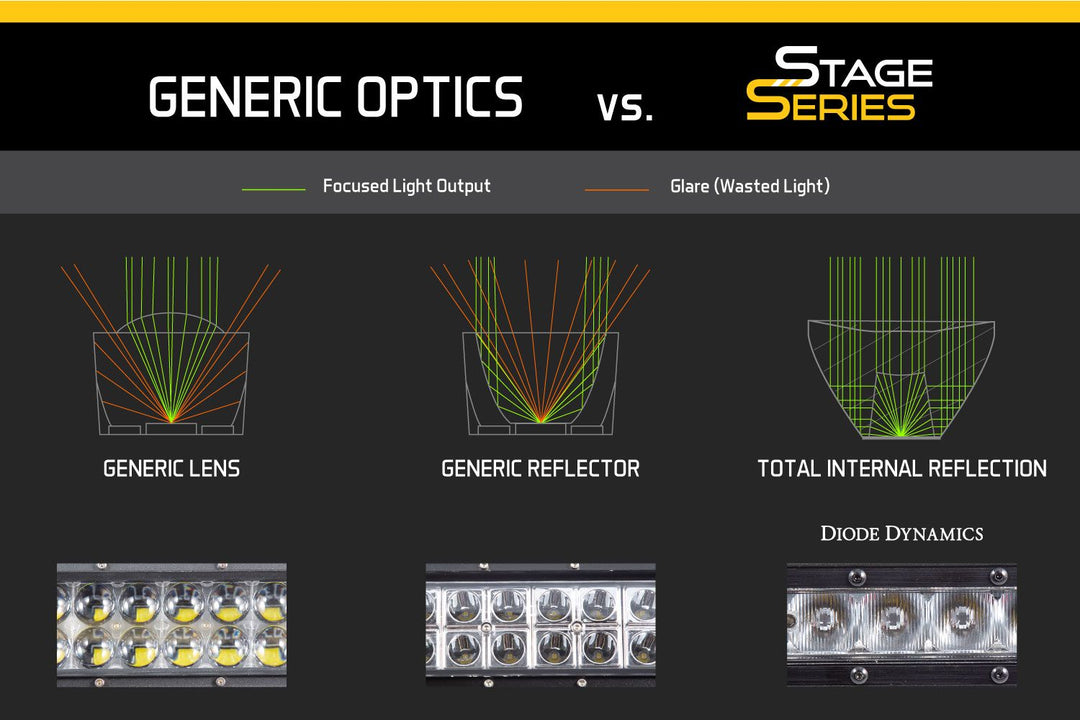

Designed For Performance. Using optical simulation modeling, Diode Dynamics Stage Series LED light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

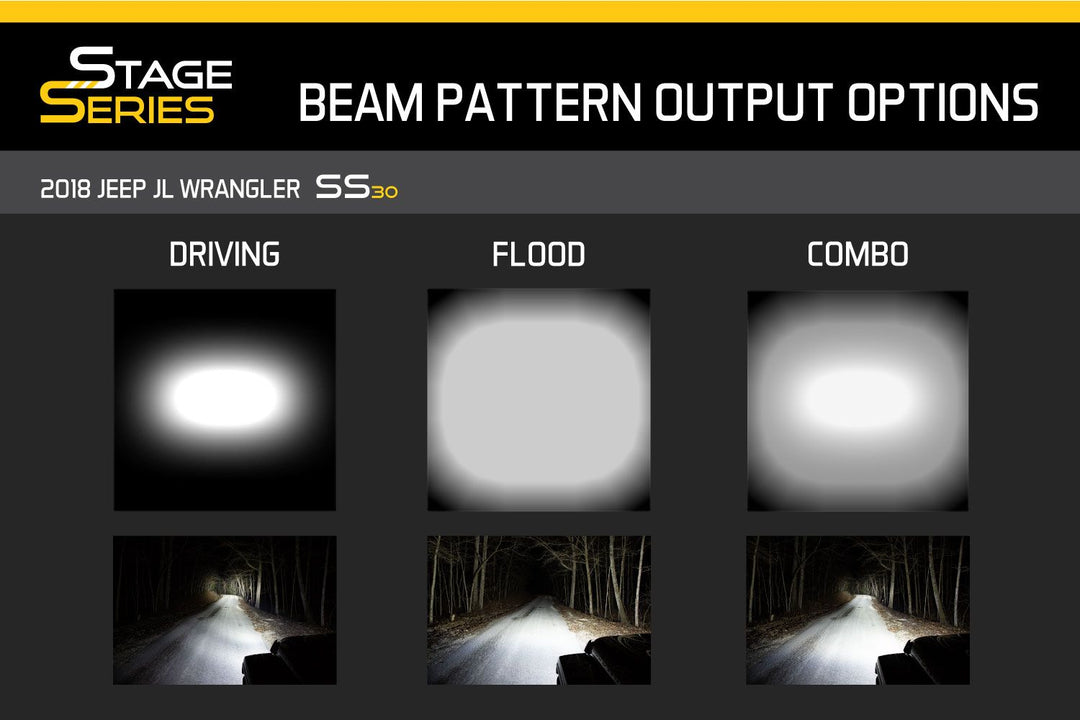

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

The Driving pattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.

The Flood pattern was designed to provide uniform, even illumination and a full 80Wx50H degree spread of light. Unlike generic "flood" light optics that are simply a heavily diffused spot, our flood optic is a true optically designed spread, resulting in the biggest spread in the industry! It is perfect for lighting up anything at low speeds, a backup or reverse light, or to light up a worksite.

The Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 20Wx8H degree pattern while also illuminating area around it in a full 80Wx50H degree spread. The Stage Series 30" Combo Light Bar features three driving lenses in the middle with two flood lenses on the outer edges.



Specifications

LENS COLOR/OPTICS

PEAK BEAM INTENSITY
(CANDELA)

ILLUMINANCE
(LUX @ 10M)
MEASURED OUTPUT
(LUMENS)
RAW OUTPUT
(LUMENS)
OUTPUT COLOR

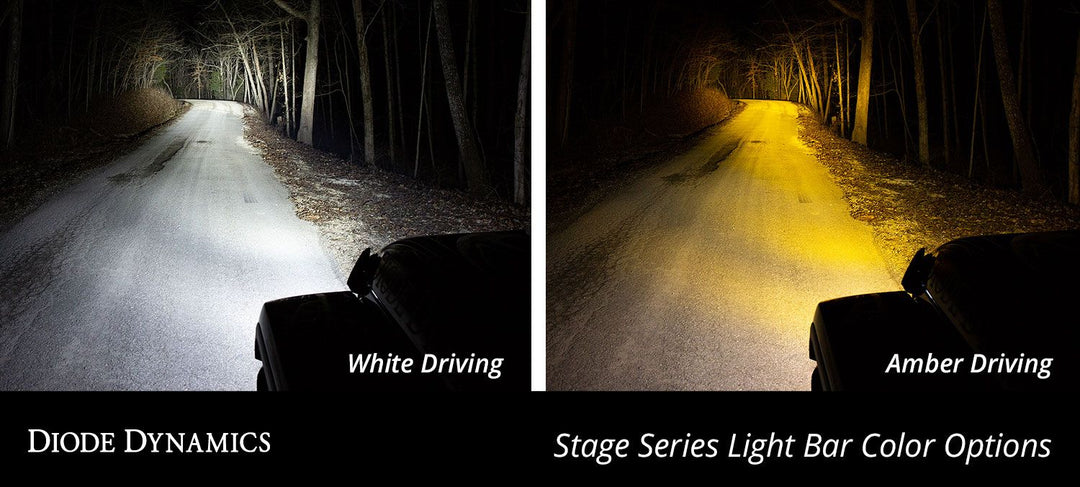

White Driving 275,000 cd 2,750 lux 7,000 lm 11,400 lm 6000K White
White Combo 217,000 cd 1,690 lux 7,000 lm 11,400 lm 6000K White
White Flood 10,000 cd 100 lux 7,000 lm 11,400 lm 6000K White
Amber Driving 165,000 cd 1,650 lux 4,000 lm 5,700 lm 2000K Amber
Amber Combo 113,800 cd 1,014 lux 4,000 lm 5,700 lm 2000K Amber

      Specifications

      Color Temp (CCT): 2000K, 6000K
      Beam Angle: Driving, 20 Degree x8 Degree, Combo (Driving and Flood), Flood, 80 Degree x50 Degree
      Power (watts): 137.2
      Operating Voltage: 9-16V
      Current (amps at 13.2V): 9.8
      Bracket Thickness: 12 ga
      Polarity: Polarity Specific
      Operating Temperature: -40C to 85C (-40F to 185F)
      LED Emitter: Luxeon Z ES
      Connector(s): Deutsch DT Input
      Materials: Aluminum PCB
      Cooling: Passive, heatsink

      Fitment
      This Lightbar Kit is compatible with all Sport, Sport S, Sahara, and Rubicon trim levels
      Make: Jeep
      Model: Wrangler
      Years: 2018, 2019, 2020, 2021, 2022, 2023, 2024
      Electrical Compatibility: No electrical issues (tested and confirmed)
