SS30 Single Stealth Lightbar Kit for 2014-2019 Toyota 4Runner Diode Dynamics

Sale price$740.00 CAD
/
  • WHAT'S INCLUDED IN THE BOX:

Two (2) application-specific SS30 brackets for installation on the 2014-2019 Toyota 4Runner
One (1) or Two (2) SS30 Stage Series lightbar(s)
One (1) heavy-duty dual output offroad wiring harness or One (1) heavy-duty single output 2-pin offroad wiring harness
One (1) Aux Switch Adapter Wire
Mounting Hardware
Installation Guide

Warranty: 8 year warranty


COLOR
OPTIC
  • Free shipping within Canada on orders over 150$
  • Special Order Item, Usually Ships Within 3-7 Business Days

Features

  • Direct fitment on the 2014-2019 Toyota 4Runner.
  • Allows you to mount one or two 30” light bar(s) in the lower grille opening.
  • CAD-designed for perfect fitment and OEM-like appearance.
  • Utilizes existing mounting points for easy installation - no cutting or drilling required.



Overview

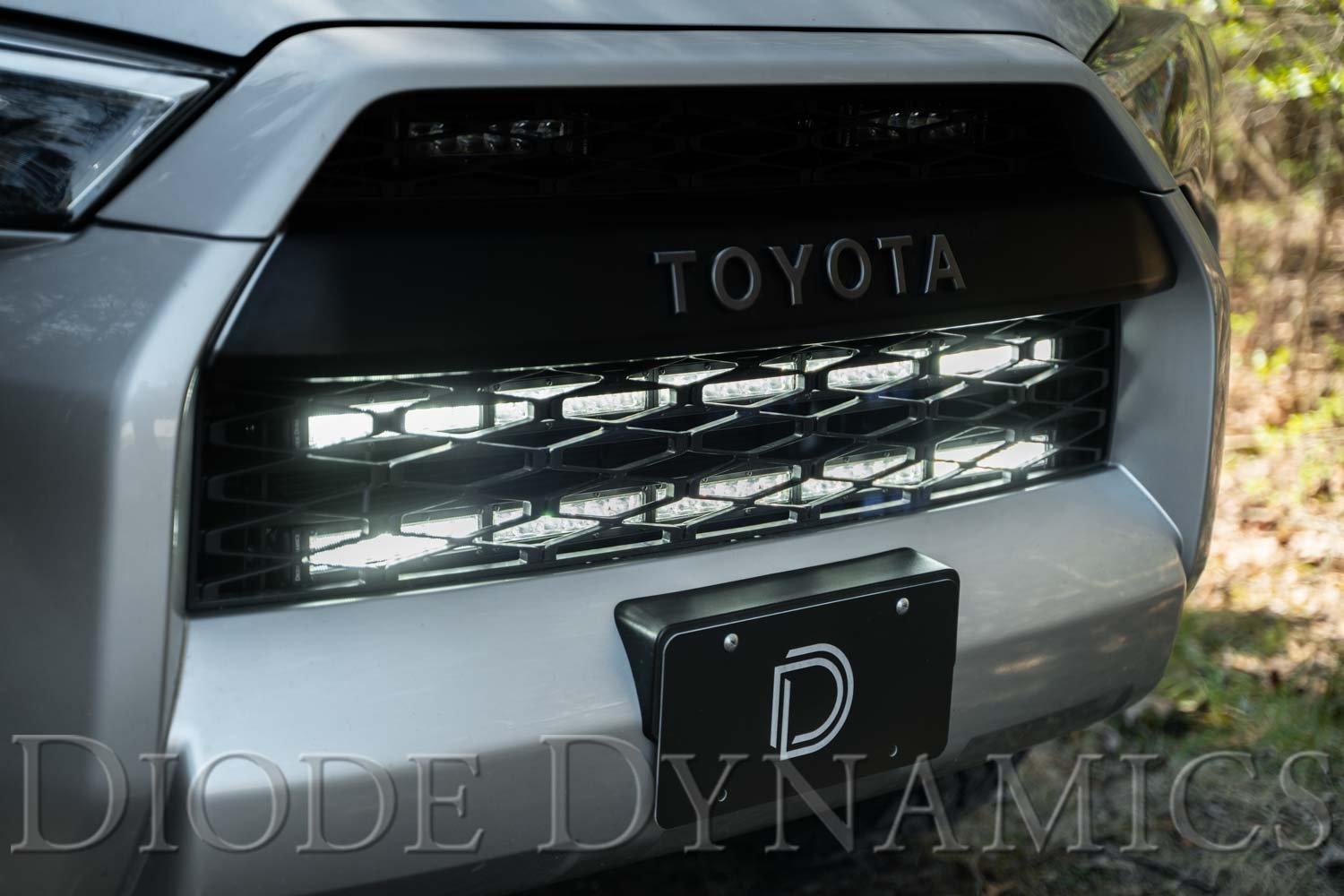

Perfect Fitment. The Stealth LED Lightbar Kit for the 2014-2019 Toyota 4Runner from Diode Dynamics allows you to mount either a single SS30 Stage Series 30" LED Light Bar or dual Stage Series 30" LED Light Bars in the lower grille opening. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required! This kit retains the factory grille for a clean, OEM-like appearance.

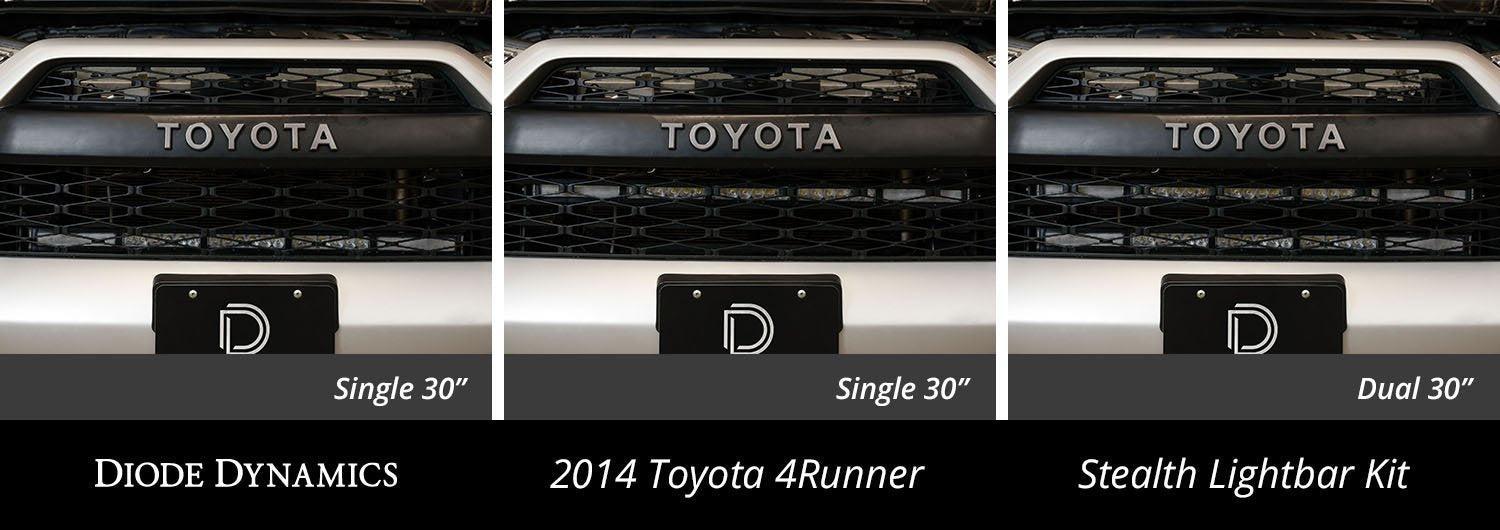

Choose your look. The brackets included with this kit were designed for full customization. They feature multiple mounting holes, so you can mount a single 30” light bar or dual 30” light bars behind your grille and achieve the look you're after.

Designed For Performance. Using optical simulation modeling, Diode Dynamics Stage Series LED light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

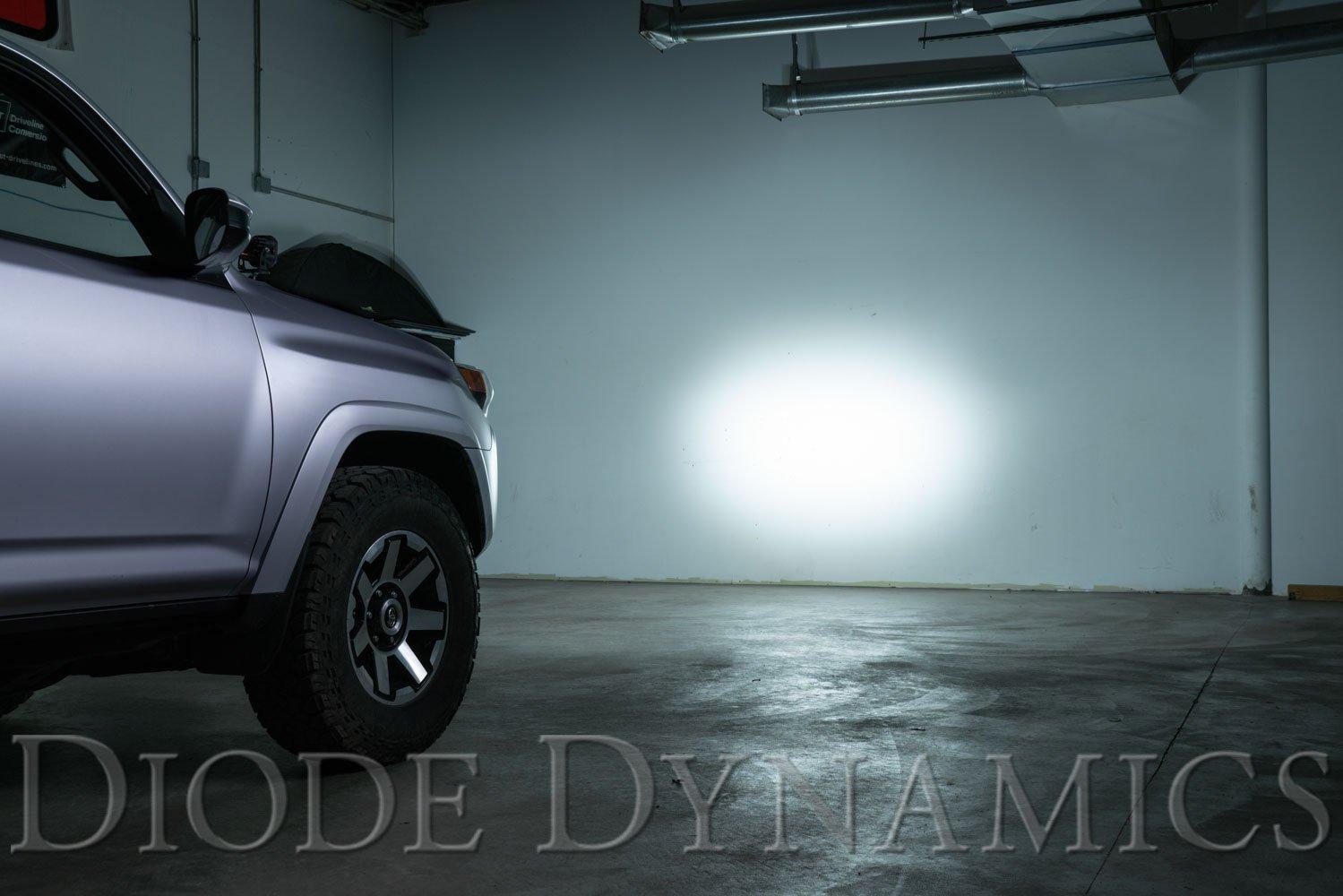

The Driving pattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.

The Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 20Wx8H degree pattern while also illuminating the area around it in a full 80Wx50H degree spread. The Stage Series 30" Combo Light Bar features three driving lenses in the middle with two flood lenses on the outer edges.

Specifications

LENS COLOR/OPTICS

PEAK BEAM INTENSITY
(CANDELA)

ILLUMINANCE
(LUX @ 10M)
MEASURED OUTPUT
(LUMENS)
RAW OUTPUT
(LUMENS)
OUTPUT COLOR
White Driving 275,000 cd 2,750 lux 7,000 lm 11,400 lm 6000K White
White Combo 217,000 cd 1,690 lux 7,000 lm 11,400 lm 6000K White
Amber Driving 165,000 cd 1,650 lux 4,000 lm 5,700 lm 2000K Amber
Amber Combo 113,800 cd 1,014 lux 4,000 lm 5,700 lm 2000K Amber

    Color Temp (CCT): 2000K, 6000K
    Beam Angle: Driving, 20°x8°, Combo (Driving and Flood)
    Power (watts): 137.2
    Operating Voltage: 9-24V
    Current (amps @ 14V): 9.8
    Polarity: Polarity Specific
    Operating Temperature: -40C to 85C (-40F to 185F)
    LED Emitter: Luxeon Z ES
    Connector(s): Deutsch DT Input
    Materials: Aluminum PCB
    Cooling: Passive, heatsink
    Product Dimensions (in): 31x3x1.63

    Fitment

    NOTE: This kit is not compatible with the Limited or Nightshade trim levels.

    Make: Toyota
    Model: 4Runner
    Years: 2014, 2015, 2016, 2017, 2018, 2019
    Electrical Compatibility: No electrical issues (tested and confirmed)
