dd2002

2015-2023 Dodge Challenger Multicolor LED Boards

Regular price$269.00 CAD
/

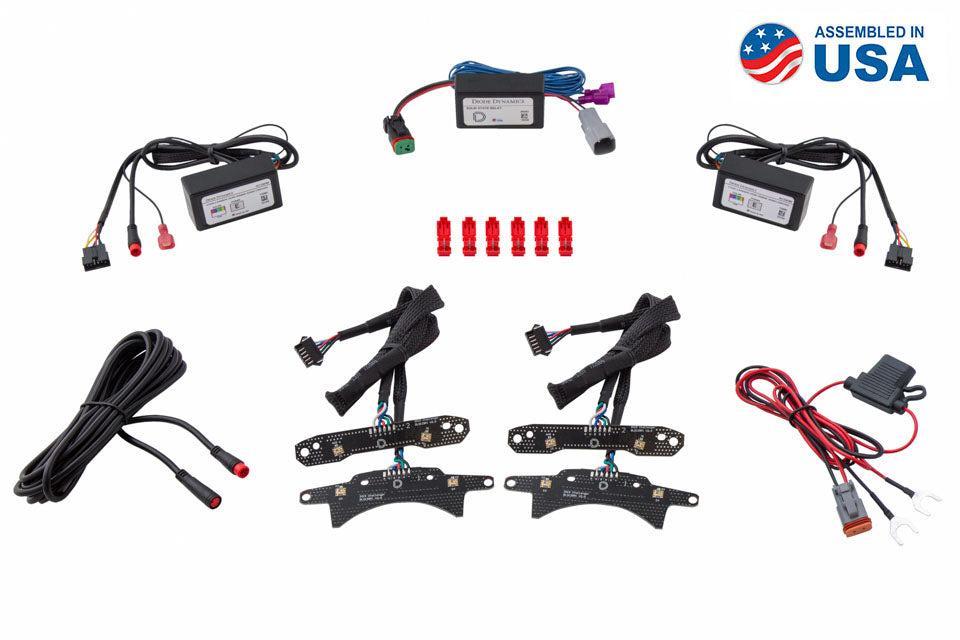

  • WHAT'S INCLUDED IN THE BOX:

Two (2) Multicolor LED Boards for installation in 2015-2023 Dodge Challenger headlights
Two (2) constant current RGBW drivers, fully waterproof
One (1) Solid-State Relay module
One (1) Fused battery connection wire, with T-Taps
One (1) 3M M8 extension wire

An RGBW Controller is required for operation (not included, sold separately).

Warranty: 3 year warranty


  • Free shipping within Canada on orders over 150$
  • Special Order Item, Usually Ships Within 3-7 Business Days

2015-2021 Dodge Challenger Multicolor LED Boards

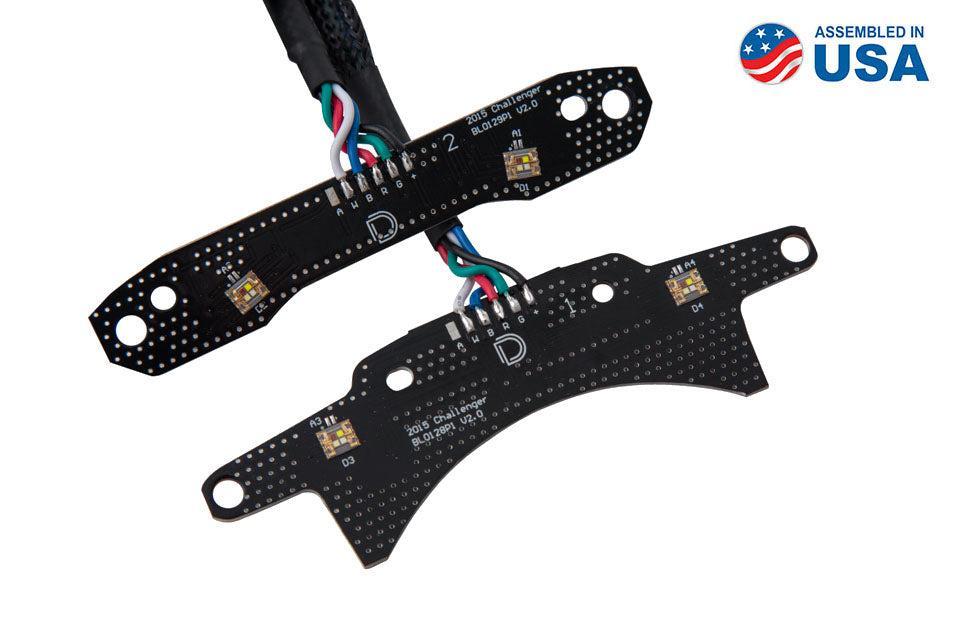

  • Computer-designed LED boards for the 2015-2023 Dodge Challenger headlights
  • Adds full multicolor functionality, plus pure white to factory halo accent
  • Direct replacement for factory LED boards
  • Solid-State Relay included to draw power from battery, while still using factory signals

Overview

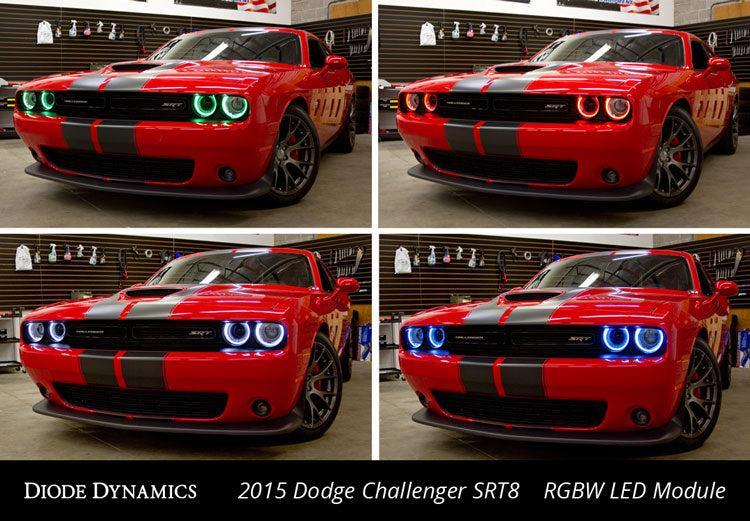

Full RGBW. Full multicolor, with no sacrifice. Convert the white "halo" LED accent inside your Challenger's headlights to illuminate in any color for a unique, custom look. Unlike other RGB products on the market that produce a mixed white color, our LED boards are RGBW, with independent White LEDs. After you have fun with colors, just select True White for a crisp, clean white output for everyday use.

App control. You can choose any color under the sun, with our Bluetooth RGBW Controller (sold separately) including True White. There's preset patterns too, including strobe, fade, and more. But it's the extras that really make this controller special. Simple features like Preset Colors make it easy to use, and fun features like Camera Match and Music Sync make it fun to show off! Don't see a pattern you like? Just program your own, and save it for later! This controller is the most fully-featured in terms of control and features on the market.

Perfect fitment. No need to align and fasten LEDs by hand - this is an OEM-grade solution, with exact fitment, and perfect alignment of the new LEDs. Just remove the factory boards, and ours fit directly in place! Your order includes two sets of LED boards, one for each side of the vehicle.

No errors. To drive the high-power LEDs safely, a new constant-current, waterproof, inductive driver is included for each set. Also included is a Solid-State Relay Harness to activate the LEDs from two independent factory signals, without flickering or errors. This custom-designed harness draws power from the battery, while still using your factory signals. We recommend connecting to the parking light and sidemarker signal, so this module lights up when the parking lights or headlights are on. Remember, when you're not showing off, you can set the LEDs to pure white for everyday use.

    Specifications

    An RGBW Controller is required to use this product.

    Operating Voltage: 9-16V
    Operating Temperature: -40C to 85C (-40F to 185F)
    LED Emitter: High-Power Chip Scale Package (CSP)
    Connector(s): M8 Input, T-Tap Inputs
    Driver Features: External, Waterproof, Linear Regulated
    Driver Dimensions: 2.5" x 1.38" x 0.88"
    Materials: FR4 PCB
    Cooling: Passive, no heatsink

    Fitment

    NOTE: These boards are not compatible with aftermarket (non-factory) headlamps.

    Make: Dodge
    Model: Challenger
    Years: 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023
    Electrical Compatibility: No electrical issues (tested and confirmed)
