2013-2018 Dodge Ram Switchback LED Halos Diode Dynamics

Regular price$320.00 CAD
/
  • WHAT'S INCLUDED IN THE BOX:

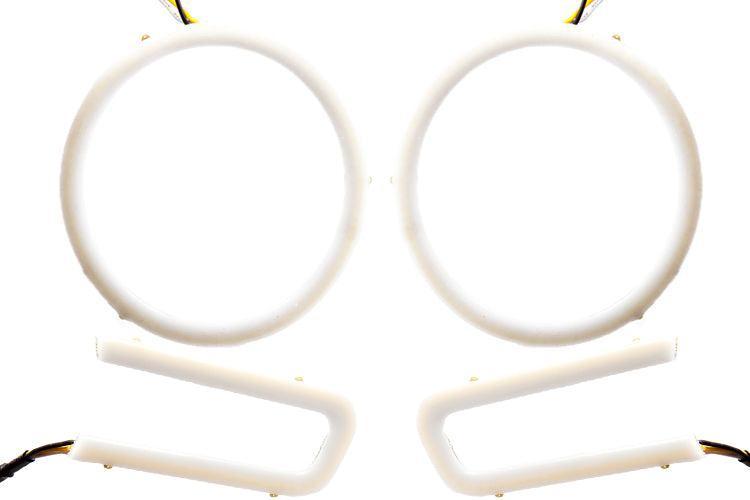

Four (4) custom-shaped LED halos for both sides of the vehicle
Two (2) battery feed waterproof driver units
Two (2) input wire pigtails with T-taps

Installation Guide
Warranty: 3 year warranty


  • Free shipping within Canada on orders over 150$
  • Special Order Item, Usually Ships Within 3-7 Business Days

2013-2018 Dodge Ram Switchback LED Halos

  • Computer-designed LED halos, for perfect fitment in Dodge Ram headlamps
  • Huge increase in brightness, with pure white and brilliant amber output
  • Assembled in the USA

Overview

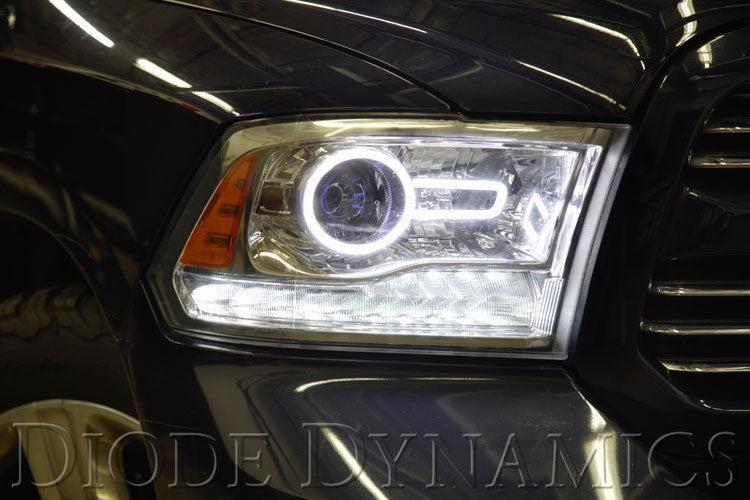

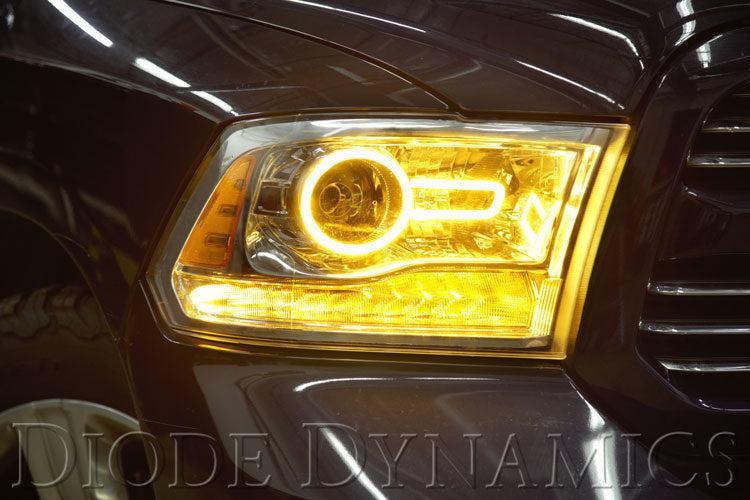

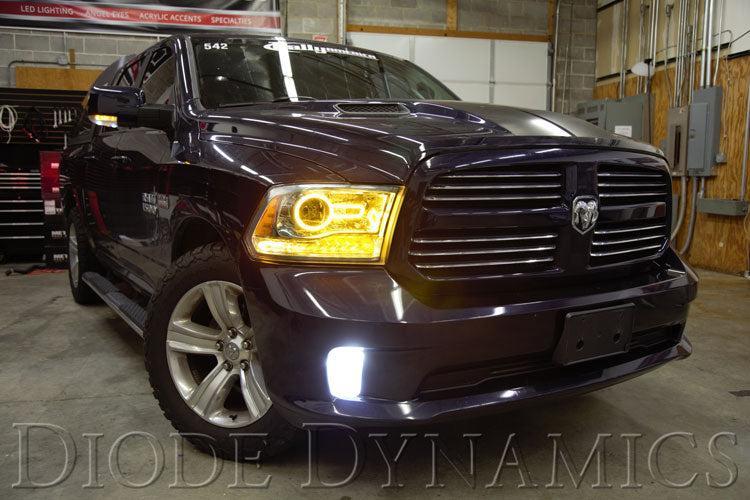

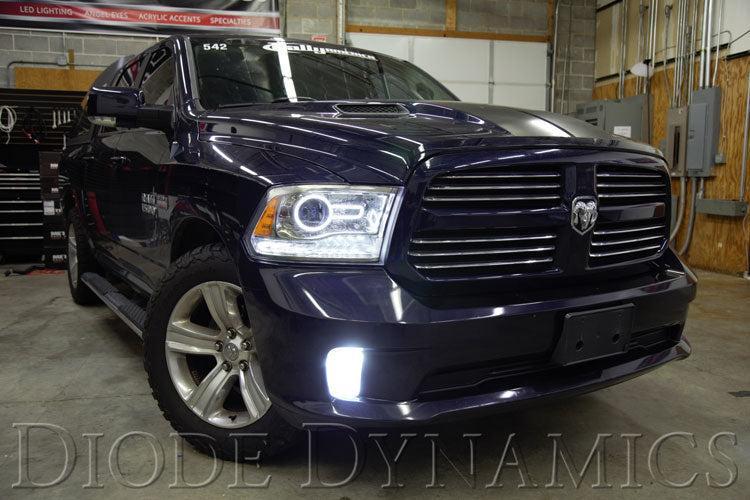

Time for an upgrade!  This halo kit, designed specifically for projector-style headlights on the 2013-2018 Dodge Ram, includes custom-sized oval rings as well as "C" light accents with multiple functions: extremely bright white for the DRLs, lower-power white for night time use, and a brilliant amber for the turn signals. It will add a distinct, unique look to your vehicle both day and night!

High output, clean appearance. The custom-designed LED modules replace the factory bulb or single LED, illuminating with a much higher intensity. With our proprietary high-density "HDLED" technology, these modules are populated with over 500 LED chips, which are then coated by a diffusing gel, resulting in a perfectly uniform light when turned on. When it's off, the diffusing gel hides the chips, resulting in a clean, OEM appearance.

Pure white color. Assembled in USA, the modules light in a pure 6000K white color, not a cool blue like cheaper products on the market. And because they use modern high-power amber chips, rather than traditional LEDs, the amber is even brighter than the white!

Constant-current power. To power the modules efficiently, your order includes two custom-designed drivers, which feature transient voltage suppression, reverse protection, and a switching driver for extremely high reliability over time. And here's what really makes this product shine over the competition: with an embedded microcontroller, the drivers utilize multi-stage PWM dimming, to allow for a half-brightness white, for use at night (parking lights), as well as a full-power white, for use as DRL during the day. Finally, the amber is run at even higher power, making the turn signal easily visible in broad daylight!

Professional installation is strongly recommended, as the factory headlights must be opened for installation. The halos must be custom-mounted in position using adhesive or beading wire.

    Specifications

    Measured Lumens: 725 (Amber Turn Signal)
    Power (watts): 11.7
    Operating Voltage: 9-16V
    Current (amps @ 13.2V): .905
    Operating Temperature: -40C to 85C (-40F to 185F)
    Connector(s): JST Inline Connectors, T-Tap Inputs
    Driver Features: External, Waterproof, Constant Current
    Materials: FR4 PCB
    Cooling: Passive, no heatsink
    Wire Colors: To make these boards work with factory lighting functions on the truck, we recommend tapping to the following wires.


    Left side (driver side in US):
    Low Power (50% Brightness): White/Dark Blue
    High Power (100% Brightness): White/Yellow if DRL is active, or White/Brown
    Turn Signal: White/Light Green
    Ground: Black
    Data Wire: Tan/Brown

    Right side (passenger side in US):
    Low Power (50% Brightness): White/Tan
    High Power (100% Brightness): White/Dark Blue if DRL is active, or White/Orange
    Turn Signal: White/Tan
    Ground: Black
    Data Wire: Tan/Orange

    Fitment

    NOTE: These halos are also compatible with 2019 Ram Classic models.

    Make: Ram
    Model: truck
    Years: 2013, 2014, 2015, 2016, 2017, 2018 Electrical
    Compatibility: No electrical issues (tested and confirmed)
    DRL Function: Operates at full brightness for DRL
