dd2290

RGBW HD LED Halos for 2018-2023 Jeep JL Wrangler/Gladiator Diode Dynamics

Regular price$269.00 CAD
/

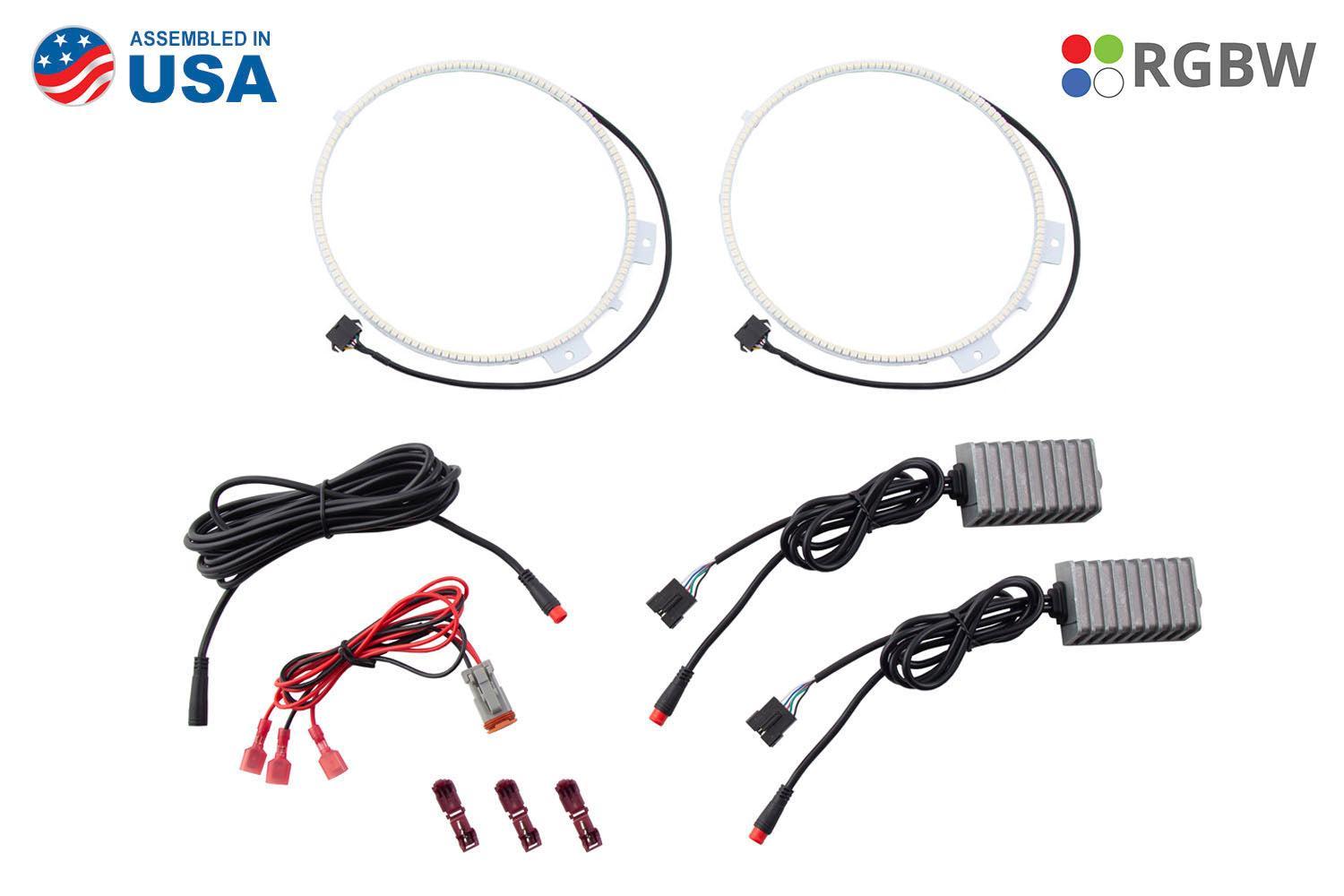

  • WHAT'S INCLUDED IN THE BOX:

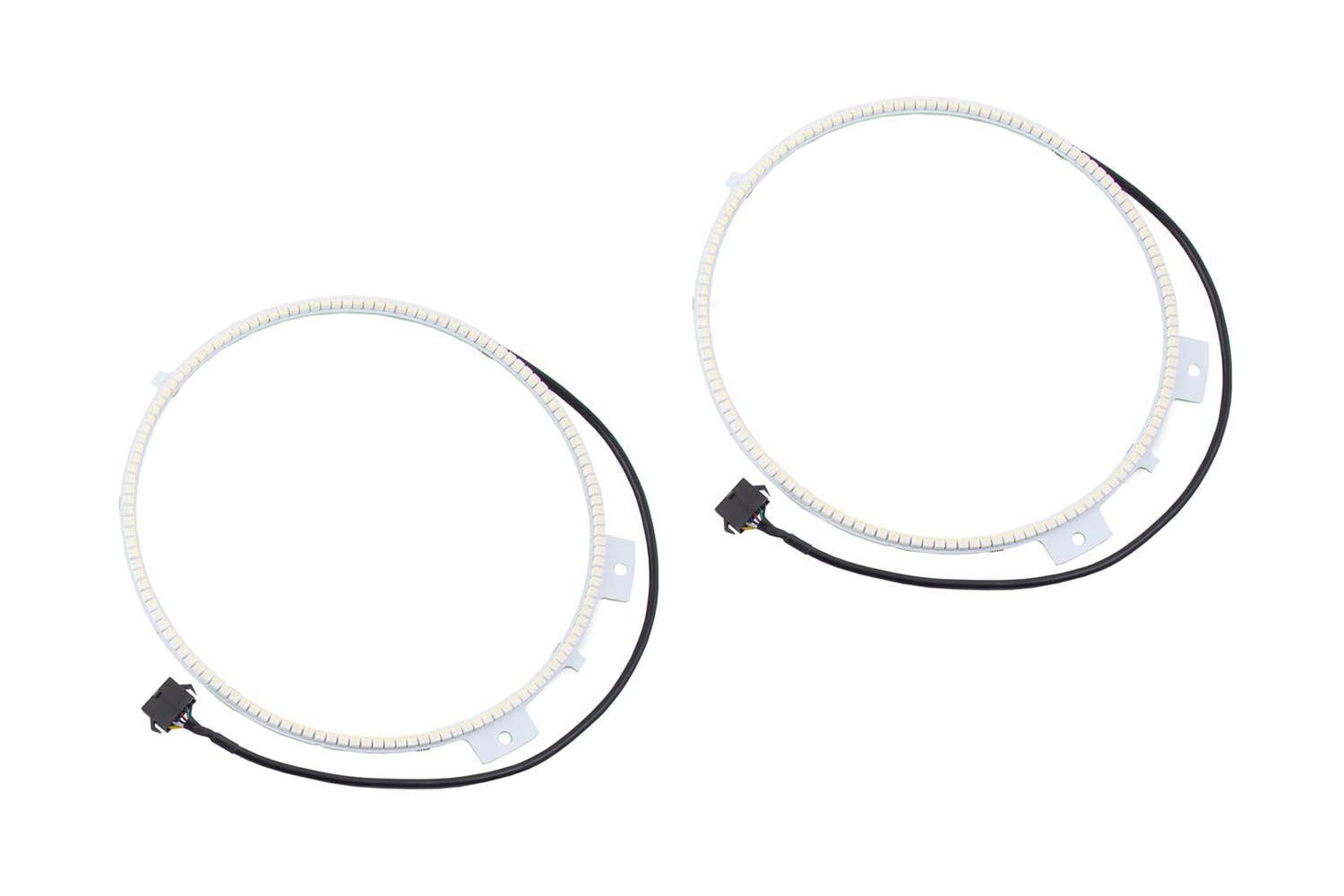

Two (2) application-specific RGBW LED Halos
Two (2) waterproof drivers
One (1) RGBW M8 extension wire
One (1) input wire pigtail with T-taps
Installation guide

An RGBW Controller is required for operation (not included, sold separately).

Quantity: Two (2)
Warranty: 3 year warranty


  • Free shipping within Canada on orders over 150$
  • Special Order Item, Usually Ships Within 3-7 Business Days

Features

    • Adds RGBW multicolor functionality to DRLs.
    • Computer-designed LED Halos for 2018+ Jeep JL Wrangler with premium headlights.
    • Replaces illuminated light pipe inside the headlight.
    • 132 high-power LEDs per halo.
    • Smartphone control with optional Bluetooth Controller.
    • Constant-current, high-power driver modules.
    • Designed and assembled in the USA.



Overview

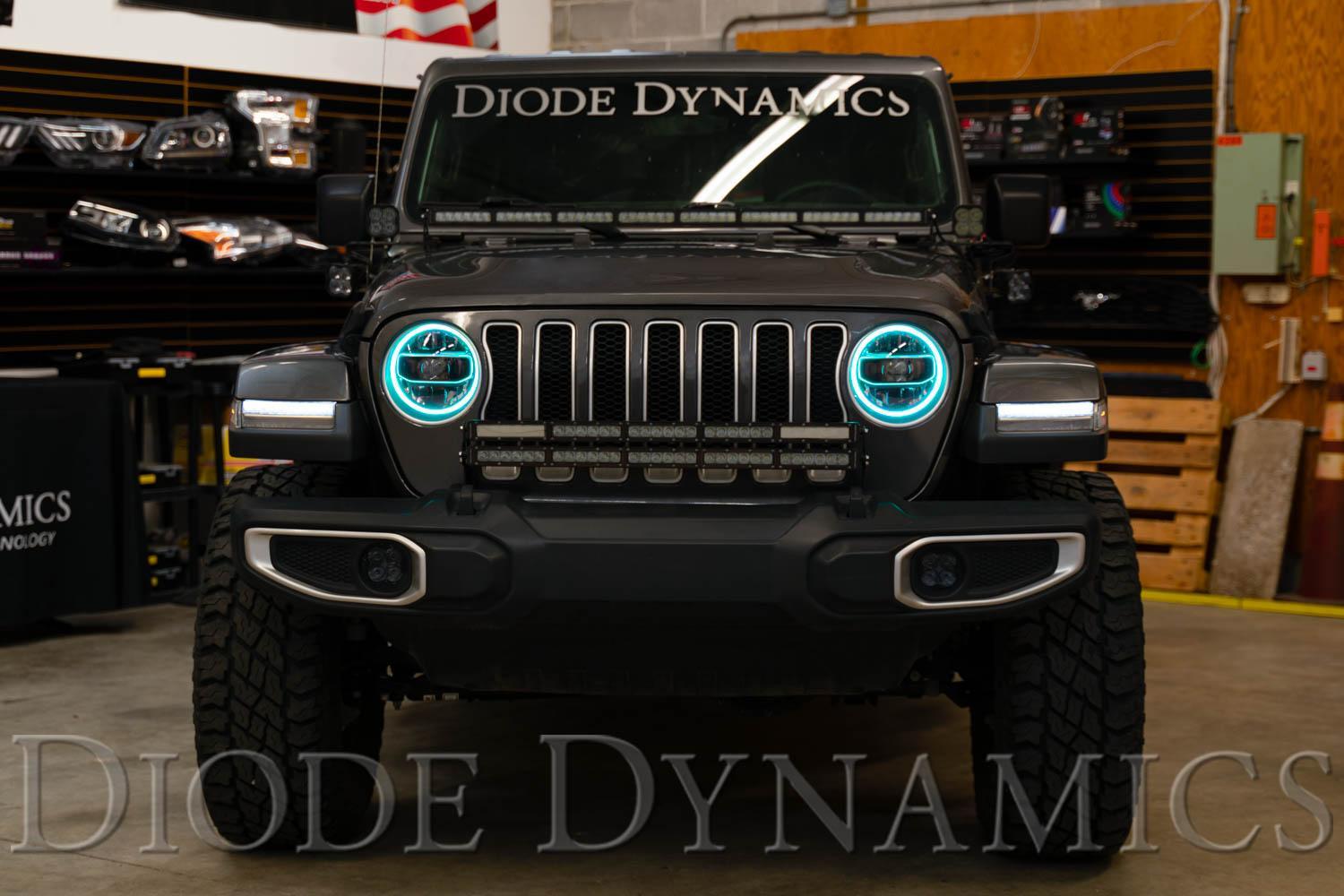

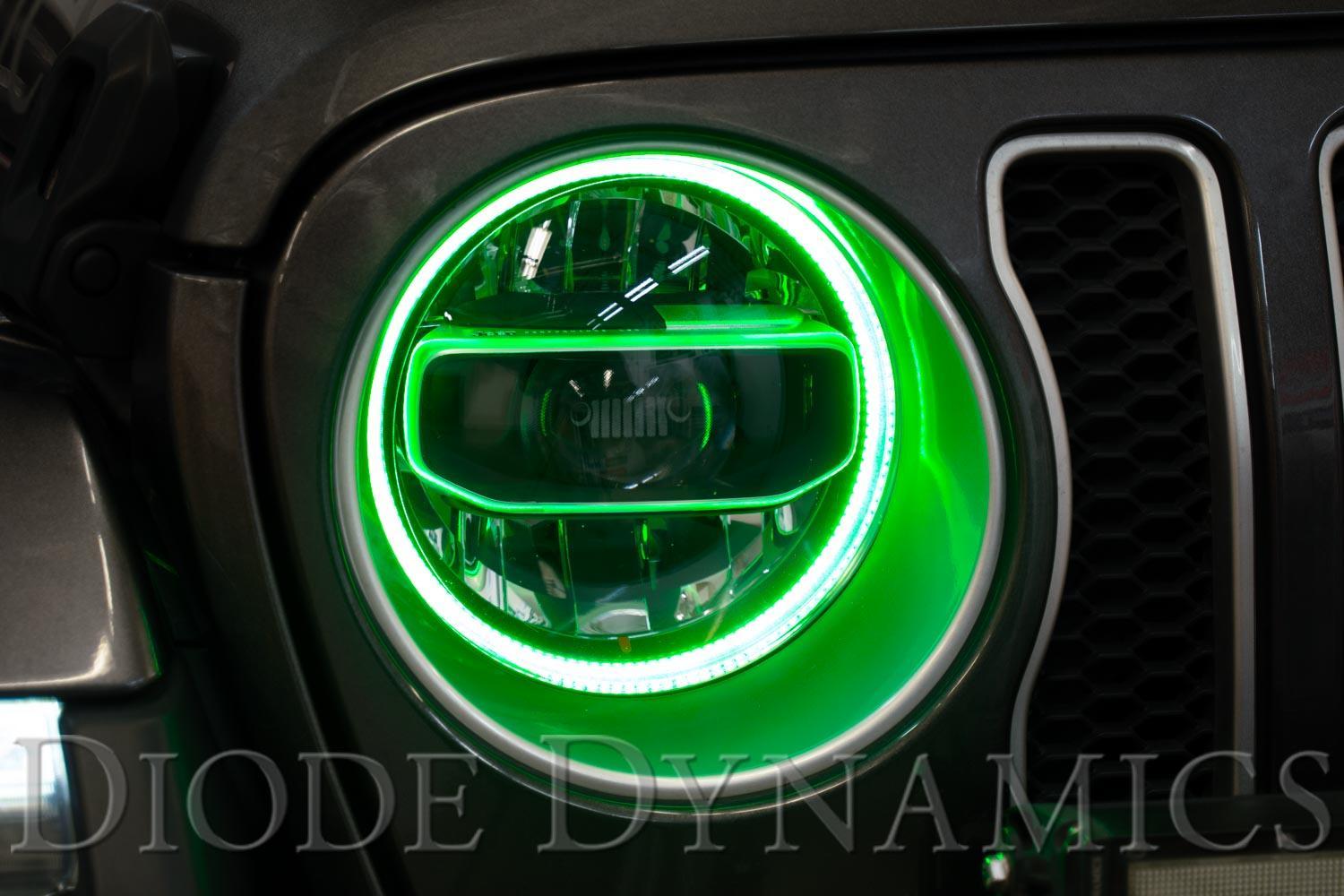

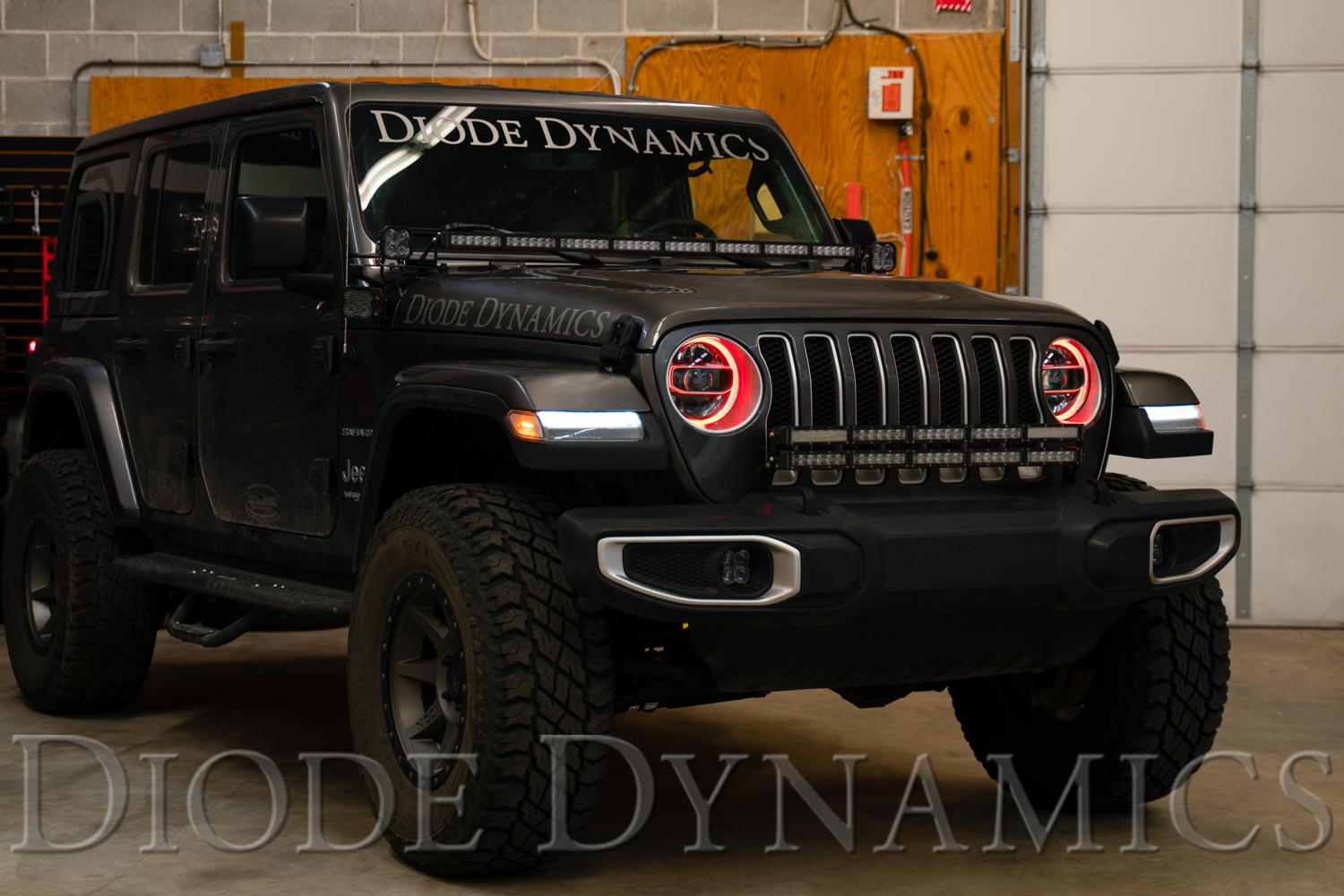

Time for an upgrade! This RGBW halo kit has been designed specifically for the 2018-2023 Jeep JL Wrangler. It includes custom-sized halo rings that will give you full multicolor functionality over your DRLs. These HD LED halo rings have been designed from the ground-up to be absolutely the brightest, most reliable halos physically possible. They will add a distinct, unique look to your Jeep both day and night!

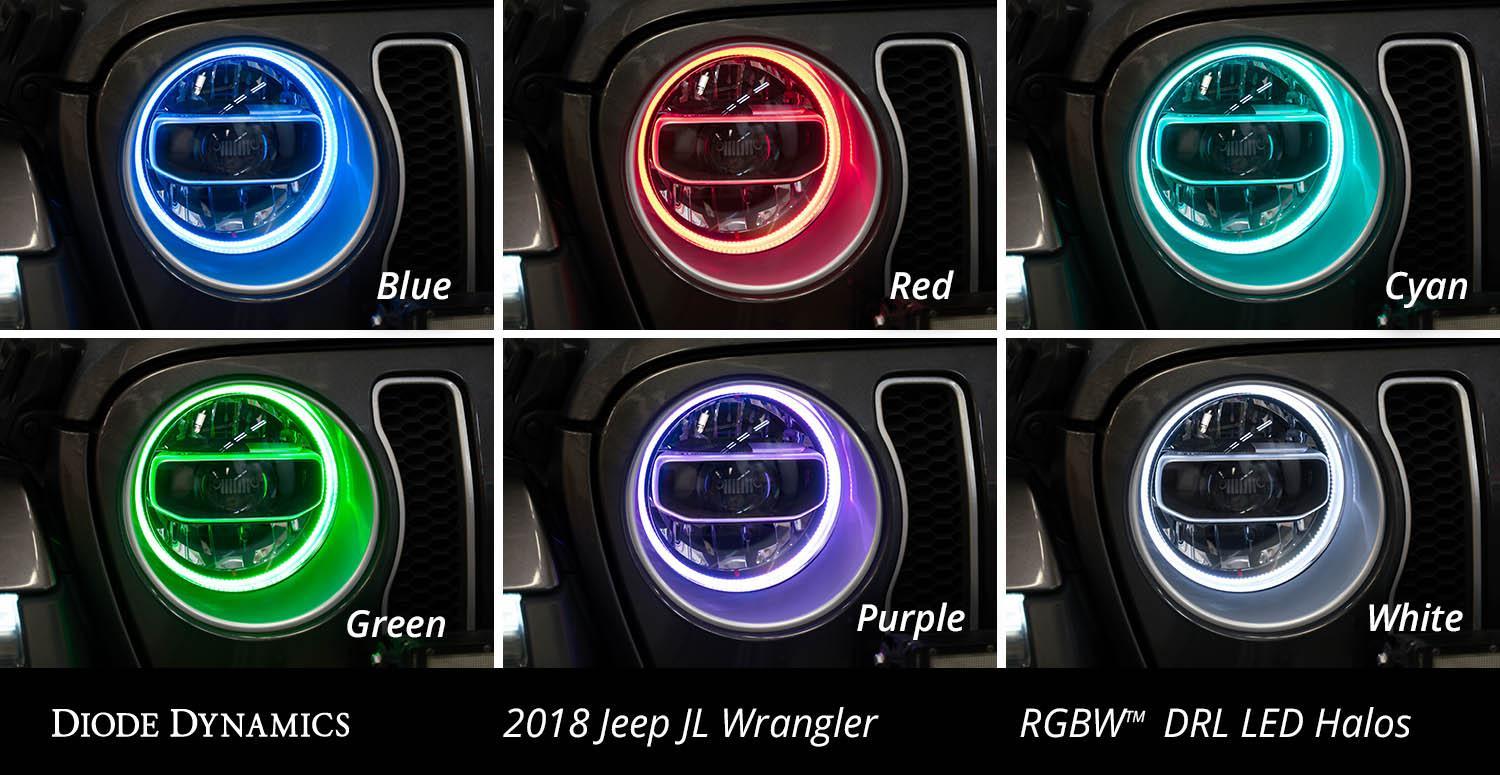

RGBW. This product is not just RGB, it is RGBW! That means there is an extra LED chip that is specifically white in color, right next to the standard red, green, and blue LEDs. By using an RGBW controller, you can activate and control the white chip independently of the colors. This provides a much more uniform, pure, and bright white color than the traditional method of combining all RGB signals so you can keep a clean, factory white appearance for everyday driving.

Wiring. All wires have a durable covering. The LED has a 20-inch wire with a female JST type connector. This connector may be de-pinned in order to run wires through small holes during installation. Both the input and output wire on the driver are also 20 inches each. A pigtail is included that is also 20 inches, with male spade connectors on the end to connect to factory wiring with included T-taps. You will have plenty of room to run wires anywhere you'd like.

Specifications

An RGBW Controller is required to use this product.

Measured Lumens: 535 Power (watts): 6
Operating Voltage: 9-16V
Current (amps @ 13.2V): 0.44
Operating Temperature: -40C to 85C (-40F to 185F)
Connector(s): JST Inline Connectors, M8 Input, T-Tap Inputs
Driver Features: Waterproof
Compliance Ratings: SAE J575 Durability Test

Wire Colors: To make these boards work with factory lighting functions on the JL Wrangler, we recommend tapping to the following wires.


Left side (driver side in US):

Sport
Headlight Connector:
Low Power (50% Brightness): White/Blue
DRL/Turn Signal Connector:
Parking: White/Brown
Ground: Black

Sahara and Rubicon
Headlight Connector:
Low Power (50% Brightness): White/Blue
DRL/Turn Signal Connector:
DRL: Brown/Blue
Ground: Black

Right side (passenger side in US):

Sport
Headlight Connector:
Low Power (50% Brightness): White/Blue
DRL/Turn Signal Connector:
Parking: White/Brown
Ground: Black

Sahara and Rubicon
Headlight Connector:
Low Power (50% Brightness): White/Blue
DRL/Turn Signal Connector:
DRL: Brown/Blue
Ground: Black

Fitment

NOTE: This product is only compatible with 2018+ Jeep JL Wranglers with premium headlights.

Make: Jeep
Model: JL Wrangler
Years: 2018, 2019, 2020, 2021, 2022, 2023
Electrical Compatibility: No electrical issues (tested and confirmed)
DRL Function: Operates at full brightness for DRL
