SSC1 Stage Series C1 LED Pod Yellow Flush (Pair)

Sale price$210.00 CAD
/

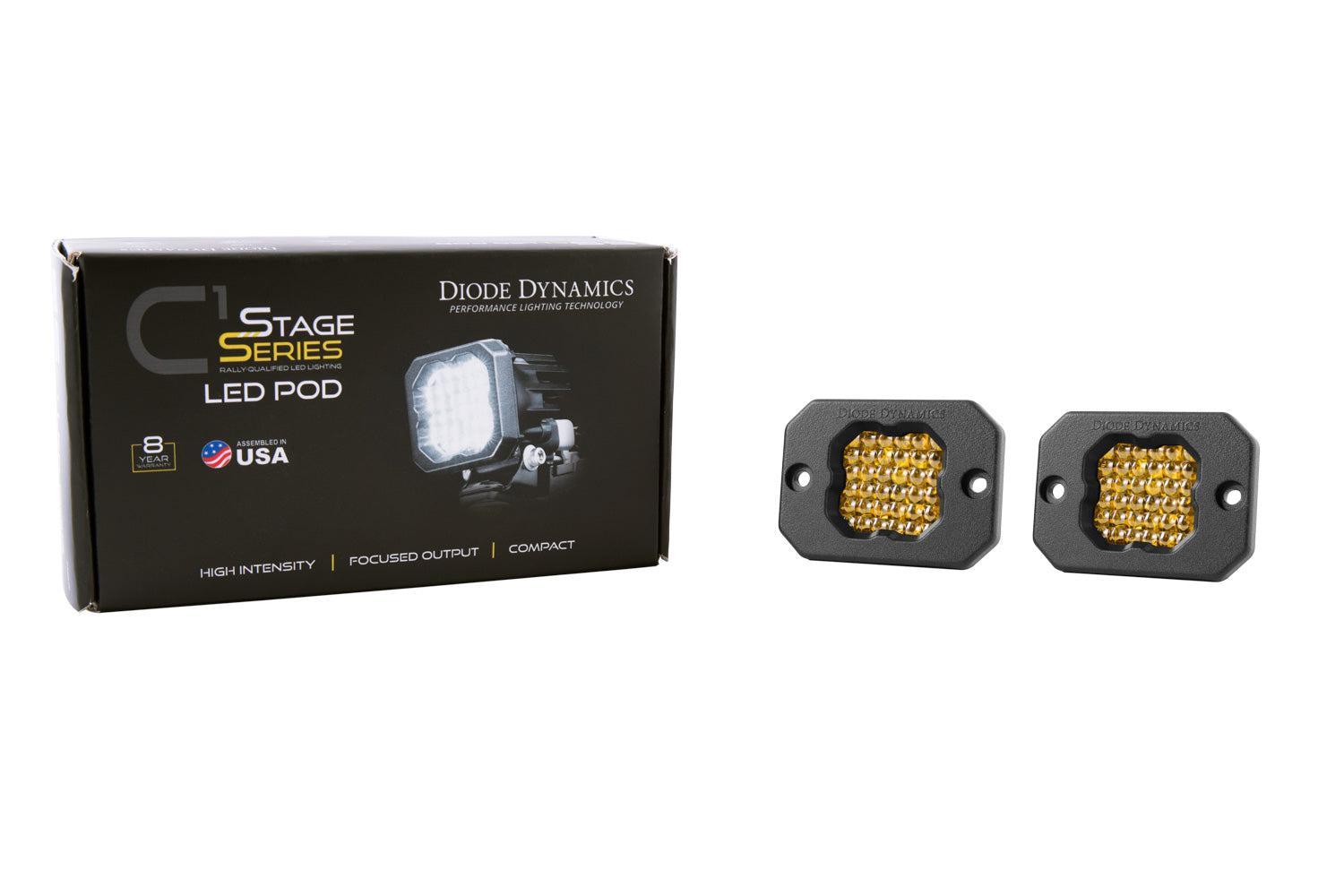

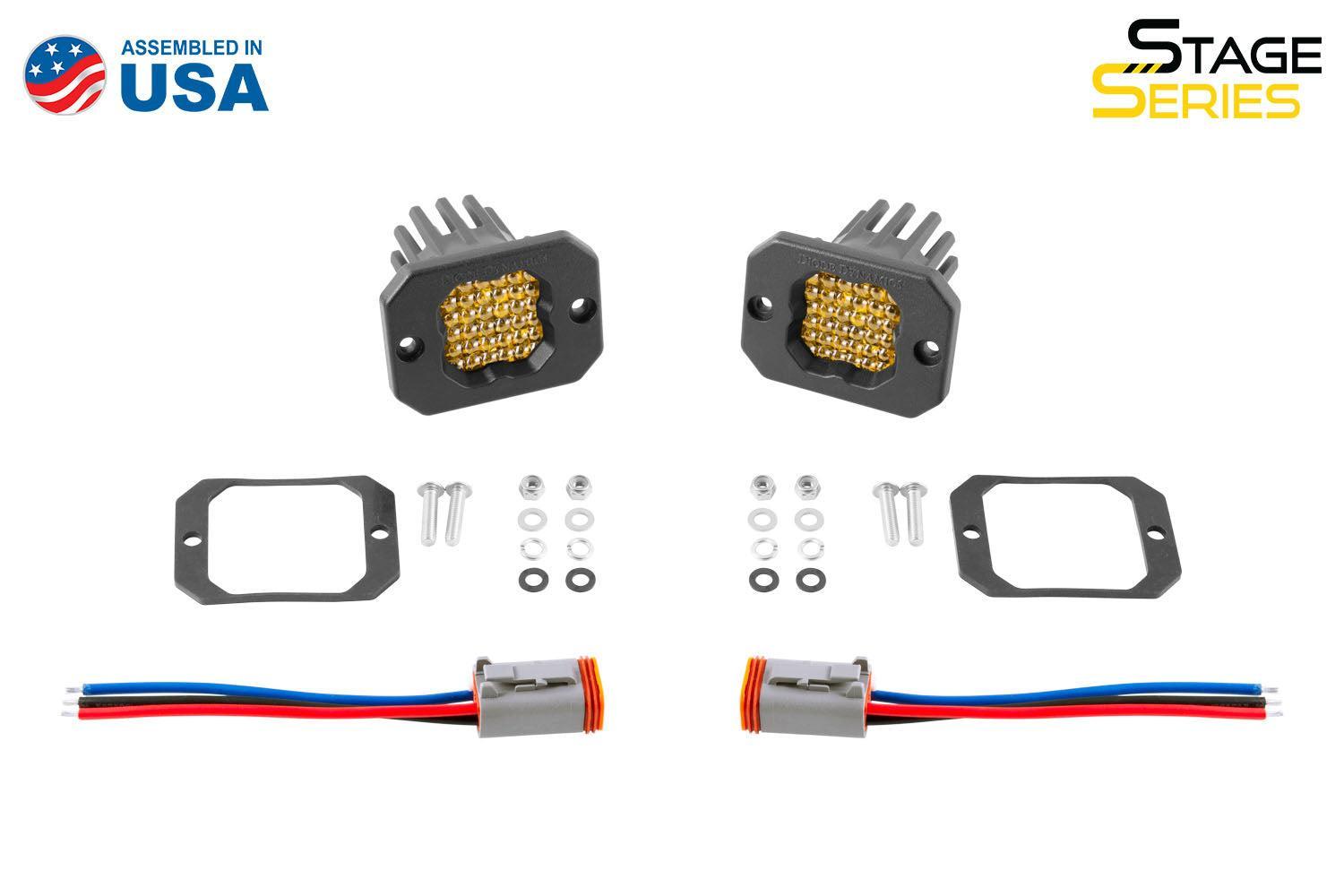

  • WHAT'S INCLUDED IN THE BOX:

Two (2) Stage Series C1 LED Pods
Two (2) Deutsch-style wire pigtails
Two (2) Mounting brackets

Quantity: Two (2)
Warranty: 8 year warranty


POWER LEVEL
OPTIC
BACKLIGHT COLOR
  • Free shipping within Canada on orders over 150$
  • Special Order Item, Usually Ships Within 3-7 Business Days

Features

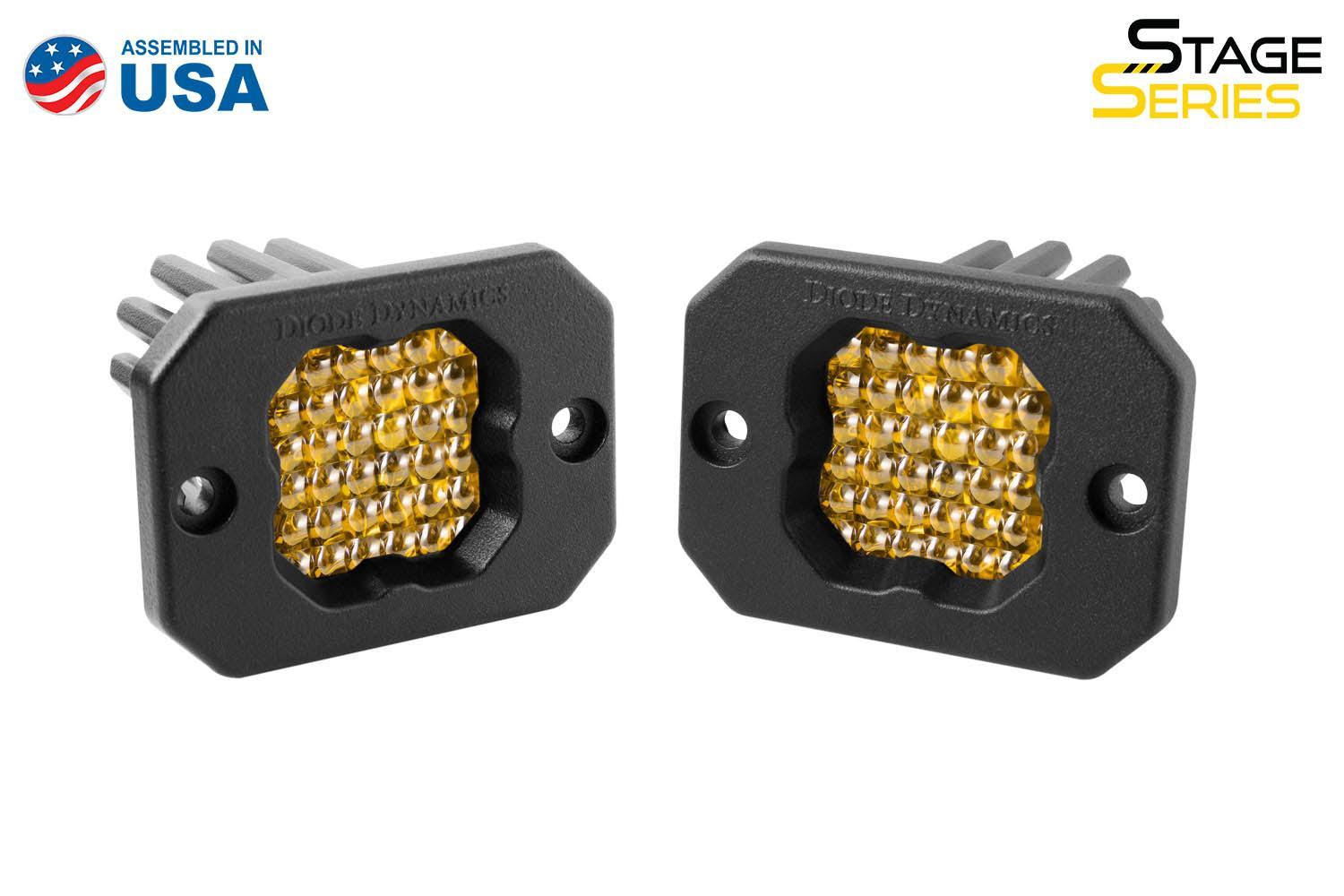

  • Allows for flush installation on bumpers and truck beds
  • Ultra-compact, single-LED form factor
  • High-intensity 10-watt LED chip
  • Backlighting available in amber
  • Pin-fin heatsink design, for superior thermal dissipation
  • Integrated Deutsch-style connector
  • Designed, torture-tested and assembled in USA



Overview

Add LED pods to your bumper, truck bed, or anywhere else you can think of with our Stage Series C1 Flush Mount Pod Kit! Featuring custom-engineered TIR optics combined with a single high-power LED chip, these pods have been designed for maximum performance and light output, in our most compact, versatile package yet. With the included flush mount bezel, the SSC1 Flush Mount Kit has a clean, factory-style appearance once installed and can fit in spots where larger LED pods won't.

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the Stage Series C1 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the Stage Series C1 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SSC1 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

Functional Output. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.

Flood pattern was designed to provide uniform, even illumination with a full 50x50 degree spread of light. Unlike generic "flood" lights that are simply a heavily diffused spotlight, our flood pattern uses pillow optics on the outer lens surface, to provide a true optically designed spread, for even illumination throughout. It is perfect to use as a backup light, scene lighting, or for trailers and roof racks.

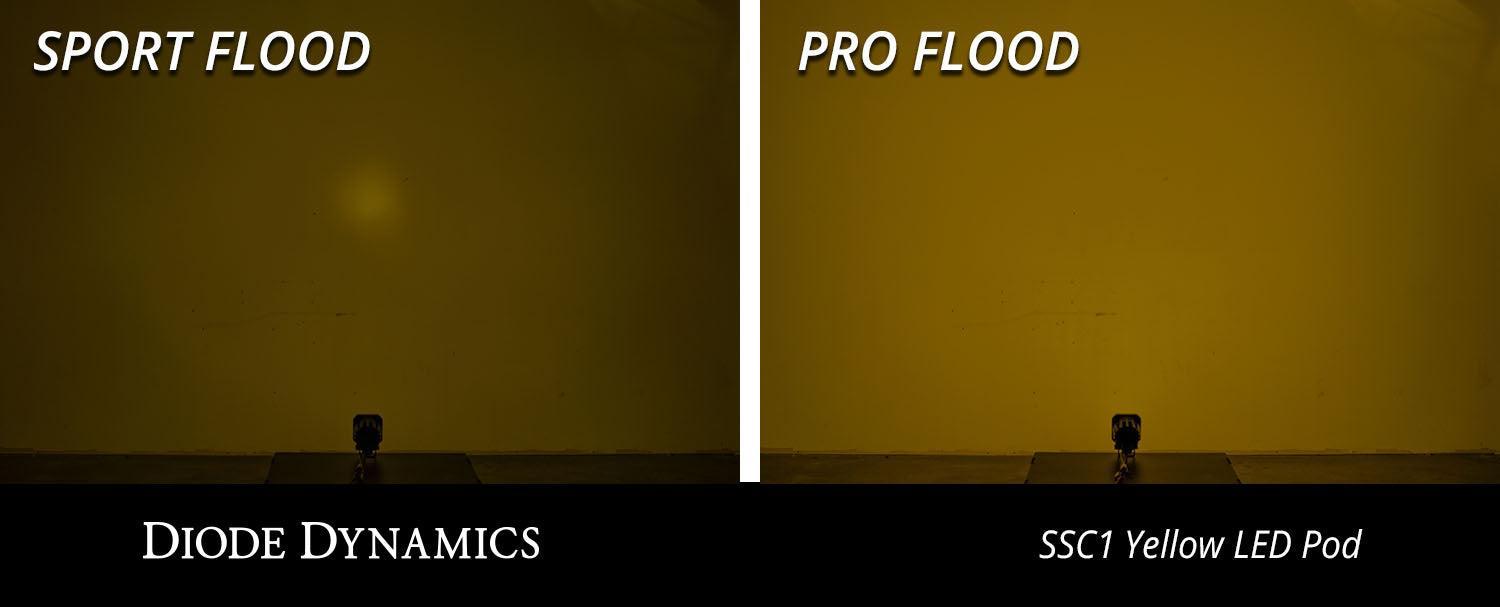

Stage Series C1 Beam Patterns

White or Yellow. All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.

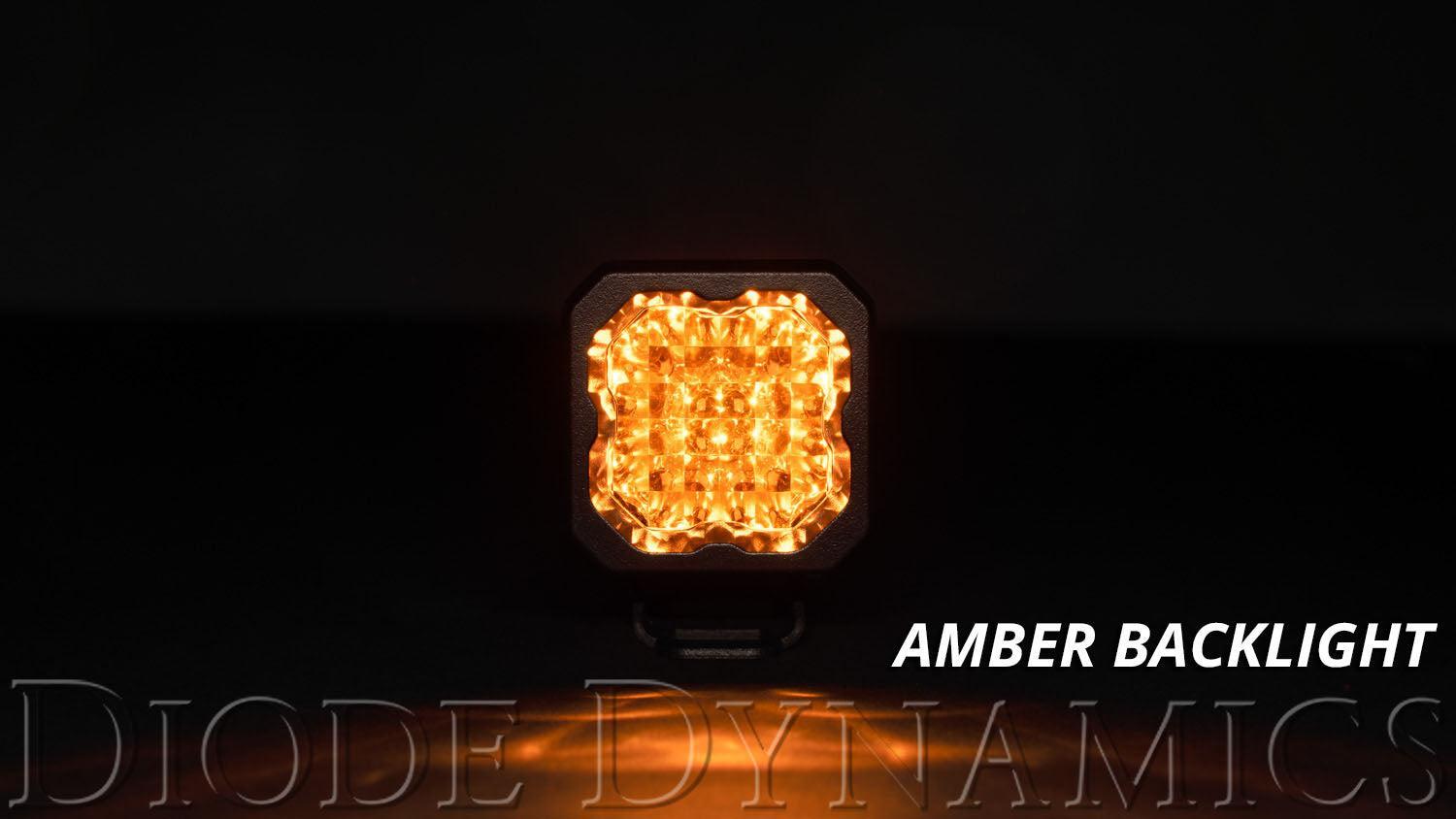

Backlight Functionality. The Stage Series C1 LED Pod includes a distinctive backlight feature, in a crisp amber color. The SSC1's backlight fully illuminates the TIR optic, providing unique accent lighting that you won't find in other single-LED pods on the market. This allows you to double the functionality of your setup, by adding an accent light as well as a main beam!

Interchangeable Lens. Need a different beam pattern or color? You can swap it yourself! We offer replacement lenses that allow you to change the color or optic of your Stage Series C1 Pods.

Sport or Pro. Stage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. However, the Pro option uses a higher amount of total power.

Simple connections. All Stage Series C1 LED pods feature a custom-molded DT type Deutsch-style connector on the back, and come with a 6-inch pigtail with bare leads. For installation, you can wire yourself, use an off-the-shelf Deutsch DT-sized wire harness, or select an optional Diode Dynamics wire harness. Our Light Duty Dual Output 4-Pin Harness can be used to power up to four SSC1 pods.

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Specifications

NOTE: Specifications listed here are for each individual pod.
LENS COLOR/OPTICS

PEAK BEAM INTENSITY
(CANDELA)

ILLUMINANCE
(LUX @ 10M)
MEASURED OUTPUT
(LUMENS)
RAW OUTPUT
(LUMENS)
OUTPUT COLOR
Flood Sport 380 cd 4 lux 1,000 lm 1,305 lm 3000K Yellow
Flood Pro 780 cd 8 lux 2,200 lm 2,375 lm 3000K Yellow

Datasheet(s) (click to download):

    Specification

    NOTE: Specifications listed here are for each individual pod.

    Color Temp (CCT): 3000K
    Power (watts): Main Beam: Sport: 12.8, Pro: 19, Backlight: 0.3
    Operating Voltage: 9-16V
    Current (amps @ 12.8V): Main Beam: Sport: 1, Pro: 1.5, Backlight: 0.024
    Polarity: Polarity Specific
    Operating Temperature: -40C to 85C (-40F to 185F)
    LED Emitter: Sport: Cree XP-L HI, Pro: Cree XHP50
    Connector(s): Deutsch DT Input
    Driver Features: Constant Current
    Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
    Cooling: Passive, Pin-Fin heatsink
    Compliance Ratings: SAE J575 Durability Test
    Intrusion Ratings: IP67 Weatherproof

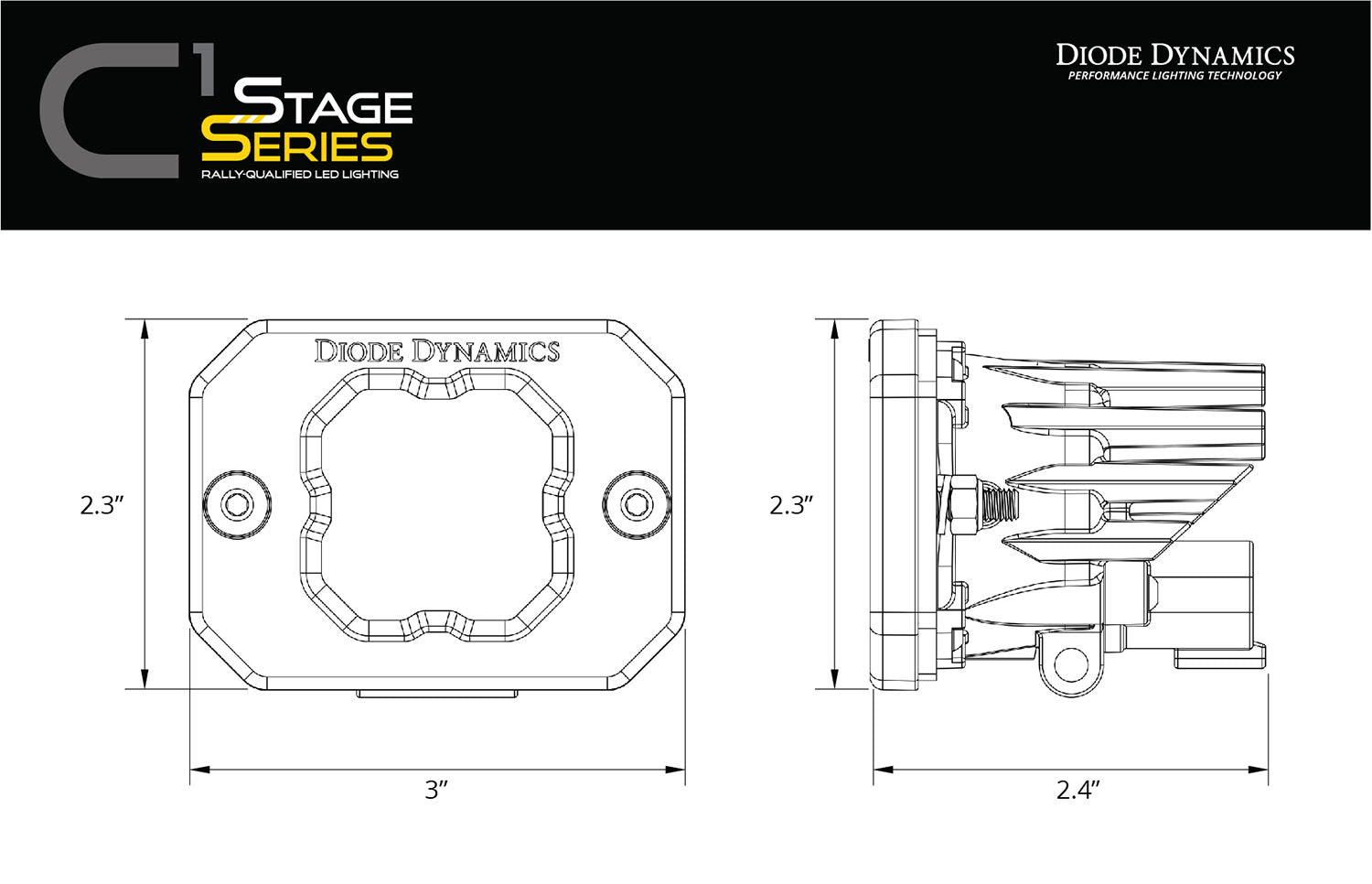

    Product Dimensions (in): 2.3 x 3 x 2.4
    Unit Weight (lb): 0.1
    Product Weight (lb): 0.5

    Add LED pods to your bumper, truck bed, or anywhere else you can think of with our Stage Series C1 Flush Mount Pod Kit!
