SS5 Bumper LED Pod Light Kit for 2017-2020 Ford Raptor

Sale price$591.00 CAD
/
  • WHAT'S INCLUDED IN THE BOX:

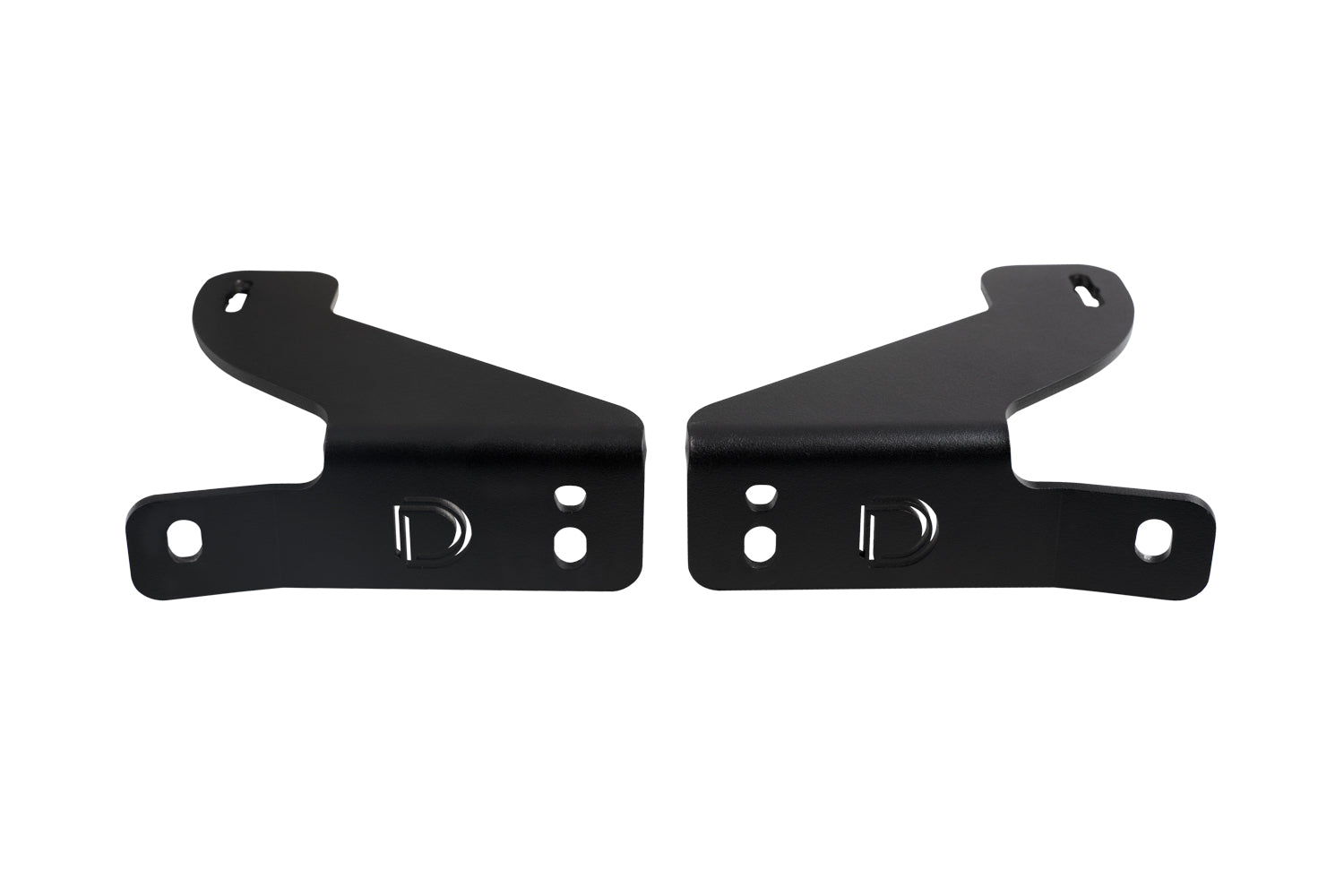

Two (2) Application-specific heavy-duty steel brackets for installation on 2017-2020 Ford Raptor
Two (2) Stage Series 5” LED Pods
One (1) heavy-duty dual-output harness
Installation Guide

Quantity: Pair (Left and Right Side)
Warranty: 8 year warranty


COLOR
OPTIC
POWER LEVEL
  • Free shipping within Canada on orders over 150$

Features

  • Bolt-on fitment on 2017-2020 Ford Raptor
  • Ultra-high intensity, with custom-engineered TIR optics
  • Selectable backlight color, with eight color options
  • Torture-tested, heavy-duty construction
  • Control through factory aux switch bank using the included harness
  • Utilizes existing mounting points for easy installation - no cutting or drilling required
  • Assembled in USA



Overview

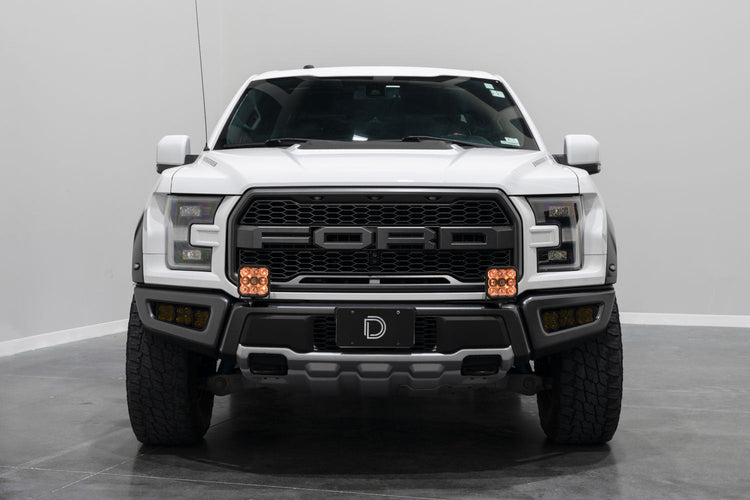

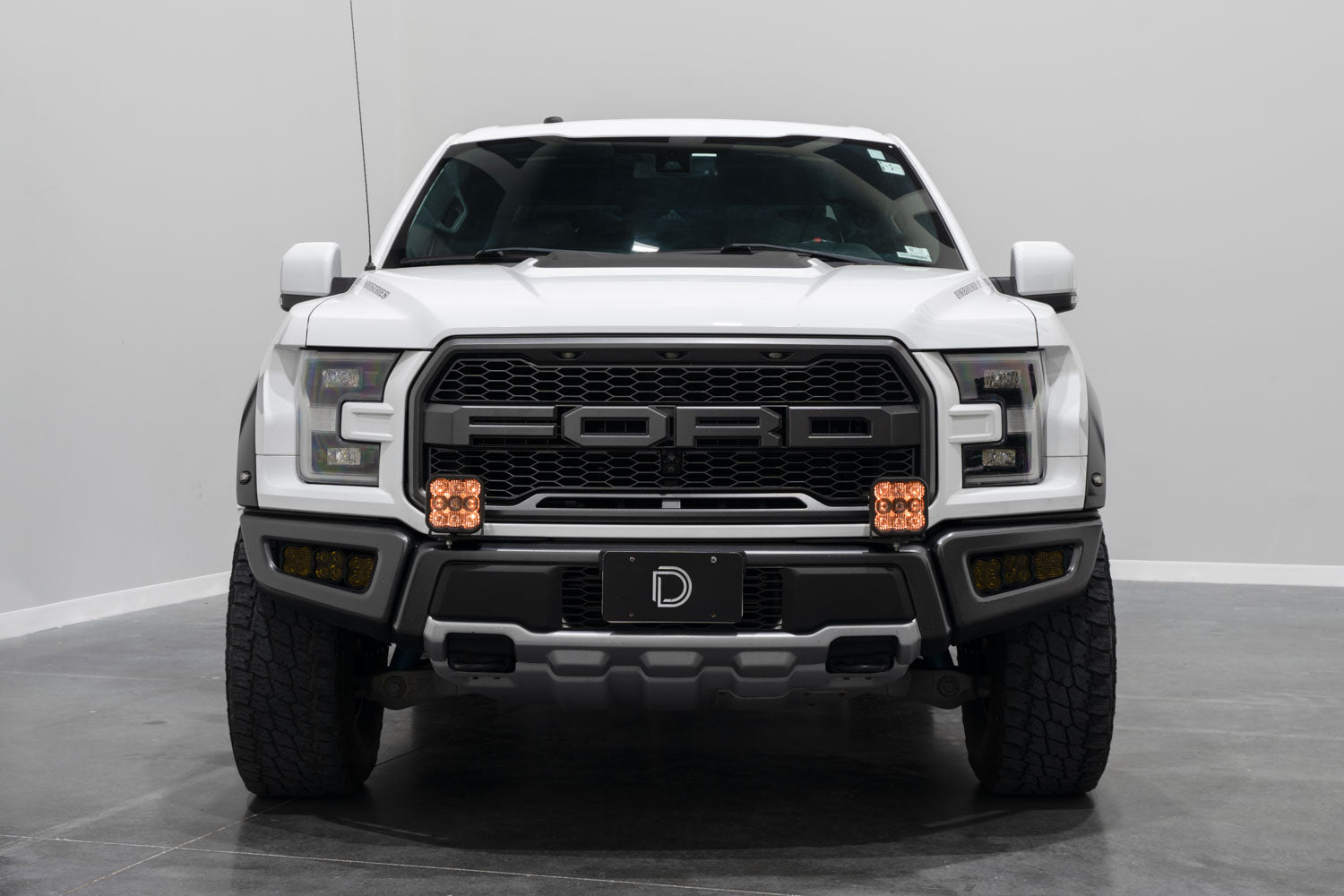

Perfect Fitment. The Bumper LED Pod Light Kit for the 2017-2020 Ford Raptor from Diode Dynamics allows you to mount two SS5 LED pods on the factory bumper. These application-specific brackets were CAD-designed to bolt into place using factory mounting points.

Designed for Performance. Featuring the highest output intensity of any 5-inch LED pod on the market, these auxiliary lamps have been designed for maximum functionality, with patented technology and custom-engineered TIR optics, all in a durable package.

SS5 Backlight Functionality

Selectable Backlight. The Stage Series 5" LED Pods included in the White kit feature a selectable backlight with eight different color options, perfect for an extra styling accent, or for more visibility when you’re not using the main beam. Selecting your backlight color is easy - simply alternate the power on and off. There’s no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic, providing unique accent lighting that you won't find on other LED pods. NOTE: Due to the yellow lens, the Yellow kit is only available with an Amber backlight color.

Control through OEM Aux Switches. Included with the kit is our OEM Auxiliary Switch Wiring Harness. This harness allows you to control your lights using the factory-installed aux switch bank. Two switches will be used - one for the main beam, and one for the backlight. For those who don't have the aux switch bank, our Heavy Duty Wiring Harness is also included to mount a switch and connect directly to the battery.

Functional Output. Stage Series beam pattern options were designed with advanced optical simulation modeling, to shape the output in highly-functional beam patterns with high efficiency.

Combo pattern combines both the Driving and Flood optics, perfect for all-around use. It shines light downrange in a focused 30x20 Driving beam to punch with distance, and fills in the surrounding area to create a full 70x30 degree pattern. With a row of driving optics in the middle, and a flood optic on the top and bottom, this has been designed to provide extra light for every situation.

Driving is great for general illumination at speed. Rather than a traditional "spot" pattern, the Stage Series Driving pattern shines in a 30x20 degree spread, providing just enough width to fully illuminate the road ahead at high speeds, but still staying focused to avoid too much foreground light. Although the SS5 Driving is too bright to be considered an SAE Auxiliary High Beam, it is perfect for an extra boost of light at speed.

White or Yellow. This kit is available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.

Interchangeable Lens. Need a different beam pattern or color? You can swap it yourself! We offer replacement lenses that allow you to change the color or optic of your Stage Series SS5 Pods.

Sport or Pro. This kit is available at two different power levels. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses nine high-intensity LEDs for 40W of total power. The Pro model steps things up in a big way, with double the total power at 90W. Click the Specifications tab to see more information.

Snap-on covers. For states that require them, we also offer snap-on covers for your SS5 Pod. These covers are available in a variety of colors and keep your SS5 Pod clean and protected from dirt, dust, or whatever else the road throws your way!

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Specifications

NOTE: Specifications listed here are for each individual pod.
LENS COLOR/OPTICS

PEAK BEAM INTENSITY
(CANDELA)

ILLUMINANCE
(LUX @ 10M)
MEASURED OUTPUT
(LUMENS)
RAW OUTPUT
(LUMENS)
OUTPUT COLOR
Combo White Sport 81,600 cd 820 lux 3,800 lm 4,800 lm 6000K White
Combo White Pro 75,700 cd 750 lux 9,600 lm 9,700 lm 6000K White
Driving Sport 131,300 cd 1,300 lux 3,800 lm 4,800 lm 6000K White
Driving Pro 170,000 cd 1,700 lux 9,600 lm 9,700 lm 6000K White
Combo Yellow Sport 71,200 cd 820 lux 3,700 lm 4,800 lm 3000K Yellow
Combo Yellow Pro 58,500 cd 750 lux 7,900 lm 8,900 lm 3000K Yellow
Driving Yellow Sport 103,000 cd 1,300 lux 3,700 lm 4,800 lm 3000K Yellow
Driving Yellow Pro 131,600 cd 1,700 lux 7,900 lm 8,900 lm 3000K Yellow


*INITIAL TESTING ONLY

Main Beam Power (watts): Sport: 40, Pro: 90
Backlight Power (watts): White: 3.17, Yellow: 3.07
Main Beam Current (amps @ 12.8V): Sport White: 2.75, Sport Yellow: 2.8, Pro: 6
Backlight Current (amps @ 12.8V): White: 0.25, Yellow: 0.24
Color Temp (CCT): 3000K, 6000K
Beam Angle: Driving, 20°x8°, Combo (Driving and Flood)
Operating Voltage: 9-16V
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES, Cree XP-L HI
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
Cooling: Passive, Pin-Fin heatsink
Intrusion Ratings: IP69K Waterproof, High Pressure
Unit Weight (lb): 5.3
Product Weight (lb): 8.8
Shipped Weight (lb): 13.8

Fitment

Make: Ford
Model: Raptor
Years: 2017, 2018, 2019, 2020
