18+ STI LED Fog Light Package

DD5128P/7307/BZ18

18+ STI LED Fog Light Package

Sale price$462.00 CAD
/
  • WHAT'S INCLUDED IN THE BOX:
FOG LIGHT: 2 x Morimoto or Diode Dynamics.

OPTIONAL: 2x Genuine Subaru (L+R ) fog light bezels.

OPTIONAL: Heavy duty stand-alone relay plug n play harness.

OPTIONAL: High quality stainless steel mounting hardware.


COLOR
FOG LIGHTS:
OPTIONS
  • Free shipping within Canada on orders over 150$

DESCRIPTION

Replace those fake lower bumper intake/grills with something that will actually put some light on the road!

If you drive a 2018 STI this is the "bolt-on" fog light kit you've been looking for !

Designed To fit the 2018+ STI: 15 Fog light options that will mount behind the bumper with all of the stock mounting points.  We use Genuine Subaru fog lights bezels along with a heavy duty stand-alone harness and quality hardware to insure a perfect fit.

Available with 15 unbeatable fog light options!

Plug n Play: Wiring is easy too! The heavy duty relay harness requires no cutting or splicing! Simply plug the "add a fuse" style input to the lowbeam slot in your fuse box and the fog lights will automatically come on with your lowbeams and stay on with the high beams. No need to pass wires through the firewall for a switch.

FOG LIGHT OPTIONS:

Diode Dynamics SS3Click here for full description.

Diode Dynamics Elite Series: Click here for full description.

Morimoto 4Banger: Click here for full description.

Morimoto XB LED Type S V1: Click here for full description.

White: Morimoto XB LED Type S V2: Click here for full description.

Yellow: Morimoto XB LED Type S V2: Click here for full description.

OEM BEZELS:
Impact resistant Polypropylene
1 piece design

RELAY HARNESS:
INPUT TRIGGER: 1x " add a fuse " style Male input
HD RELAYS: 2x WeatherPack 40A Cubes
FOG LIGHT OUTPUTS: 2x H11 Female
GROUND: 1x Nickel-Plated Ring-Type 12V
POWER: 1x Nickel-Plated Ring-Type
FUSE: Inline 25A
SLEEVING: Abrasion-resistant Techflex mesh

MORIMOTO 4BANGER FOGS:
NCS Wide Yellow: 8,680 Cd (Post Warm-Up) (86.8lux @ 10m)
NCS Wide White: 14,400 Cd (Post Warm-Up) (144lux @ 10m)
HXB Wide White: 22,400 Cd (@20 Min / 21C Ambient) (224lux @ 10m)
Input Voltage: 9-18V DC
Power (stabilized): 15.6w (NCS) 42w (HXB)
Current: 1.5A (NCS) or 3.2A (HXB)
Peak Luminosity (lm)(Raw): 1,300lm (NCS), 3,000lm (HXB)
Dimensions: 82mm W, 67mm H, 60mm D
Light Source: 3x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost
Input: Proprietary Overmolded Deutsch DT 2-Pin w/ Pigtail
Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

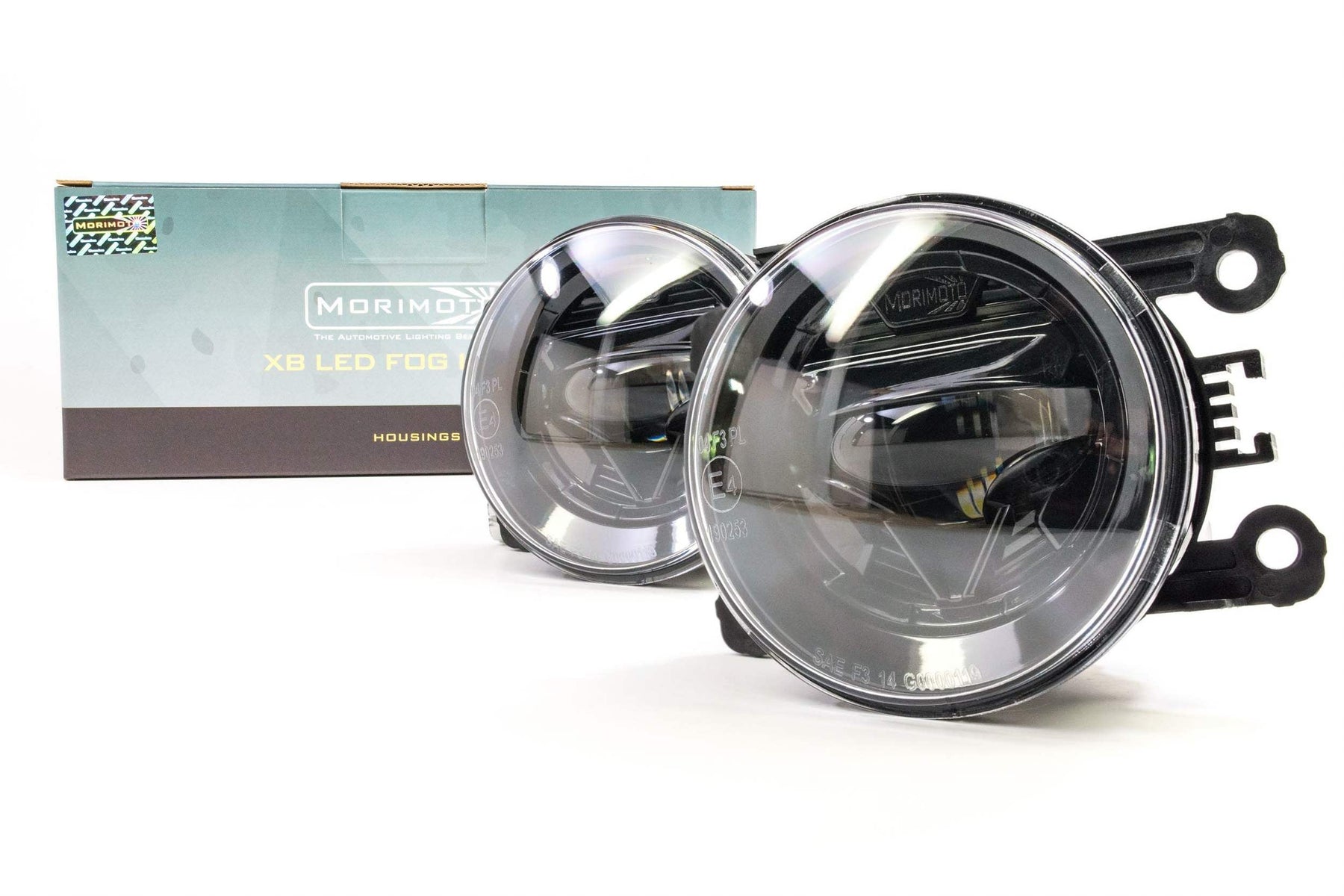

MORIMOTO XB LED FOGS:
Intensity: 1,200lm (Raw; each)
Input: H11 Male
Material: Powdercoated Aluminum (Housing), UV-Resistant Polycarbonate (Lens)
Light Source: Nichia 5500K (Pure White) or 3000K (Yellow)

DIODE DYNAMICS SS3 FOGS:
Main Beam Power (watts): Sport: 14.5, Pro: 36, Max: 38.5
Backlight Power (watts): 0.4
Main Beam Current (amps @ 12.8V): Sport: 1.1, Pro: 2.7, Max: 3 Backlight
Current (amps @ 12.8V): 0.03
Operating Voltage: Backlit: 9-30V, Non-Backlit: 9-16V
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES, Cree XP-L HI, Osram Boost HX
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
Cooling: Passive, Pin-Fin heatsink
Compliance Ratings: SAE J575 Durability Test
Intrusion Ratings: IP69K Waterproof, High Pressure

DIODE DYNAMICS ELITE SERIES FOGS:
Measured Lumens: White: 1,850 lm, Yellow: 1,650 lm
Intensity (cd): White: 10,200 cd, Yellow: 8,700 cd
Color Temp (CCT): 3000K, 6000K
Beam Angle: Fog, 80°x6°
Power (watts): Main Beam White: 17, Main Beam Yellow: 15, Backlight: 0.3
Operating Voltage: 9-16V
Current (amps @ 13.2V): Main Beam White: 1.3, Main Beam Yellow: 1.2, Backlight: 0.025
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Multi-Die Automotive Emitters
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Materials: Copper PCB, UV Coated Polycarbonate Lens, Precision Aluminum Casting
Cooling: Passive, Pin-Fin heatsink
Compliance Ratings: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern
Intrusion Ratings: IP68 Waterproof

FITMENT: 2018-2021 STI
