HP3 T10/194 LED Bulb Diode Dynamics

Sale price$16.00 CAD
/

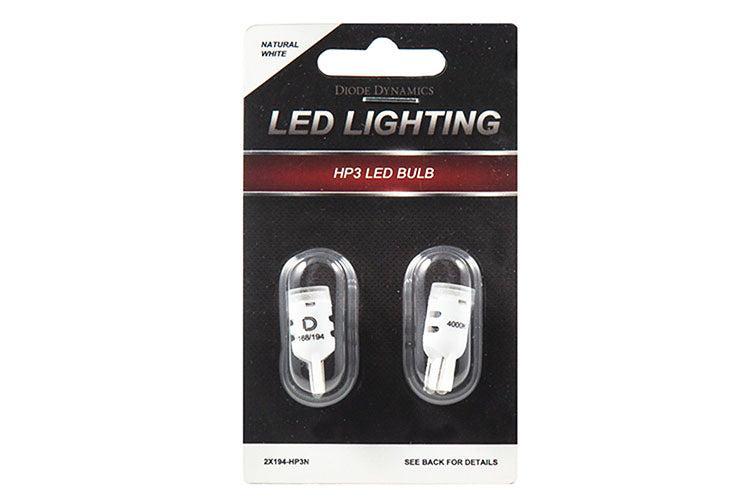

  • WHAT'S INCLUDED IN THE BOX:

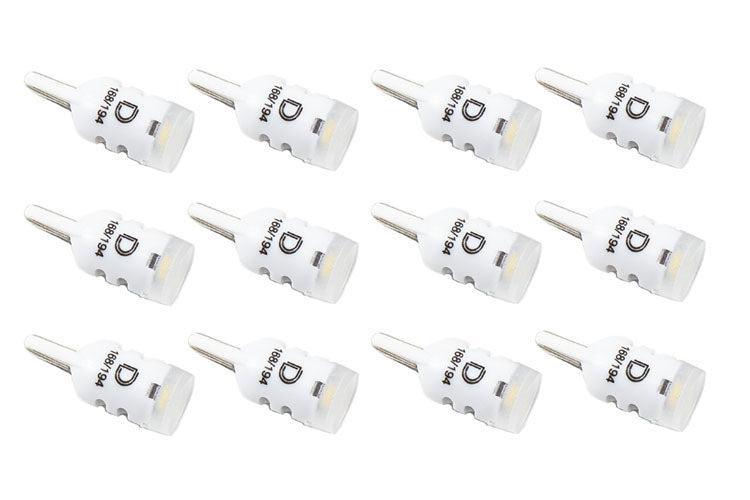

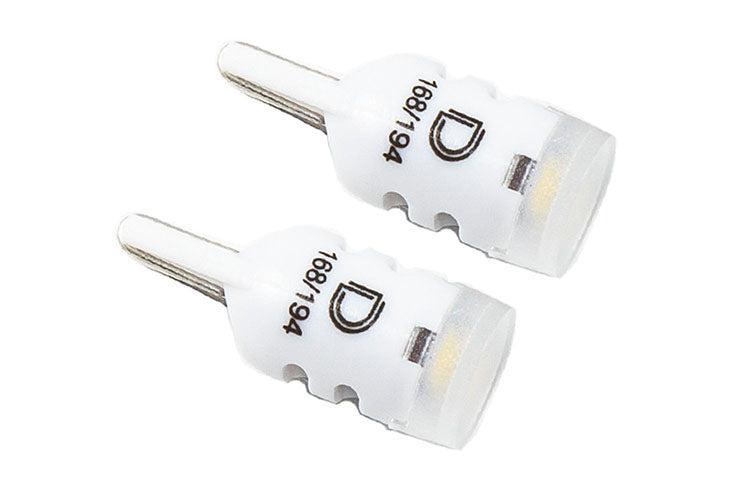

Quantity: One, two or twelve
Warranty: 3 year warranty


COLOR
QUANTITY
  • Free shipping within Canada on orders over 150$

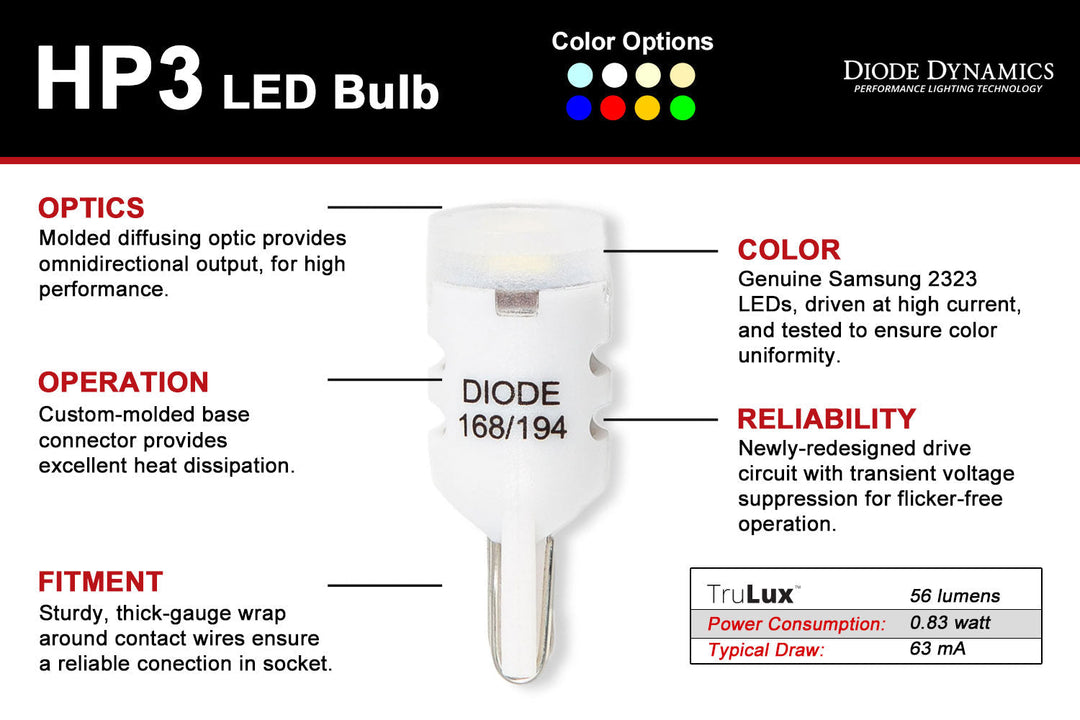

194 HP3 LED Features

  • Diffused lens design for even spread
  • Proven performance, highly reliable
  • Increased output with LED Appearance
  • Plug and play, simple installation

Overview

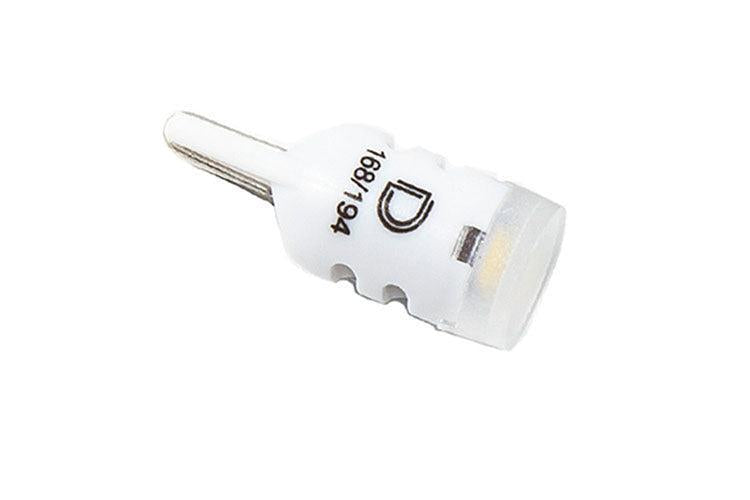

Design. The 194 HP3 LED bulb is a compact, simple LED replacement with proven performance. The single diffused optic spreads light in the original lamp, for OEM-style appearance and function. With its dual-lead contacts, it will fit snugly in the socket, and its light weight means it won't vibrate loose over time.

Reliability. Unlike other bulbs on the market, this bulb is built with constant-current circuitry, along with transient suppression. That means this bulb will last for years, not months, with no flickering or failure. And like every Diode Dynamics product, it's backed by an industry-leading three-year replacement warranty.

Brightness. With 56 lumens of true, measured output, the HP3 LED will provide about double the total light compared to your original 5W 194 or 168 sized bulb. Its even spread in the housing makes for a good amount of useful light, whether mounted in a straight or side-plug orientation.

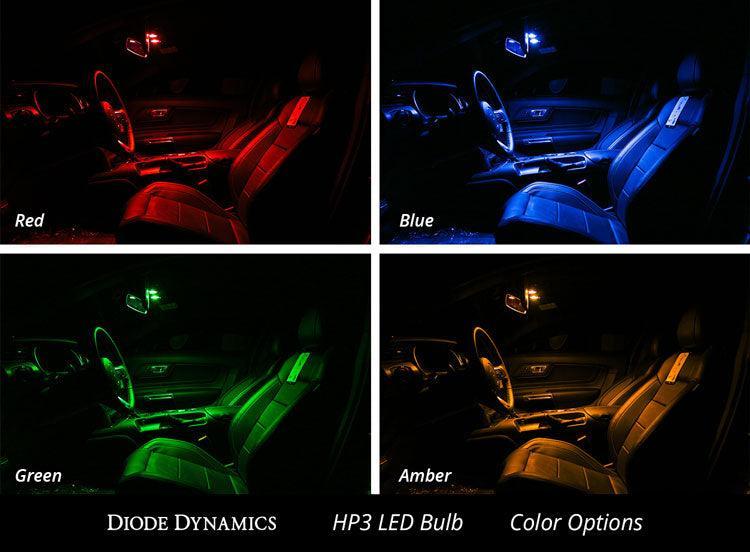

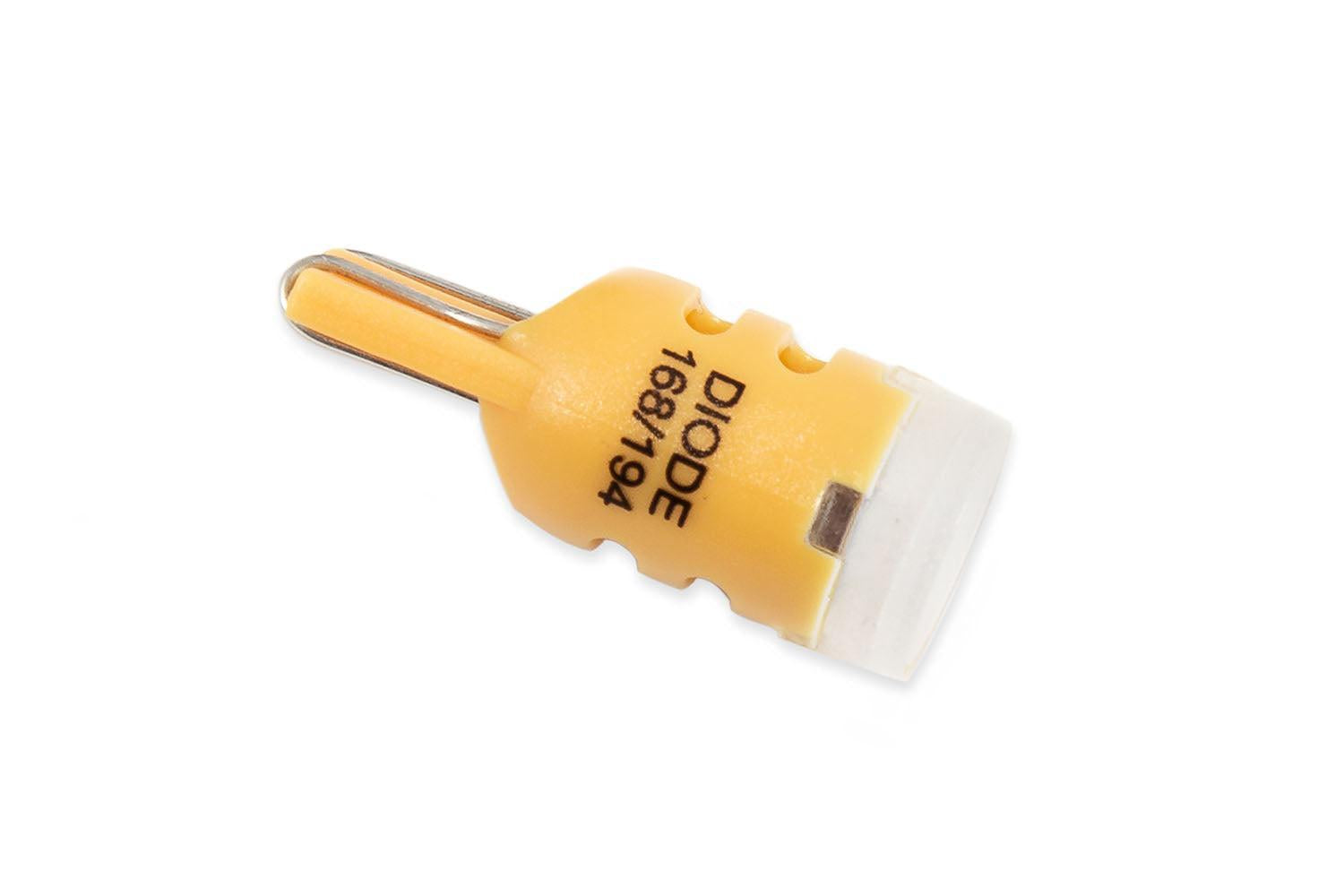

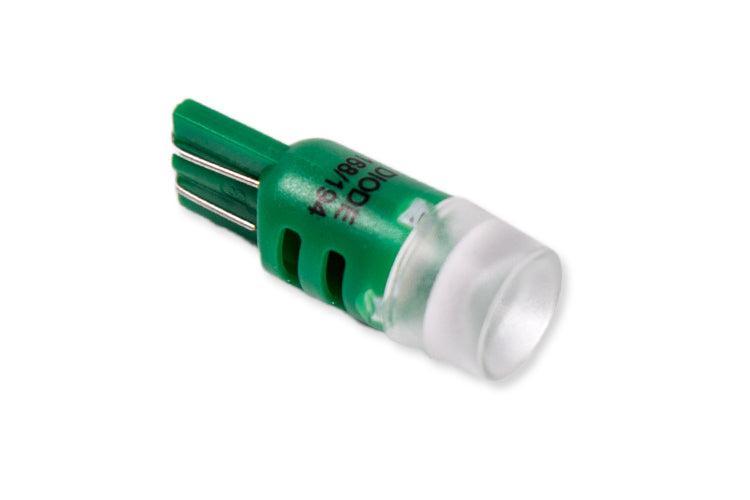

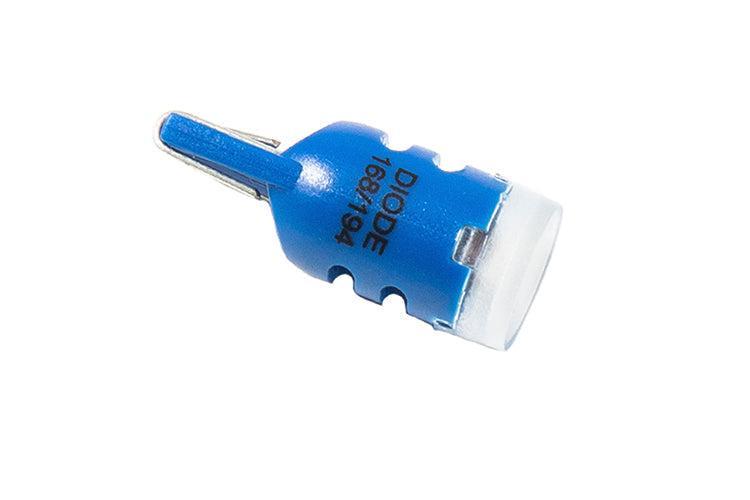

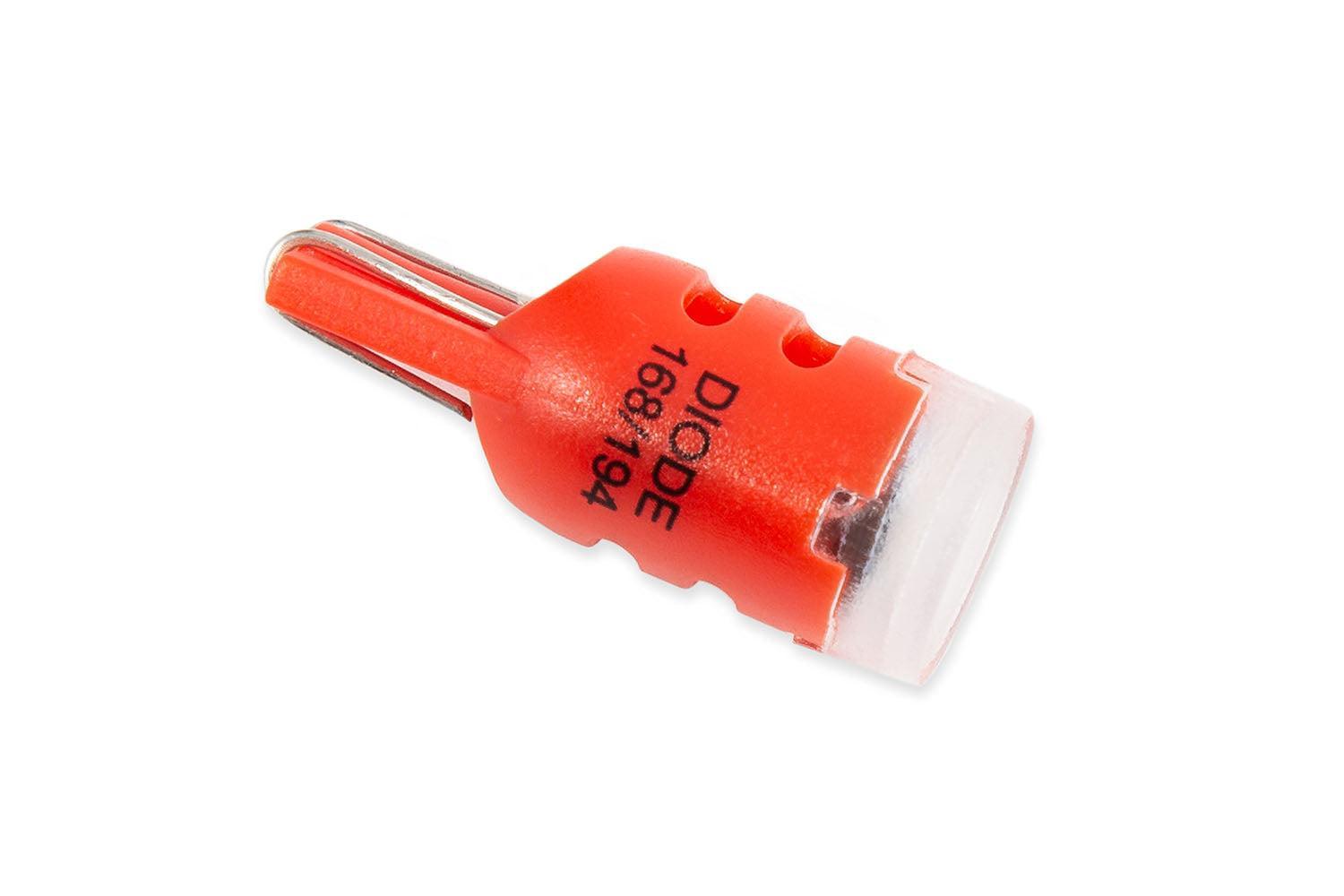

Colors. In addition to vibrant colors of blue, red, amber, and green, the 194 HP3 is available in a number of white color options. These include a cool white 6000K, warm white 3000K, a 5000K or pure white, and a 4000K or natural white. Whether you want a modern cool white appearance, or a traditional warm white color with more output, we have the color to fit your need!

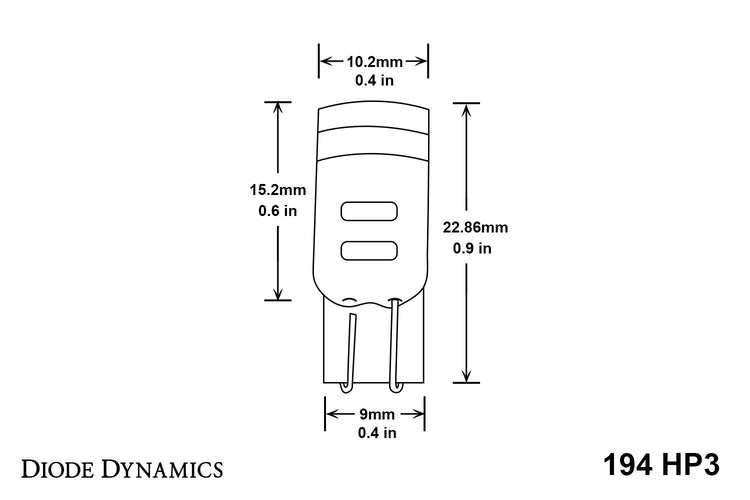

Specifications
Measured Lumens: 56
Beam Angle: Omnidirectional (270 degrees)
Power (watts): 0.3
Operating Voltage: 9-16V
Current (amps @ 13.2V): 0.035
Polarity: Nonpolar
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Samsung SMD
Connector(s): OEM-Size Plug and Play

Fitment
Replacement for any mini wedge bulb size, including T8, T12,T15, 194, 175, 168, #555, 2886X, 194R, 161B, 3652, 193, 658, 2827, 194NA, 161, 558, 168NA, 2825, 194G, 160, 168A, 192, 2821, 194B, 158, W5WB, 579, 168, 2825ST, 168ST, 3652LL, 579LL, 2825LL, 168NALL, 2825L, 2821LL, 168LL, 194ST, 161LL, 194NALL, 2827LL, 158LL, 194LL, 906NA, 917, 906, 916NA, 904NA, 922, 916, 904, 921, 912, 920, 921K, 916LL, 921LL, 912LL, 920LL, 917LL, 906LL, 916NALL, 904LL, 921ST.

Plug and play, no modification needed.
