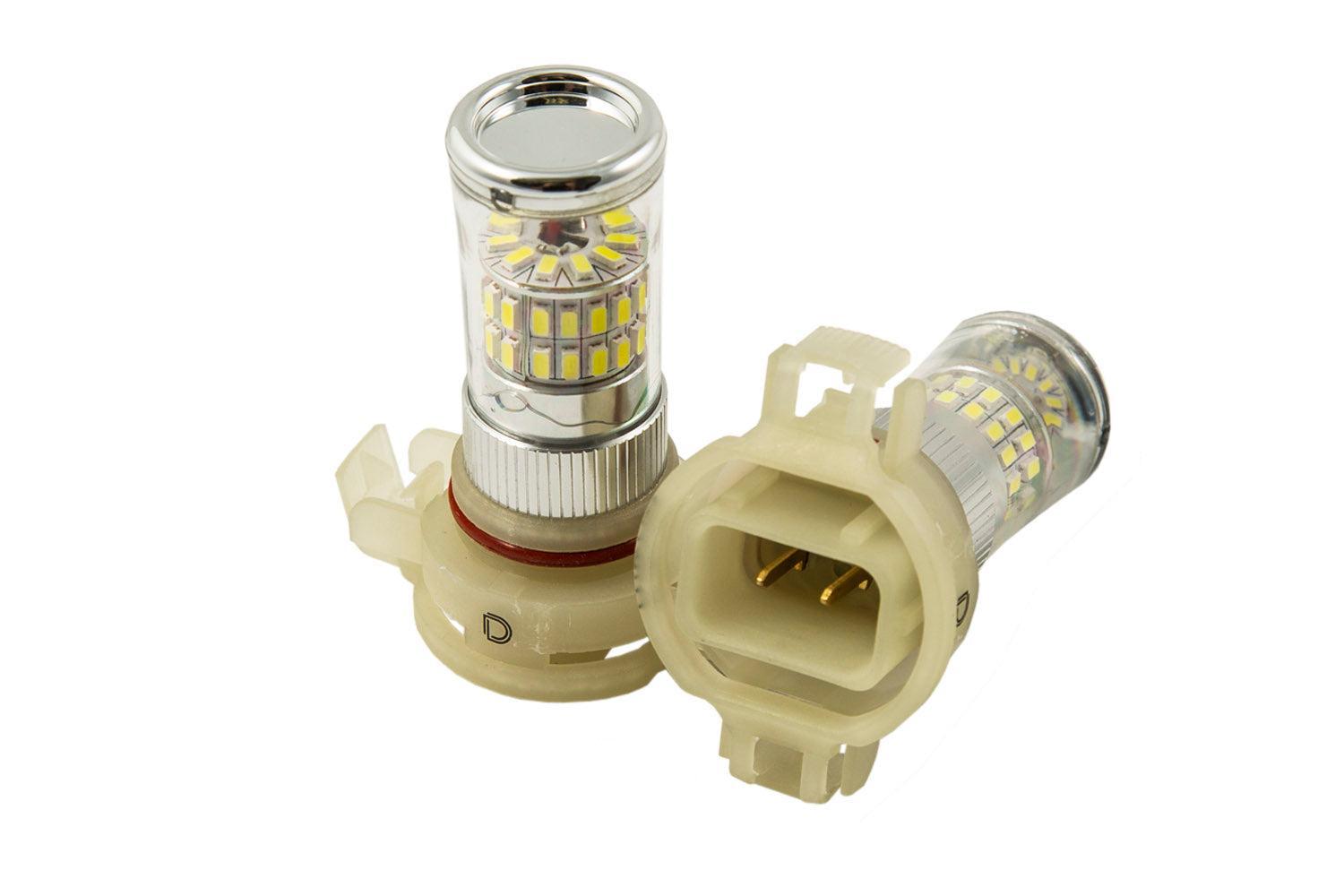

Upgrade. Add a modern appearance to your vehicle with the 5202/PSX24W HP48. Populated with 48 Epistar 3014 LED chips, the HP48 upgrades the factory yellowish incandescent bulb to a modern cool white appearance. Thanks to the cap on the top, the light output is directed backwards and away from the bulb, instead of straight out. This allows the light output to shine much more uniformly. Best of all, installation only takes minutes - simply take out your factory bulb and the HP48 will fit snugly in the socket.
Brightness. At 250 lumens, the HP48 will provide slightly more light output compared to your factory bulb. If you are looking to increase output, we'd recommend checking out our XP80 and SLF options! All Diode Dynamics LED lighting is rated with accurate, measured lumen figures, not calculations or guesses. We test the true output in-house, and provide you the real numbers to compare.
Applications. The HP48 is a great option for your fog lights or daytime running lights (DRL). We don't recommend using the HP48 in any low beam or high beam headlight applications.
Reliability. Unlike other bulbs on the market, this bulb is built with constant-current circuitry, along with transient suppression. That means this bulb will last for years, not months, with no flickering or failure. And like every Diode Dynamics product, it's backed by an industry-leading three-year replacement warranty.
USDM vs JDM. There is a great deal of confusion when it comes to the differences between 5202, H16, and PSX24W bulb sizes. The main source of confusion is the fact that H16 is used for two types of bulbs: in Japan, it is an H11-style bulb, with standard H11-size base, running at a lower power level. However, in Europe, H16 was used to refer to the newer tab-lock style of bulb, which we refer to as 5202. If you are looking to replace your incandescent H11-style, H16-size fog light bulb, click here to view our H11-size HP48 LED bulb.
Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we assemble and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations.

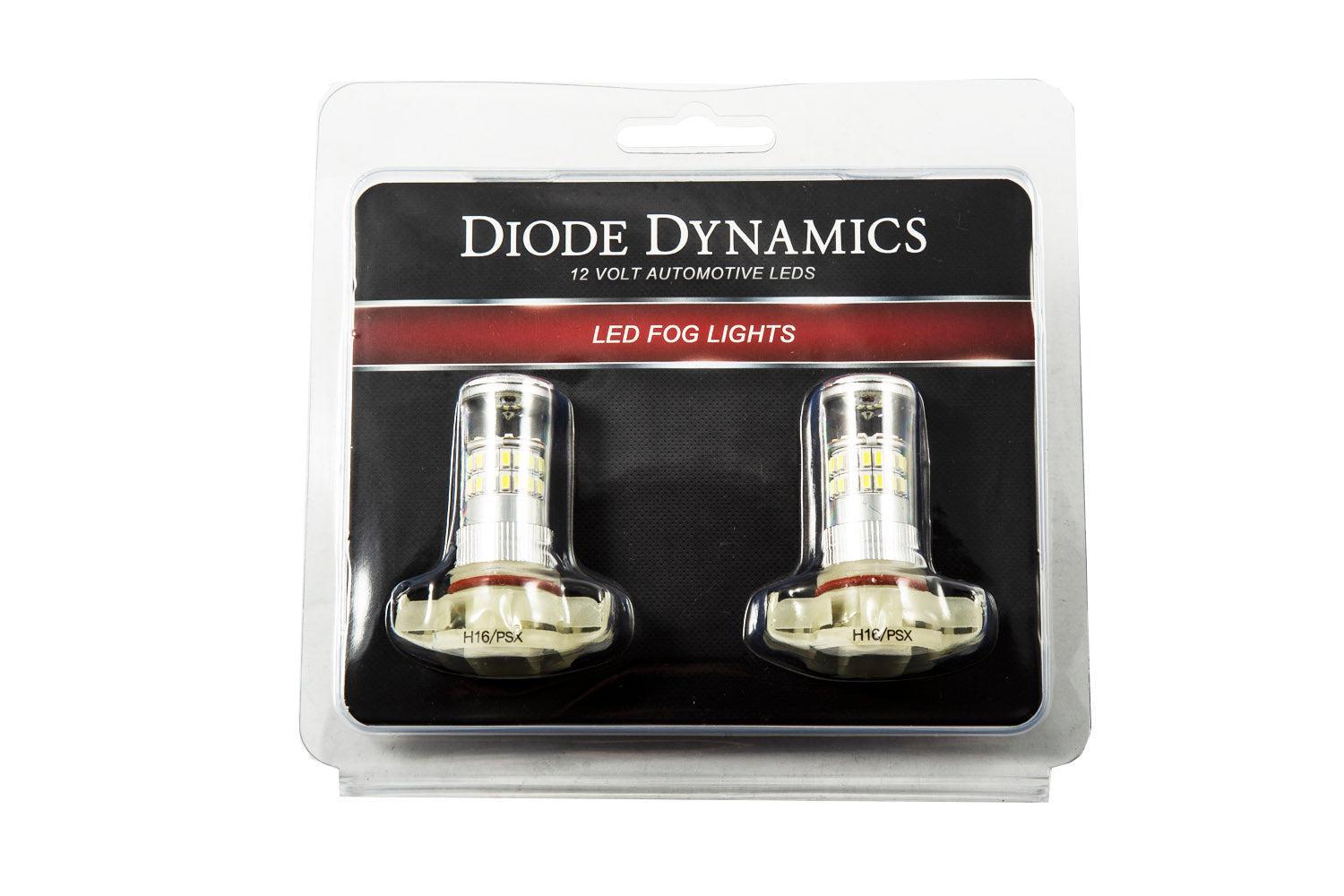

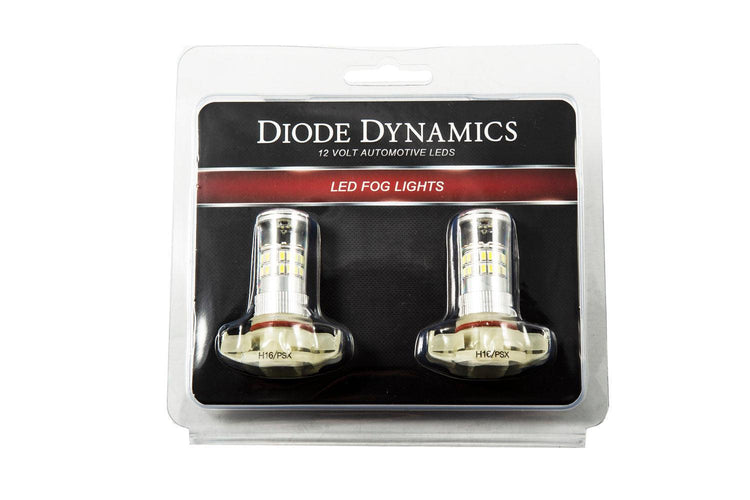

- 5202/PSX24W HP48 LED Cool White Pair
- Direct replacement for factory 5202/PSX24W incandescent bulb
- Adds more modern, LED appearance
- Plug and play, simple installation
- Quantity: Two (2)
- Warranty: 3 year warranty
- Return Policy: 30-day Return with no restocking fee
- 100 percent Satisfaction Guarantee
- Replacement for any 5202 bulb size, including PSX24W, H16-EU, 5202, 2504, PS24W, 5201, 9009
- Plug and play, no modification needed

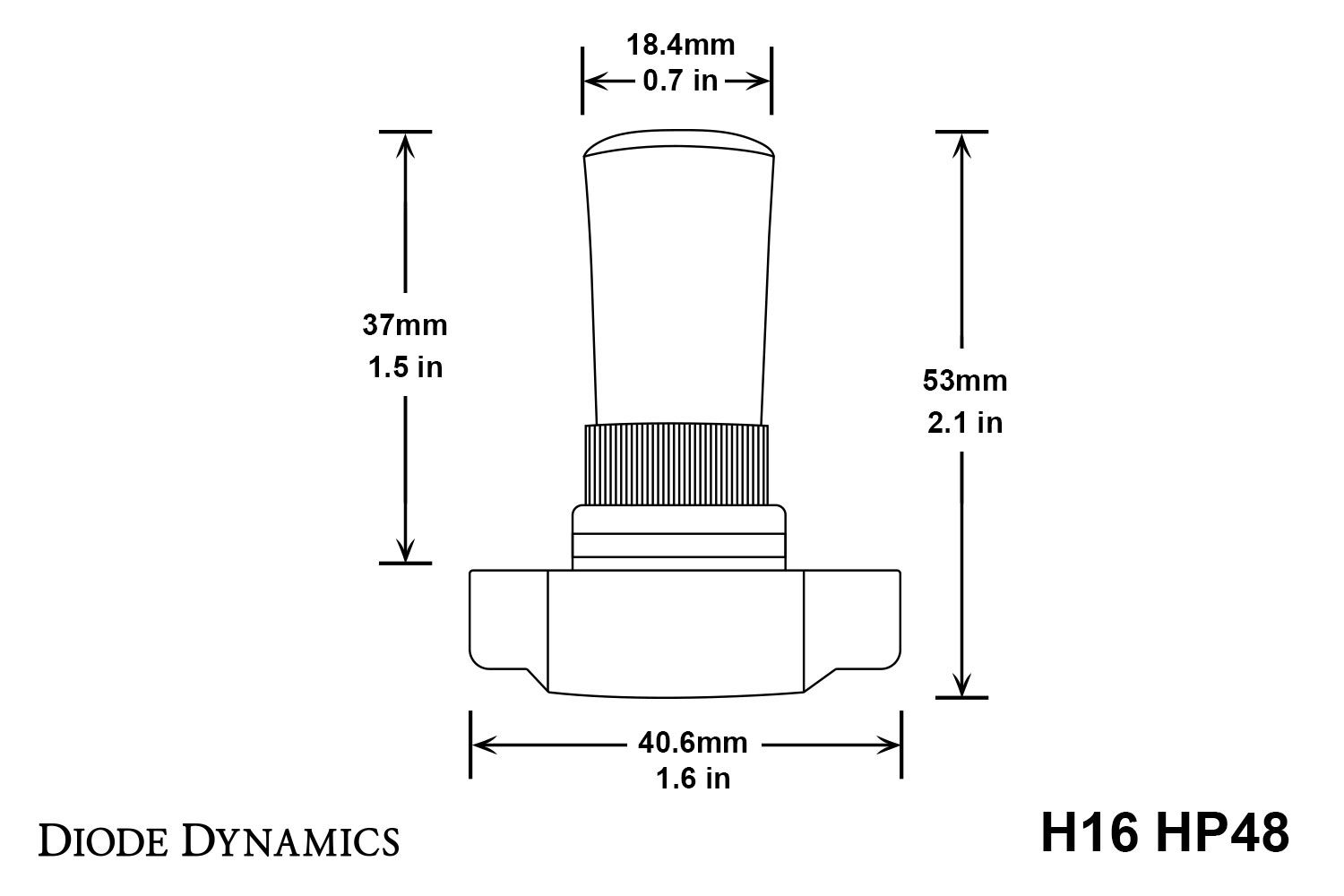

- Bulb Size: 5202 (H16-EU)
- Measured Lumens: 250
- Color Temp (CCT): 6000K
- Beam Angle: Omnidirectional (270 degrees)
- Power (watts): 4.0
- Operating Voltage: 9-16V
- Current (amps at 13.2V): 0.312
- Polarity: Nonpolar
- Operating Temperature: -40C to 85C (-40F to 185F)
- Connector(s): OEM-Size Plug and Play
- Materials: Aluminum Heatsink
