dd3052

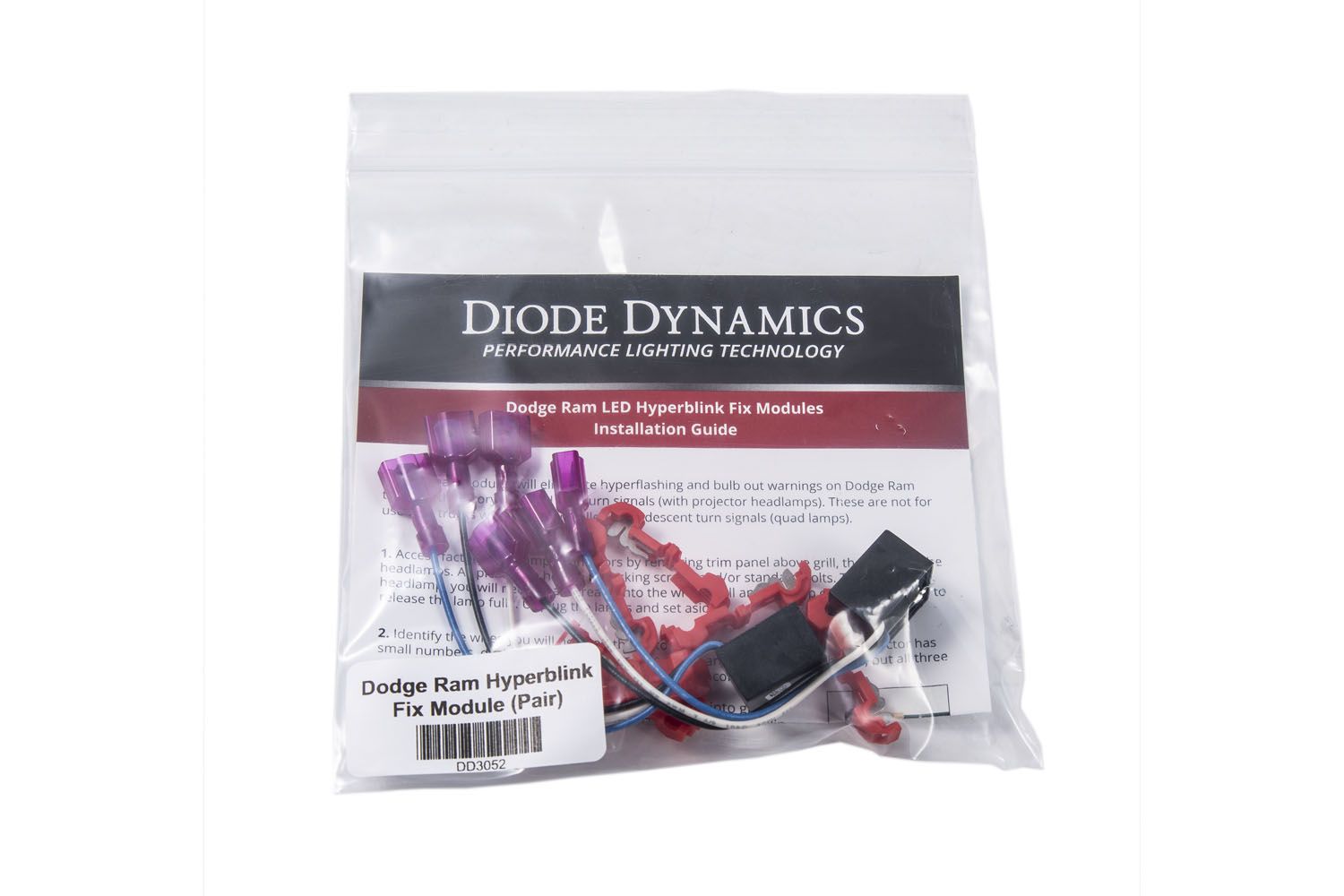

Dodge Hyperblink Fix Pair Diode Dynamics

Regular price$28.00 CAD
/
  • WHAT'S INCLUDED IN THE BOX:
Quantity: Two (2)
Warranty: 3 year warranty


  • Special Order Item, Usually Ships Within 3-7 Business Days
  • Free shipping within Canada on orders over 150$

Features

  • Eliminates turn signal hyperflashing and bulb out warning in Dodge and Ram vehicles with LED turn signals
  • Assembled in USA, and sealed for reliability
  • 3-year, worry-free warranty

Overview

No more errors. Dodge and Ram vehicles with factory-installed LEDs require a "fault" data feedback signal. If you remove or modify the factory turn signal in either the front or rear, you'll need to replicate that signal, or else you'll experience hyperblinking and bulb out warnings.

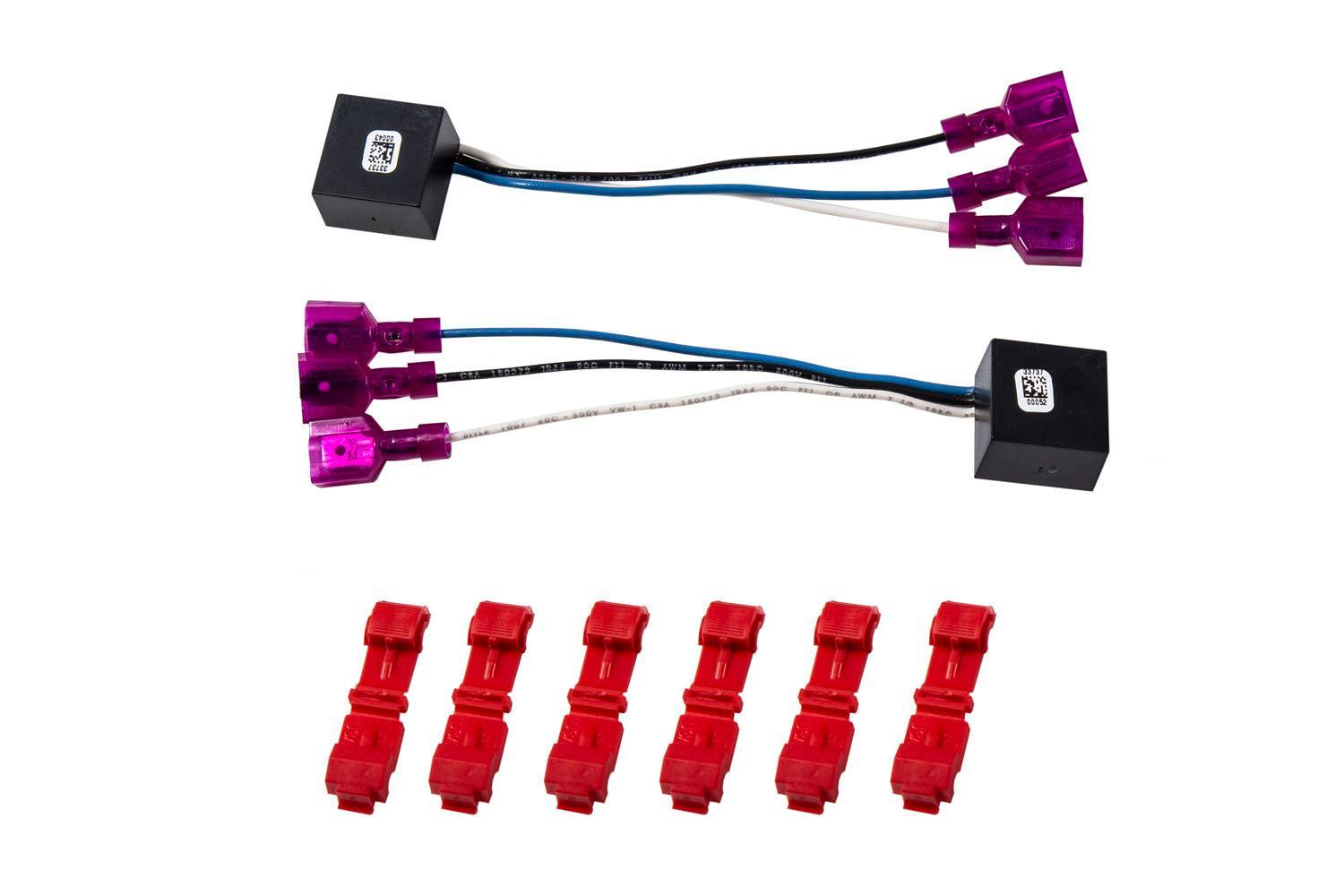

These are small modules that provide the required "fault" signal. Simply connect the module to turn signal power, ground, and the fault circuit, and this module will deliver the signal your vehicle computer is looking for, to eliminate any errors.

These are not for use in vehicles with factory-installed incandescent turn signals. Resistors are required for vehicles with incandescent factory-installed signals. This is only necessary for vehicles with factory-installed LED turn signals.

Your order includes one pair of modules. They can be used in either the front or rear. If you have removed or modified both front and rear factory LED turn signal lamps, you will need two pairs (four modules total).

Installation. Once the headlamp connectors have been accessed, tap the following wires.

  • Connect the BLACK wire to GROUND.
  • Connect the WHITE wire to TURN SIGNAL POSITIVE.
  • Connect the BLUE wire to FAULT CIRCUIT.

    Specifications

    Operating Voltage: 9-16V
    Polarity: Polarity Specific
    Operating Temperature: -40C to 85C (-40F to 185F)
    Connector(s): T-Tap Inputs
    Driver Features: Waterproof
    Product Dimensions (in): 6in x 6in x 1in
    Shipped Weight (lb): 0.12

    Left side (driver side in US):
    Ground (Black): Black, Pin 13
    Fault Circuit (Blue): Brown, Pin 14
    White (Turn Signal): White/Green, Pin 12

    Right side (passenger side in US):
    Ground (Black): Black, Pin 13
    Fault Circuit (Blue): Orange, Pin 14
    White (Turn Signal): White/Tan, Pin 12

    Fitment

    These modules are compatible with Dodge and Ram vehicles with factory-installed LED turn signals. For example, they can be used when the following products are installed:

    2013-2018 Dodge Ram Multicolor LED Boards
    2013-2018 Dodge Ram Switchback LED Boards

    These are NOT compatible with vehicles with factory-installed incandescent turn signals.
