SS30 Stealth Lightbar Kit For 2015-2020 Colorado/Canyon Diode Dynamics

Sale price$710.00 CAD
/

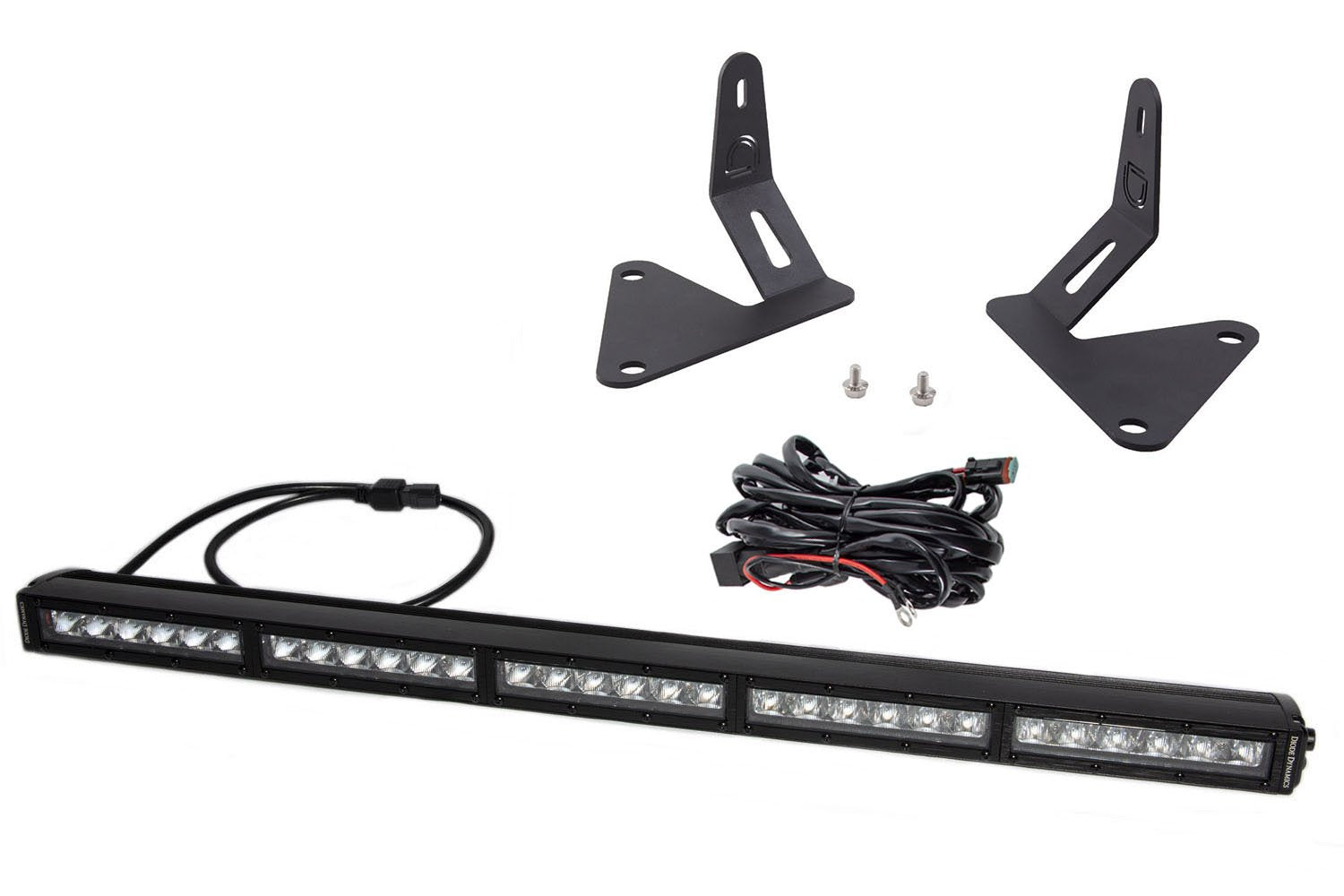

  • WHAT'S INCLUDED IN THE BOX:

Two (2) Application-Specific Heavy-Duty Steel Brackets for Installation on 2015+ Colorado/ Canyon
One (1) SS30 Stage Series 30" Light Bar
One (1) Heavy-Duty Single Output 2-Pin Offroad Wiring Harness
One (1) Aux Switch Adapter Wire
All Necessary Hardware
Installation Guide

Quantity: One (1)
Warranty: 8 year warranty


COLOR
OPTIC
  • Free shipping within Canada on orders over 150$
  • Special Order Item, Usually Ships Within 3-7 Business Days

Features

  • Direct fitment on 2015+ Chevrolet Colorado.
  • Allows you to mount one 30" light bar in the lower grille opening.
  • CAD-designed for perfect fitment and OEM-like appearance.
  • Utilizes existing mounting points for easy installation - no cutting or drilling required.
  • Highly durable powdercoated steel construction.
  • Plug-and-play wiring harness included to power light bars.



Overview

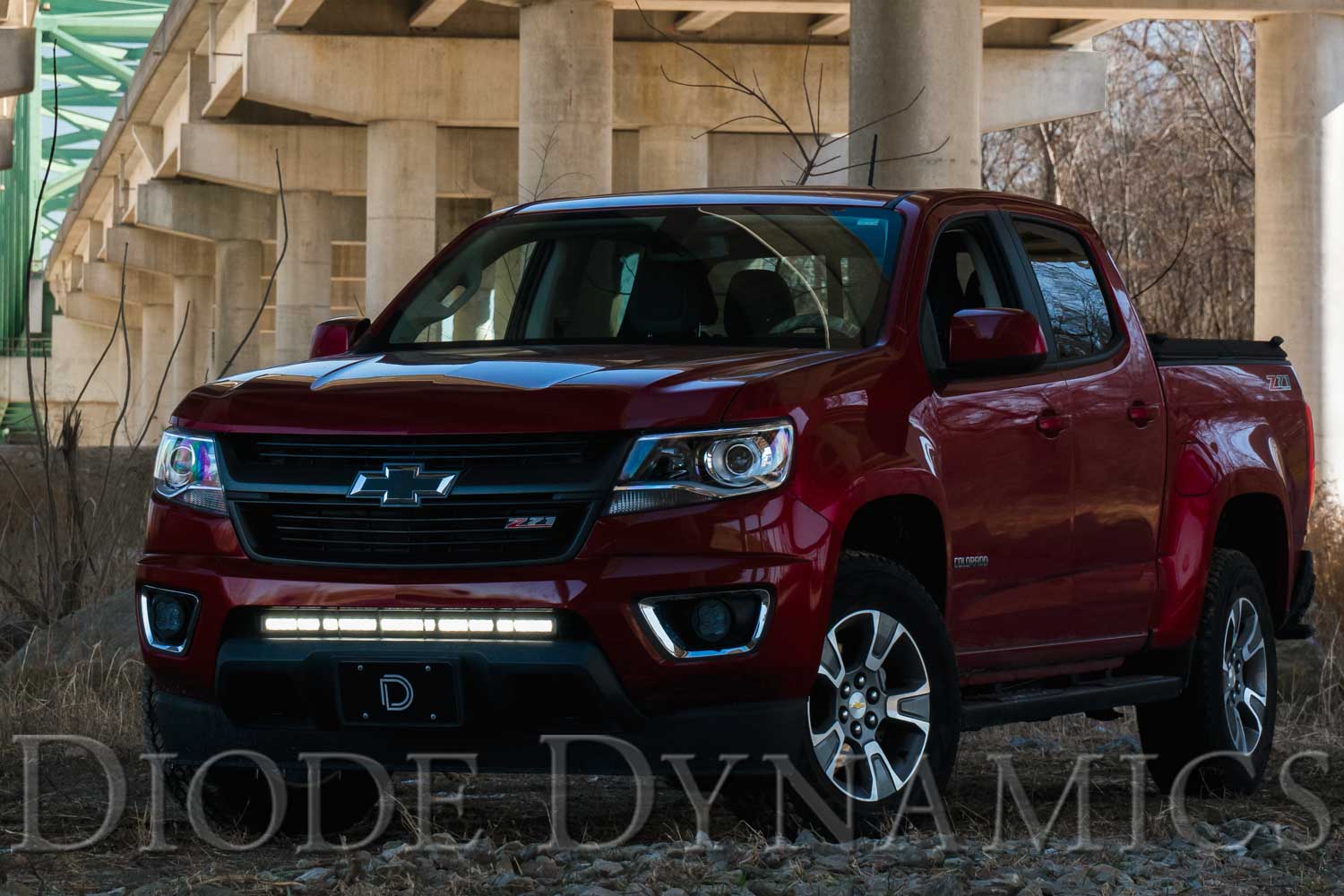

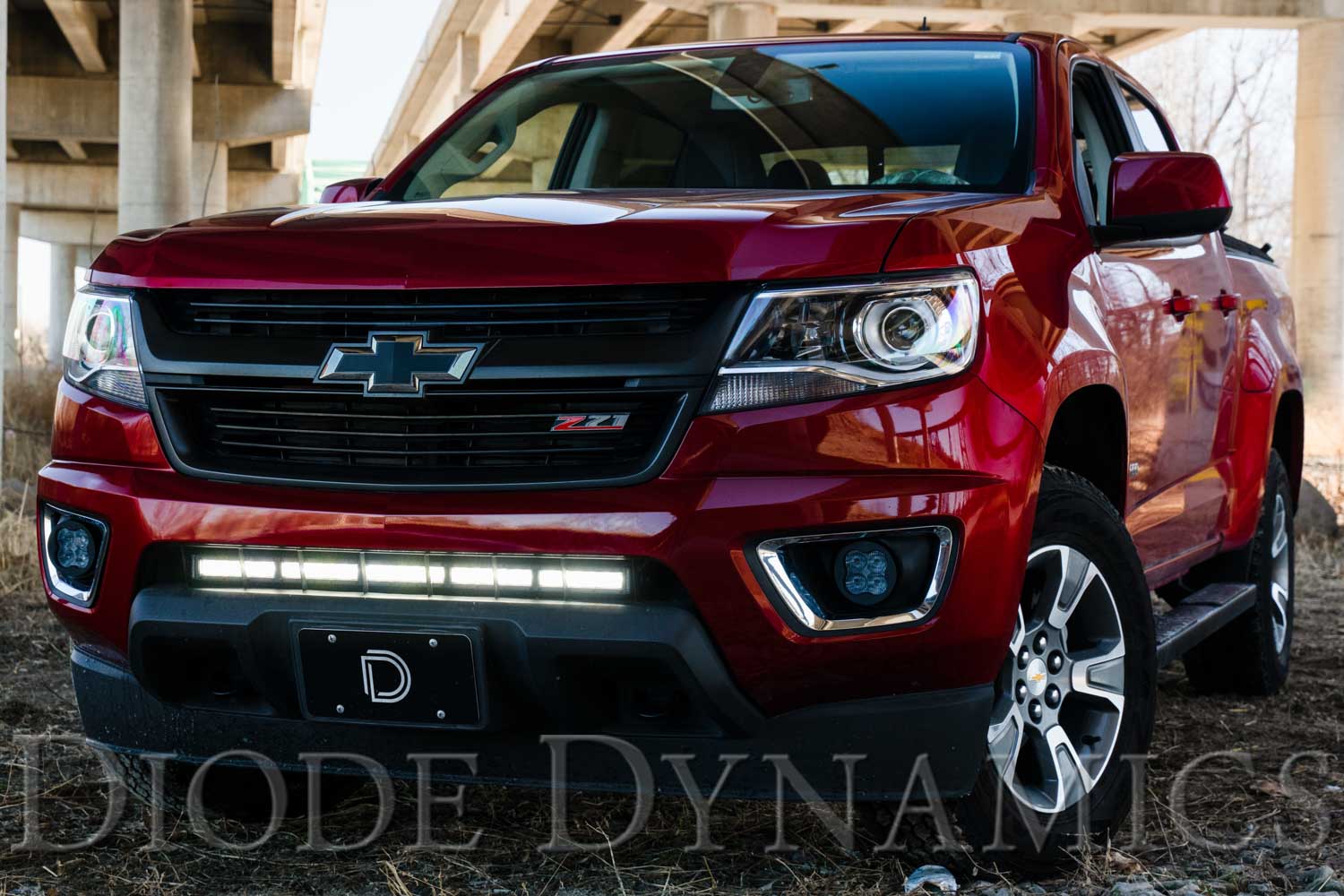

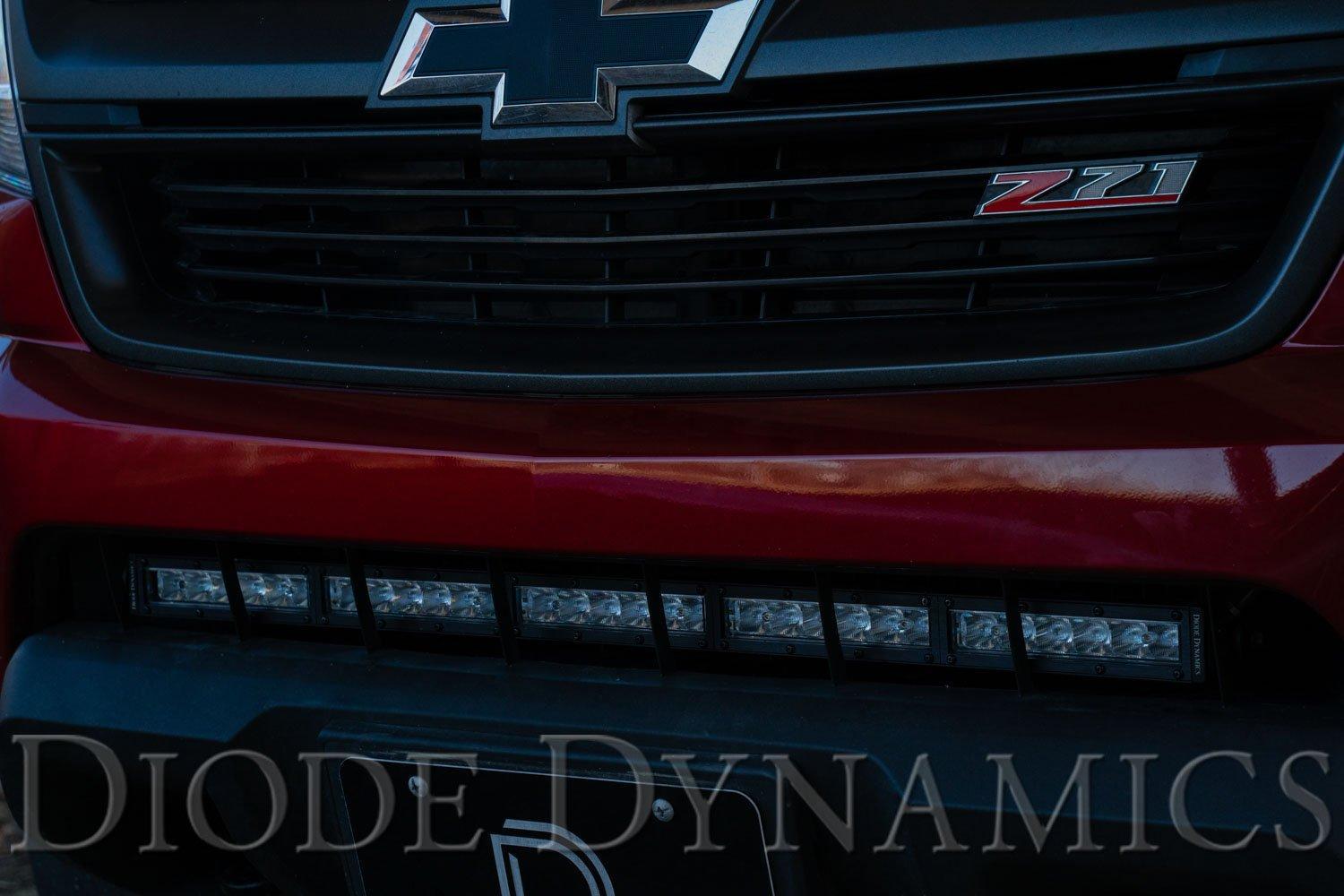

Perfect fitment. The Stealth LED Light Bar Kit for the 2015-2020 Chevrolet Colorado from Diode Dynamics allows you to easily mount a 30" light bar in the factory lower bumper opening. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required! This kit retains the factory lower grille for a clean, OEM-like appearance.

Designed For Performance. Using optical simulation modeling, Diode Dynamics Stage Series light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

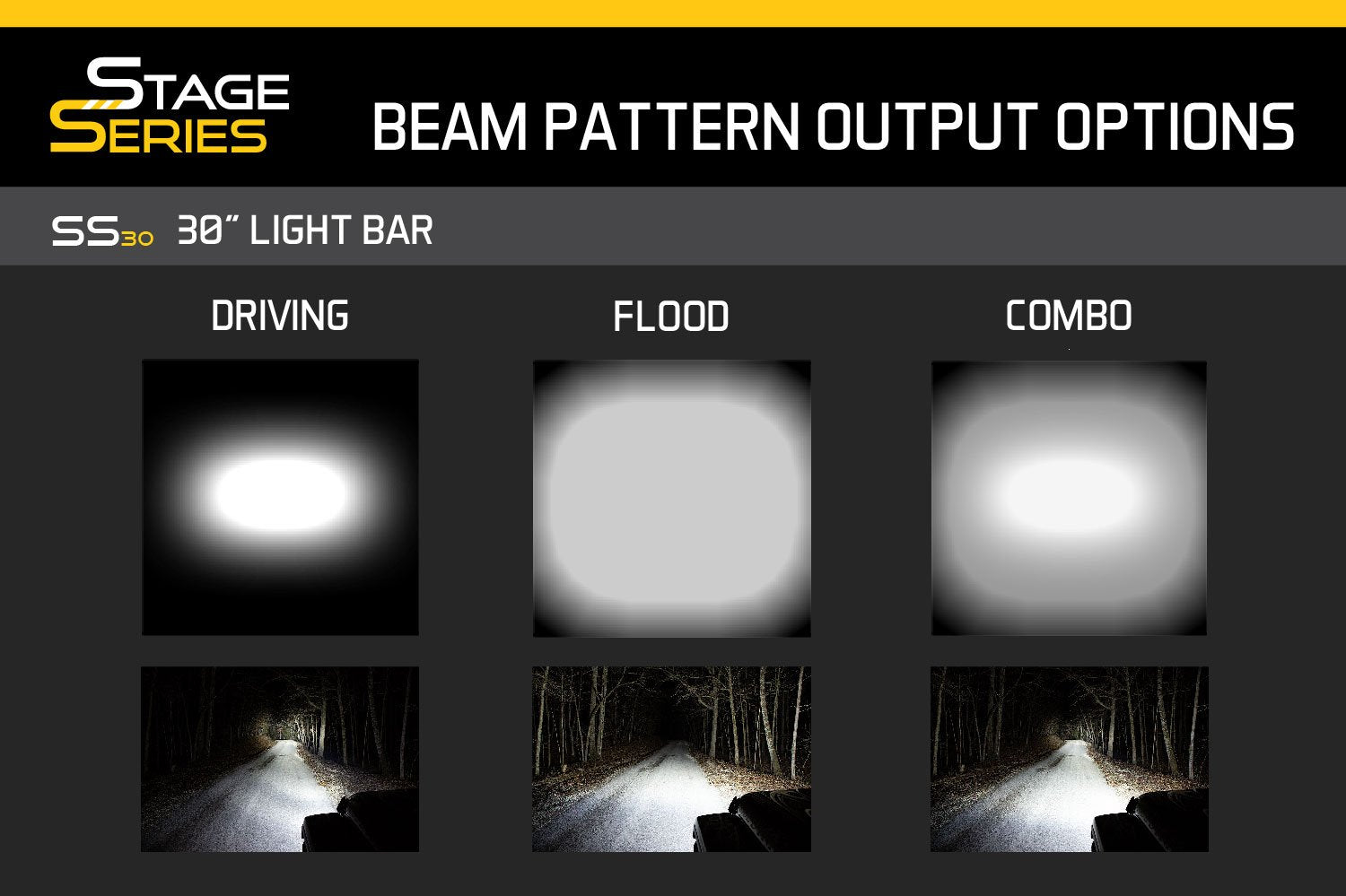

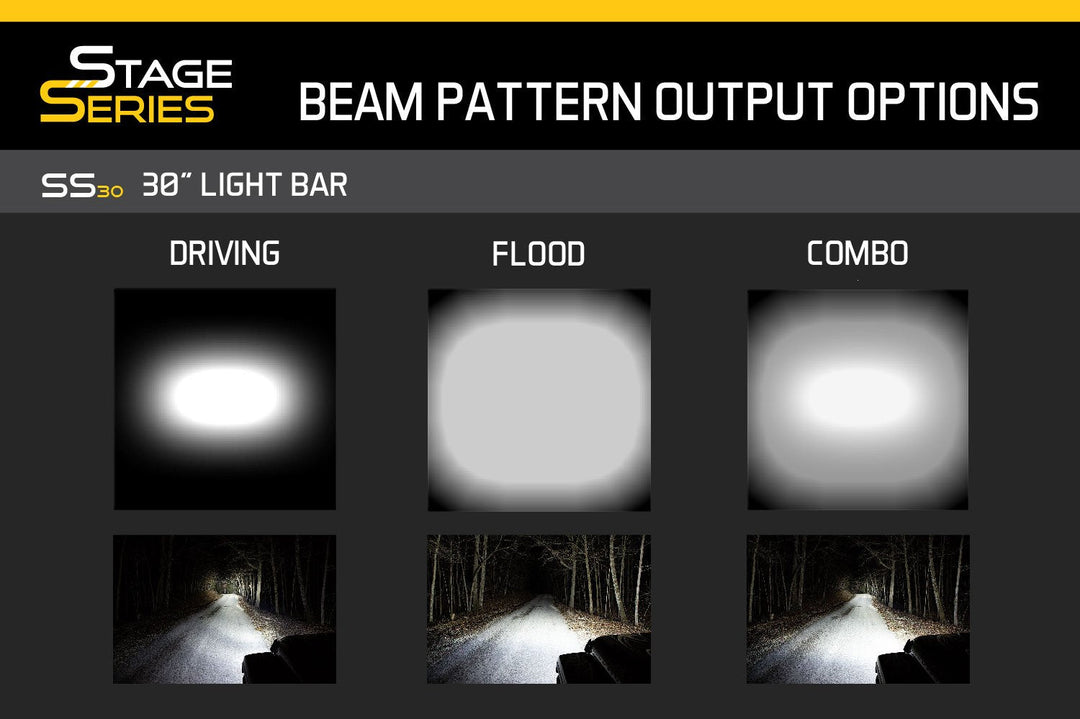

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

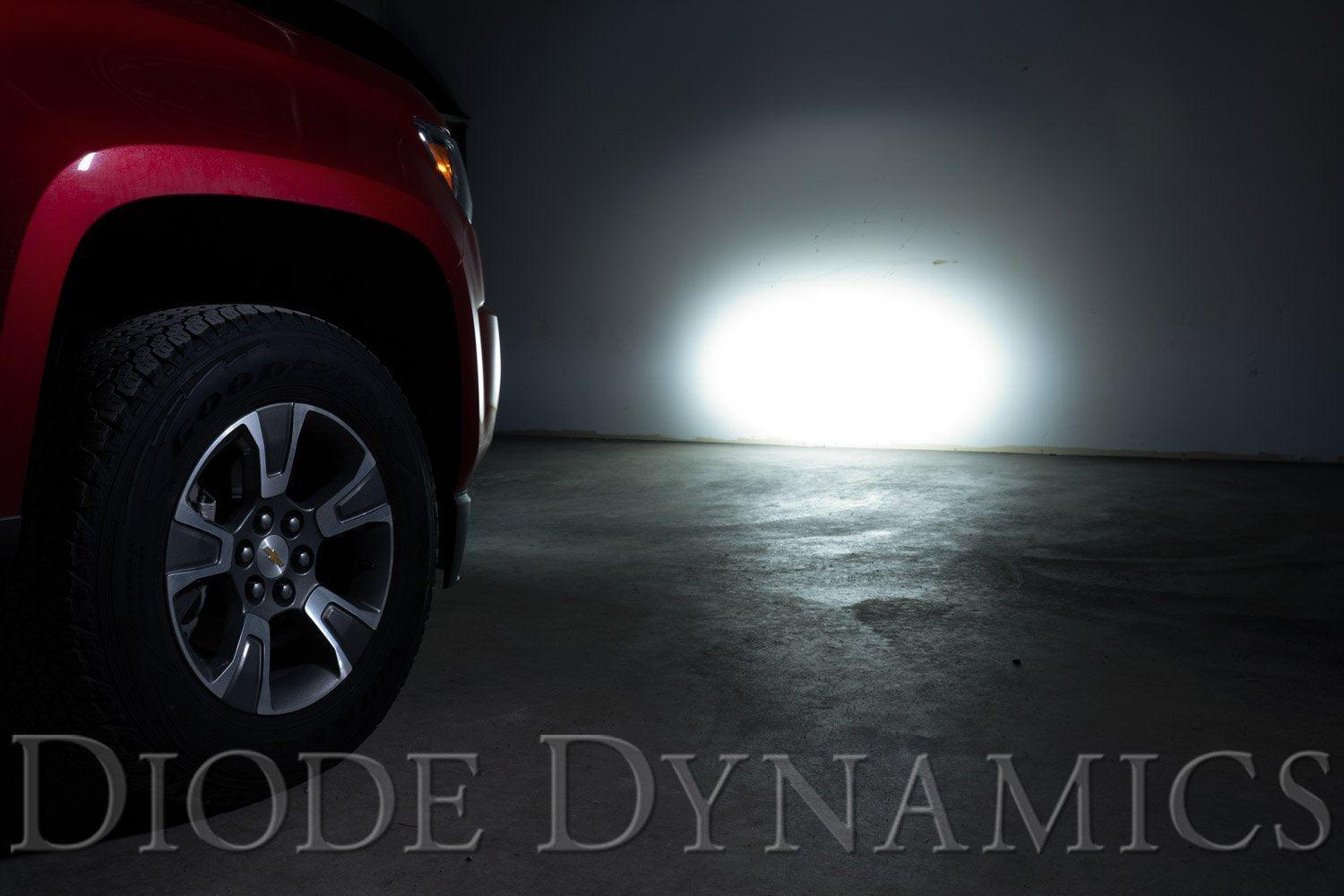

The Driving pattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.

The Flood pattern was designed to provide uniform, even illumination and a full 80Wx50H degree spread of light. Unlike generic "flood" light optics that are simply a heavily diffused spot, our flood optic is a true optically designed spread, resulting in the biggest spread in the industry! It is perfect for lighting up anything at low speeds, a backup or reverse light, or to light up a worksite.

The Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 20Wx8H degree pattern while also illuminating area around it in a full 80Wx50H degree spread. The Stage Series 30" Combo Light Bar features three driving lenses in the middle with two flood lenses on the outer edges.

light bar beam patterns

    Color Temp (CCT): 2000K, 6000K
    Beam Angle: Driving, 20°x8°, Combo (Driving and Flood), Flood, 80°x50°
    Power (watts): 137.2
    Operating Voltage: 9-24V
    Current (amps @ 14V): 9.8
    Polarity: Polarity Specific
    Operating Temperature: -40C to 85C (-40F to 185F)
    LED Emitter: Luxeon Z ES
    Connector(s): Deutsch DT Input
    Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink
    Cooling: Passive, heatsink
    Intrusion Ratings: IP68 Waterproof
    Product Dimensions (in): 31x3x1.63

    Fitment

    NOTE: This kit is compatible with the ZR2 Bison trim level. For the ZR2 trim level, minor trimming of the plastic air duct is required for proper fitment.

    Make: Chevrolet
    Model: Colorado
    Years: 2015, 2016, 2017, 2018, 2019, 2020
    Electrical Compatibility: No electrical issues (tested and confirmed)
