Stage Series LED Lightbar Kit for 2014-2024 Toyota 4Runner Diode Dynamics

Sale price$420.00 CAD
/
  • WHAT'S INCLUDED IN THE BOX:

Two (2) application-specific SS6 brackets for installation on the 2014-2023 Toyota 4Runner
Two (2) SS6 Stage Series lightbars
One (1) heavy-duty dual output 2-pin offroad wiring harness
One (1) aux switch adapter wire
Mounting hardware and guide

Warranty: 8 year warranty


COLOR
OPTIC
  • Free shipping within Canada on orders over 150$
  • Special Order Item, Usually Ships Within 3-7 Business Days

Features

  • Direct fitment on the 2014-2019 Toyota 4Runner and 2014-2024 Toyota 4Runner TRD Pro.

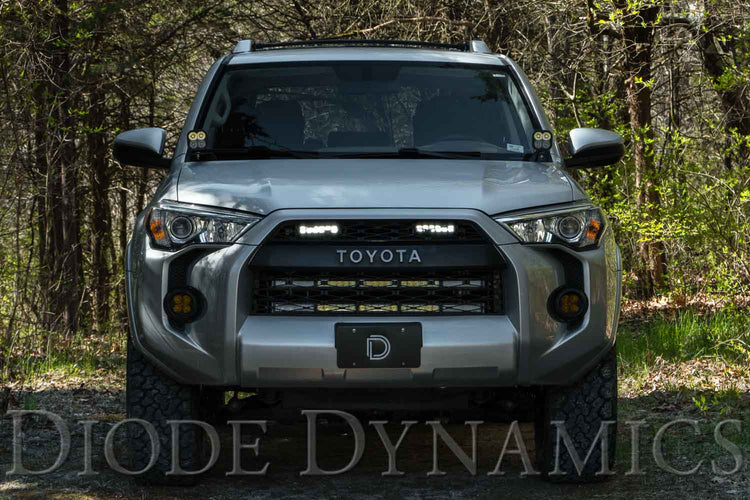

  • Allows you to mount two 6” light bars in the upper grille opening.
  • Street legal output as Driving Lights.
  • Utilizes existing mounting points for easy installation - no cutting or drilling required.

Overview

Perfect Fitment. The SAE/DOT LED Lightbar Kit for the 2014-2024 Toyota 4Runner from Diode Dynamics allows you to mount a pair of SS6 Stage Series 6" Light Bars in the upper grille opening. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!

Street Legal Output. This kit isn't just for off road! It is legal for on-road use as driving lights (Please check your local laws and regulations for aiming, installation, and applicability). With the included plug-and-play wiring harness, you can control the kit through your toggle switch.

Designed For Performance. Using optical simulation modeling, Diode Dynamics Stage Series light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

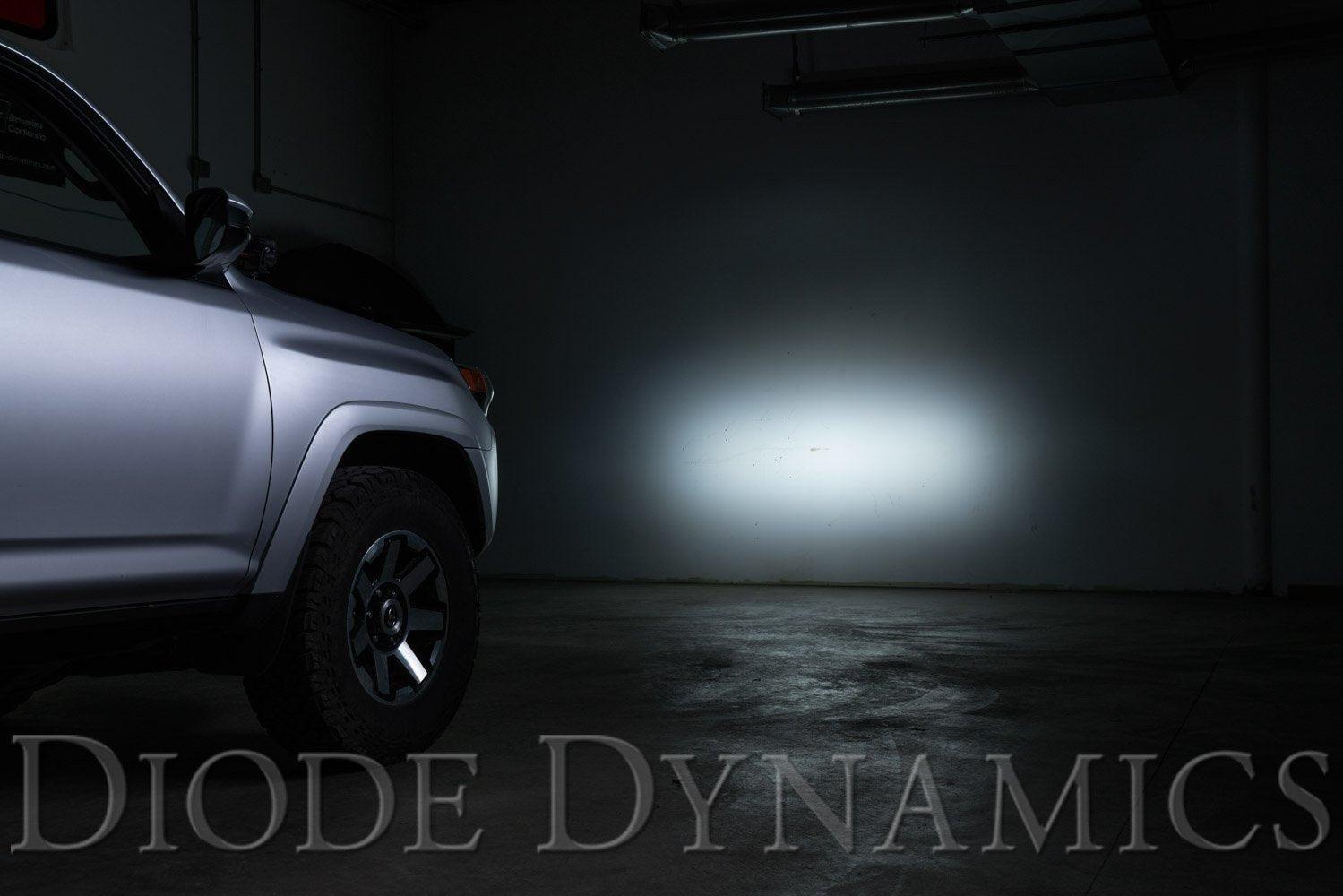

The Driving pattern was designed to supplement your high beams. Rather than a simple "spot" pattern, the Stage Series Driving pattern has a rectangular 20Wx8H degree pattern that is far more useful for directing light downrange at high speeds.

The Wide pattern provides an extremely wide field of view, without wasting any light in the sky above and provides a 100Wx8H degree spread of light. It was designed to supplement your fog lights and is perfect for driving in inclement weather.

light bar beam patterns

    Specifications

    Color Temp (CCT): 2000K, 6000K
    Beam Angle: Wide, 100°x8°, Driving, 20°x8°
    Power (watts): 26.6
    Operating Voltage: 9-24V
    Current (amps @ 14V): 1.9
    Operating Temperature: -40C to 85C (-40F to 185F)
    LED Emitter: Luxeon Z ES
    Connector(s): Deutsch DT Input
    Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink
    Cooling: Passive, heatsink
    Product Dimensions (in): 7x3x1.63

    Fitment

    NOTE: Compatible with all 2014-2019 trims, but only compatible with 2020-2024 TRD Pro trim package.

    Make: Toyota
    Model: 4Runner
    Years: 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024
    Electrical Compatibility: No electrical issues (tested and confirmed)
