Overview. If you are looking to add some serious functionality to your Bronco look no further! The Stage Series Fog Pocket Kit for the 2021-Present Ford Bronco from Diode Dynamics adds both road-legal fog lights and powerful offroad lighting.
The CAD-designed brackets allow you to mount two SS3 LED Pods and four SSC2 LED pods in the factory bumper openings. With the included harnesses you'll be able to switch between road-legal fog lights and offroad lights with ease using your factory aux switch bank.

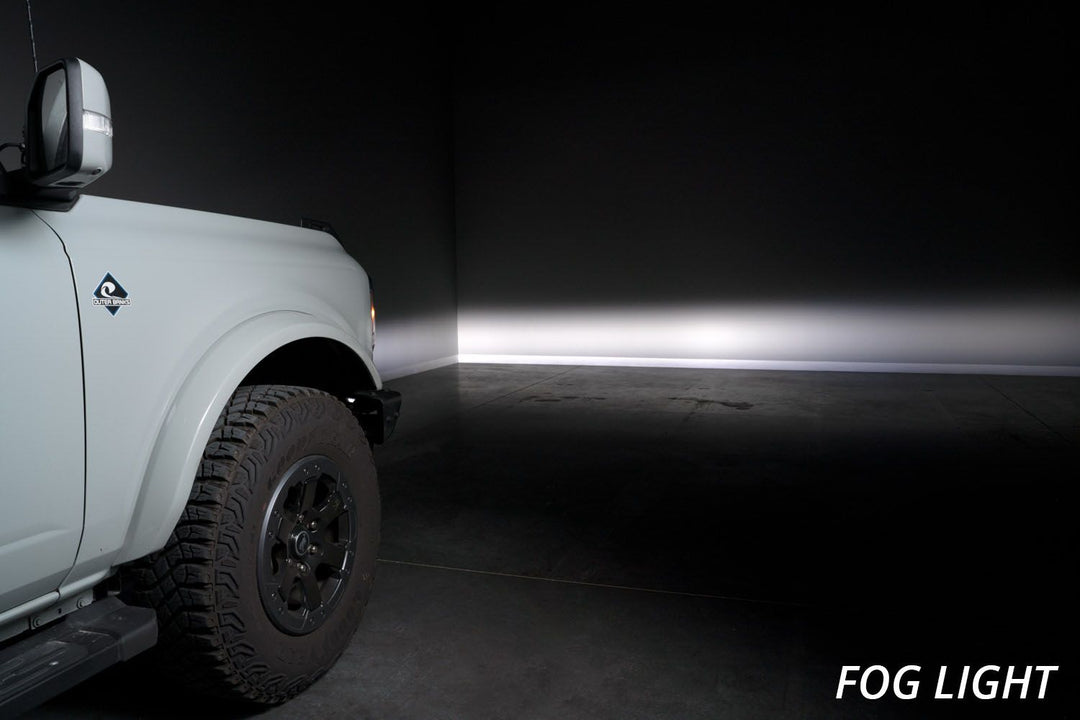

Lighting for Every Situation. This kit includes two SS3 LED Pods in the fog beam pattern and four SSC2 LED pods in the combo beam pattern. This combination gives you different options whether you are on or offroad. All options use high-intensity LED emitters and TIR optics for unmatched focus and overall output.
Separate Switches. With the included harnesses the lights on this kit can be controlled independently using the factory aux switches allowing you to switch between road-legal fog lights and offroad lights with ease. If your Bronco doesn't have a factory aux switch bank you can pick up an extra wiring harness to control it using a toggle switch.
SAE Compliant. When installed as a pair and aimed in accordance with your state's regulations the Fog pattern meets SAE J583 standard as a Foglamp for legal on-road use.
Features:
- Stage Series Fog Pocket Kit for 2021 Ford Bronco, White Max
- Bolt-on fitment compatible with Ford Bronco 2021-Present with steel bumper.
- Adds SAE-compliant fog lights and powerful offroad lighting.
- Harnesses included for independent control of each light.
- Backlight feature provides amber accent light.
- Highly durable powdercoated stainless steel bracket.
- Engineered and assembled in USA.
Specifications
NOTE: Specifications listed here are for each individual pod.
| SS3 LED PODS | |||||
|---|---|---|---|---|---|
| LENS COLOR/OPTICS |
PEAK BEAM INTENSITY |
ILLUMINANCE (LUX @ 10M) |
MEASURED OUTPUT (LUMENS) |
RAW OUTPUT (LUMENS) |
OUTPUT COLOR |
| Fog White Sport | 10,600 cd | 106 lux | 1,520 lm | 2,262 lm | 6000K White |
| Fog White Pro | 11,900 cd | 119 lux | 3,000 lm | 5,796 lm | 6000K White |
| Fog White Max | 18,000 cd | 180 lux | 3,500 lm | 7,920 lm | 6000K White |
| Fog Yellow Sport | 9,050 cd | 91 lux | 1,300 lm | 1,930 lm | 3000K Yellow |
| Fog Yellow Pro | 10,900 cd | 109 lux | 2,700 lm | 5,220 lm | 3000K Yellow |
| Fog Yellow Max | 12,500 cd | 125 lux | 3,500 lm | 7,920 lm | 3000K Yellow |
| SSC2 LED PODS | |||||
|---|---|---|---|---|---|
| LENS COLOR/OPTICS |
PEAK BEAM INTENSITY |
ILLUMINANCE (LUX @ 10M) |
MEASURED OUTPUT (LUMENS) |
RAW OUTPUT (LUMENS) |
OUTPUT COLOR |
| Combo Sport | 16,000 cd | 160 lux | 871 lm | 1,130 lm | 6000K White |
| Combo Pro | 27,000 cd | 270 lux | 1,988 lm | 2,898 lm | 6000K White |
