S170

E46-R

Regular price$42.00 CAD
/
  • WHAT'S INCLUDED IN THE BOX:
Shroud: 2x E46-R Projector Shroud

Warranty: 5 Years


  • Free shipping within Canada on orders over 350$

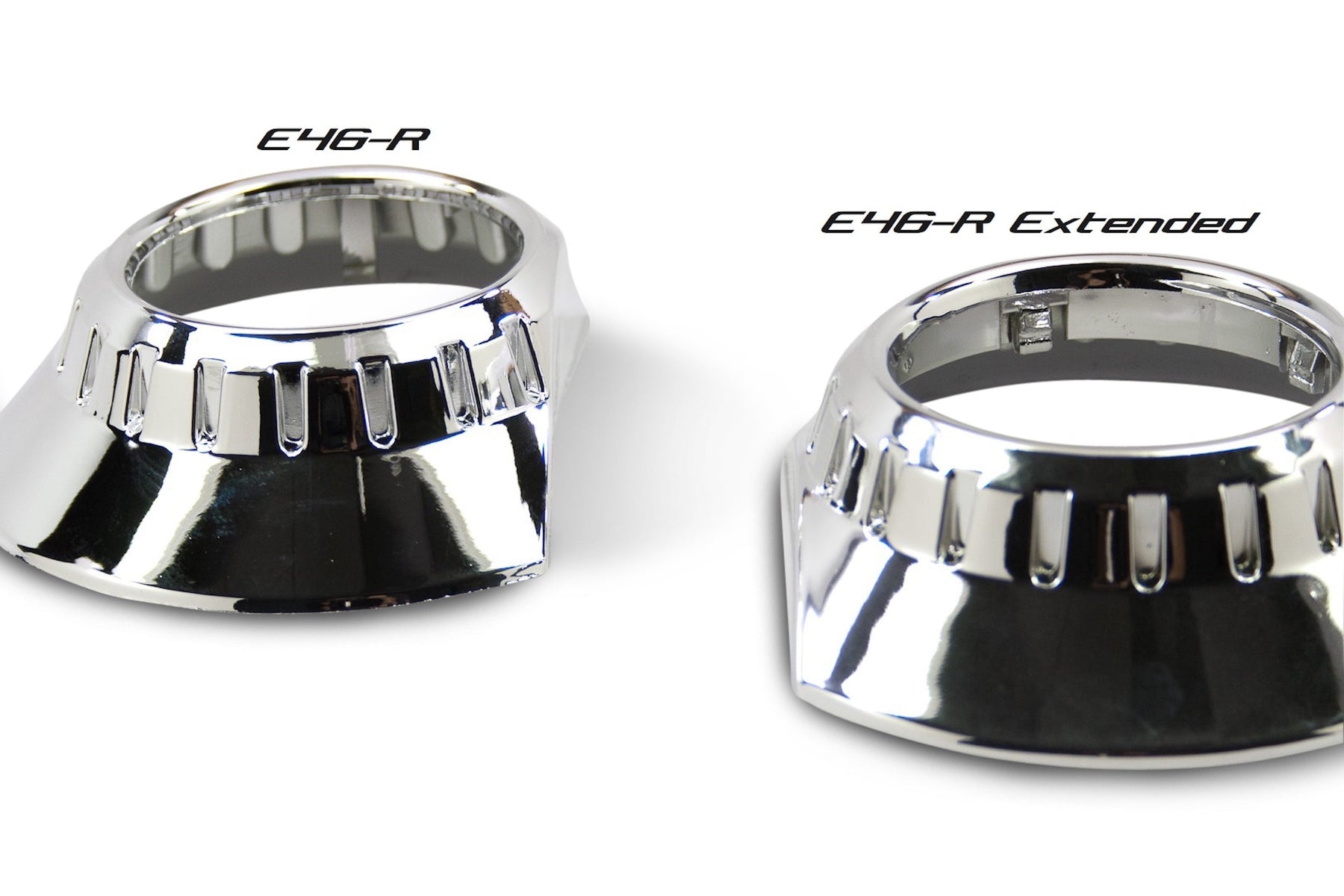

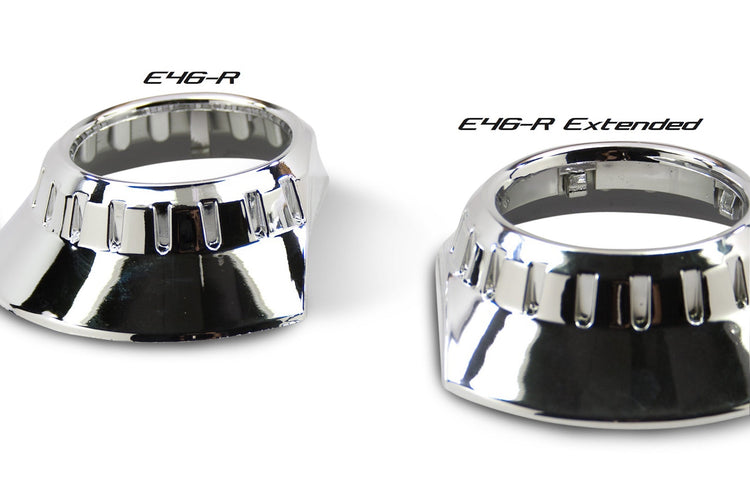

E46-R: The E46-R bezels were the first retrofit-specific component we released in early 2008, since then we've served up thousands of sets to happy customer around the world! Very clean looking, OEM style shroud that's hard to match for modern, yet clean and classic looks. Despite being one of our first shrouds, the only other design to match it's popularity is the E46-R extended (which is 10mm taller)

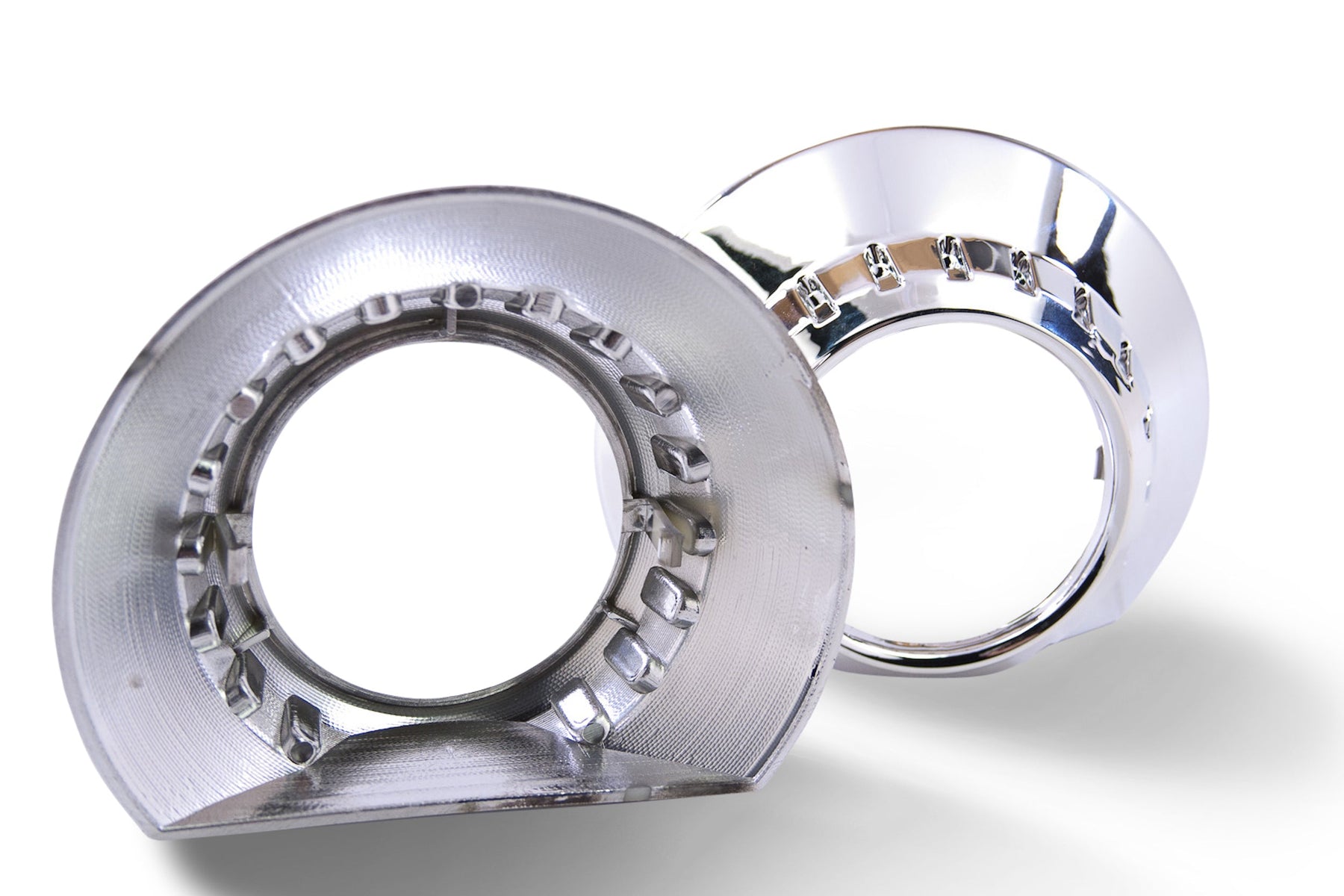

In Comparison: Don't make the mistake of thinking all shrouds are created equal. Even though less expensive alternatives may be available elsewhere: Morimoto shrouds are made from the highest quality plastic and have by far the most durable metalized chrome finishes. The cheap-o's out there are flimsy enough to deform from the heat just a 35W HID bulb, and their chrome finish easily flakes off.

Mounting: Centric Rings are not included by default, but are highly recommended to improve ease of installation on many projectors. The Centric Rings are simple reducers that clip into the shroud to reduce the inside diameter, making them more of a "press fit" onto the lens holder of the projector. Note: centric rings require cutting to be used with E46-R shrouds! JB Quik Weld is STRONGLY recommended in order to prevent the shrouds from vibrating loose over time.

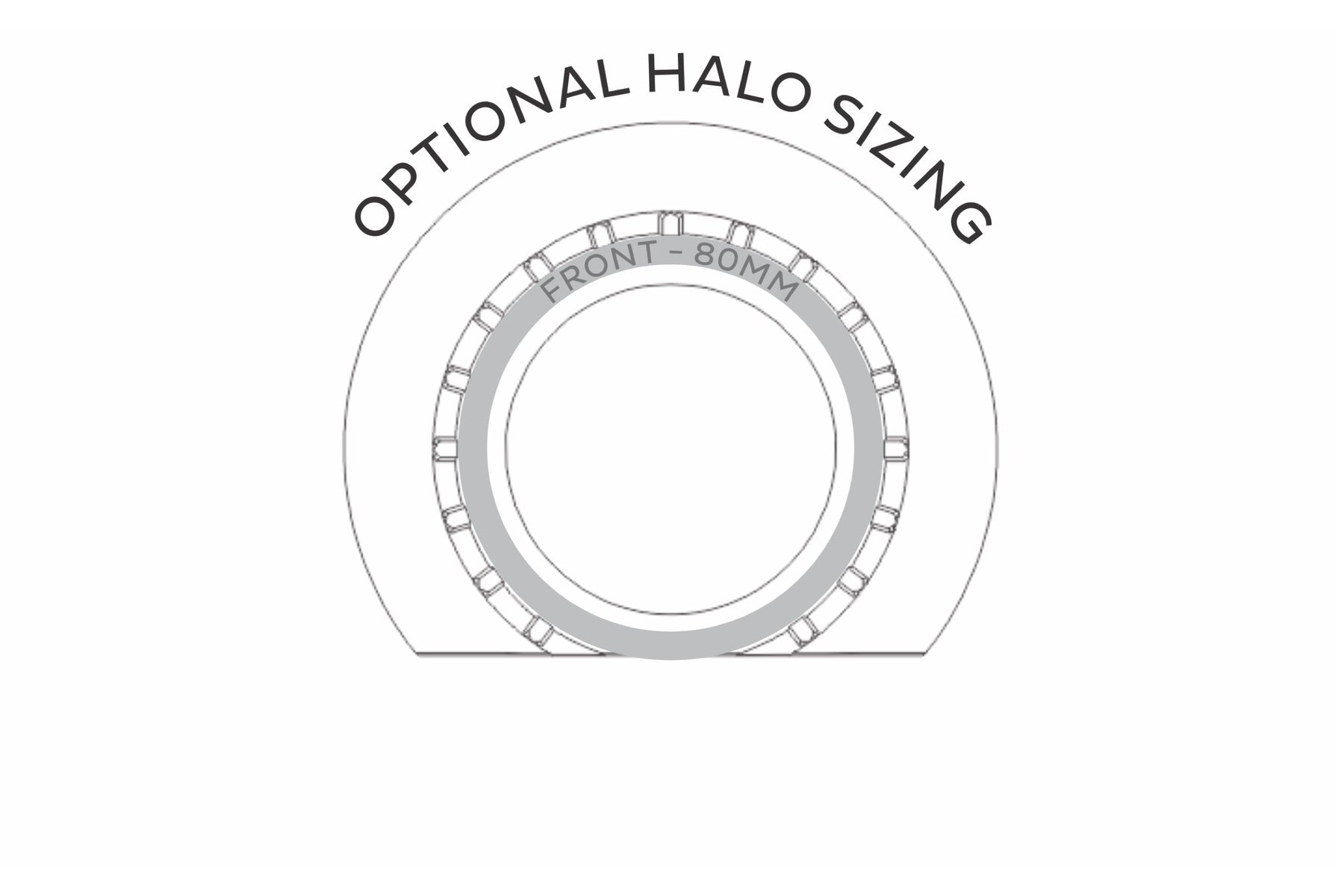

LED Halos: Are a unique and effective way to further customize the look of your projector retrofit. The Profile Pivot (switchback) and Profile Pixel (RGB) systems are easy to mount on the front of your shrouds, are reliable, and of course awesome looking. To determine which size is best for you - check out the size-guide in the "In Action" images section below.

Trimming: Please note that trimming shrouds is a common task when retrofitting. Whether required to clear part of the projector, or fit within the geometry of your headlight housing; it's normal. Luckily, they're made of plastic - making that easily possible. We recommend a Dremel hand tool with EZ Lock cutting wheels to make the job easy.

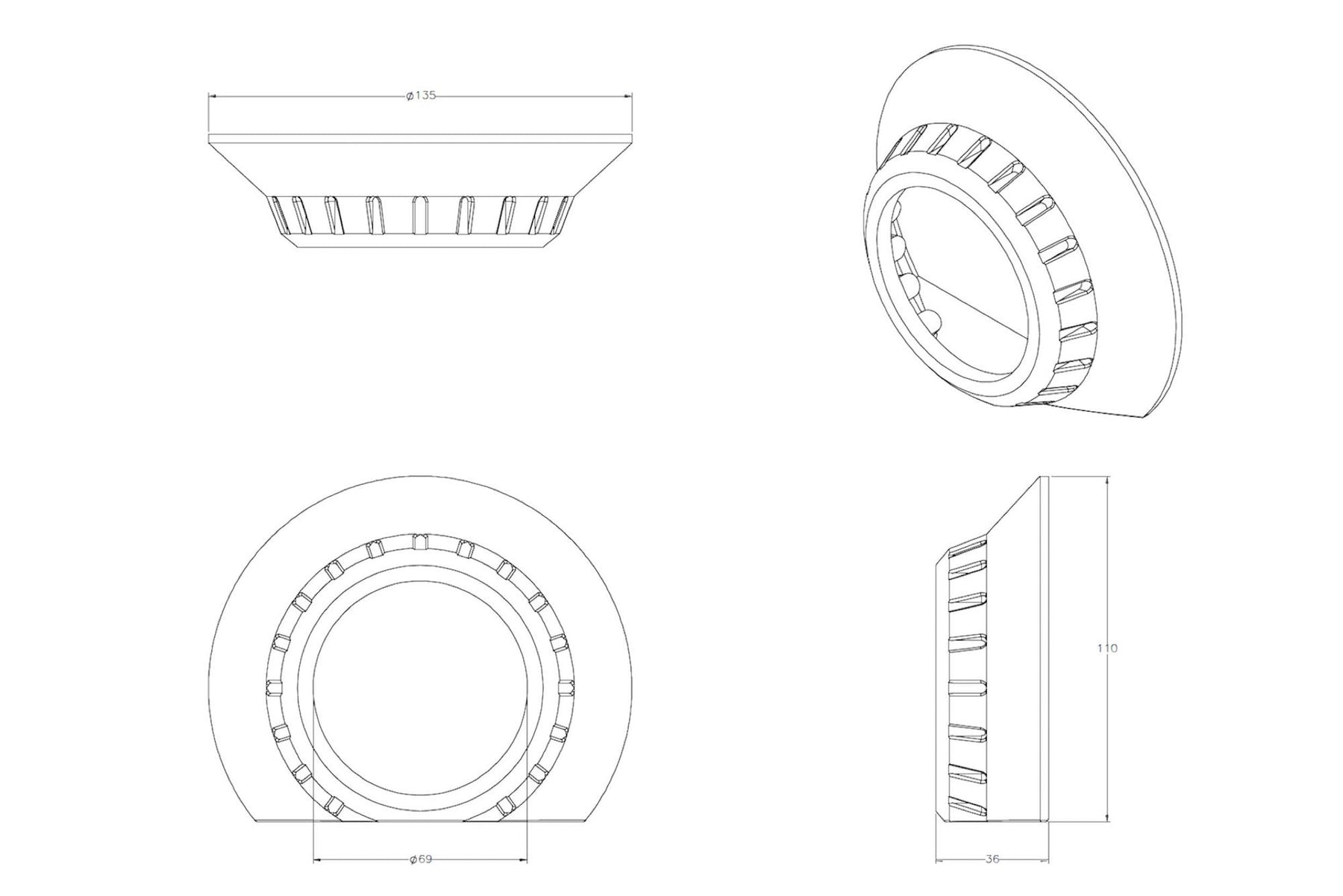

Dimensions: 110mm H, 135mm W, 36mm D

Finish: Forever Finish Chrome

Halo Size: 80mm (Front)

MORIMOTO PROJECTORS: All except Matchbox

OEM PROJECTORS: Most except TL, LS430, LS460, Q45

LENS DIAMETERS: 2.5in and 3in Compatible

LED HALOS: 80mm (Front)

MOUNTS WITH: JB Quik Weld
