Features
- Direct replacement compatible with Chevrolet Silverado fog lamps.
- Advanced TIR optics provide high efficiency and focus
- SAE-compliant road-legal output

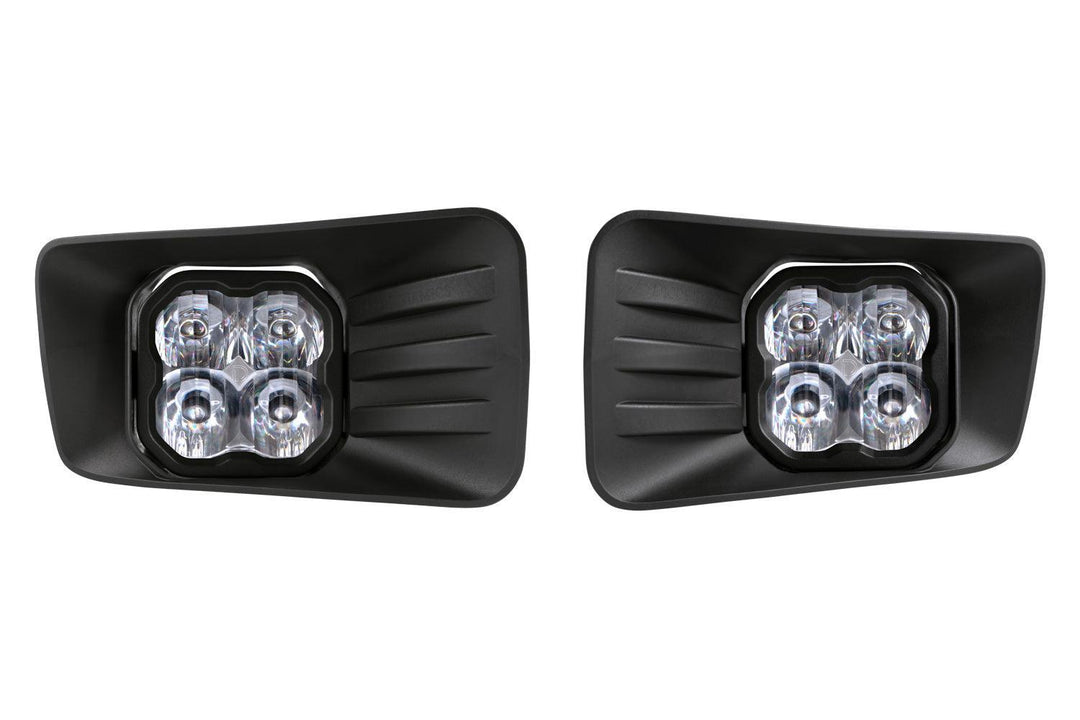

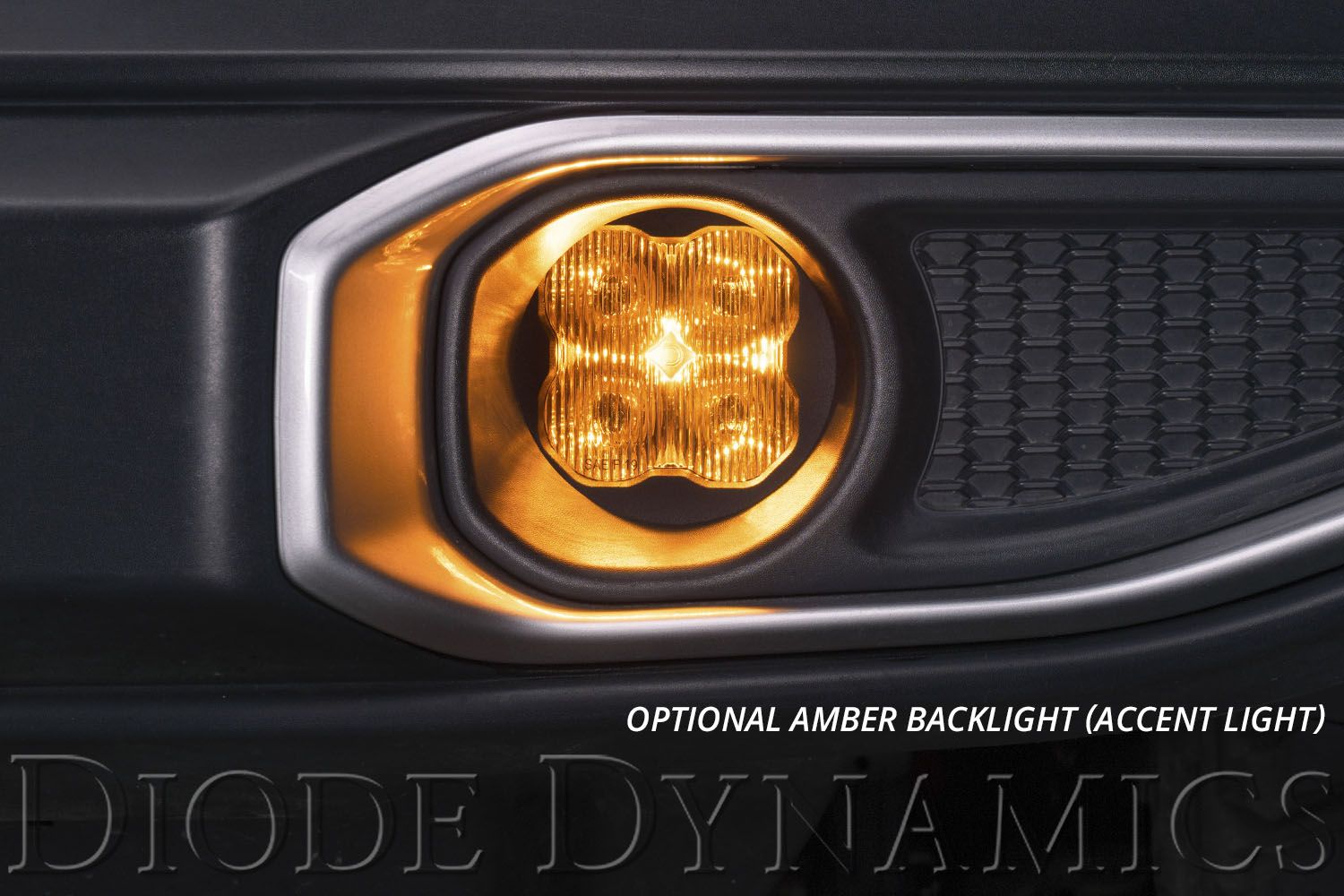

- Includes one-piece molded bezel for factory-style appearance
- Plug and play no modification needed
- Durable powdercoated aluminum extrusion
- Engineered and Assembled in USA

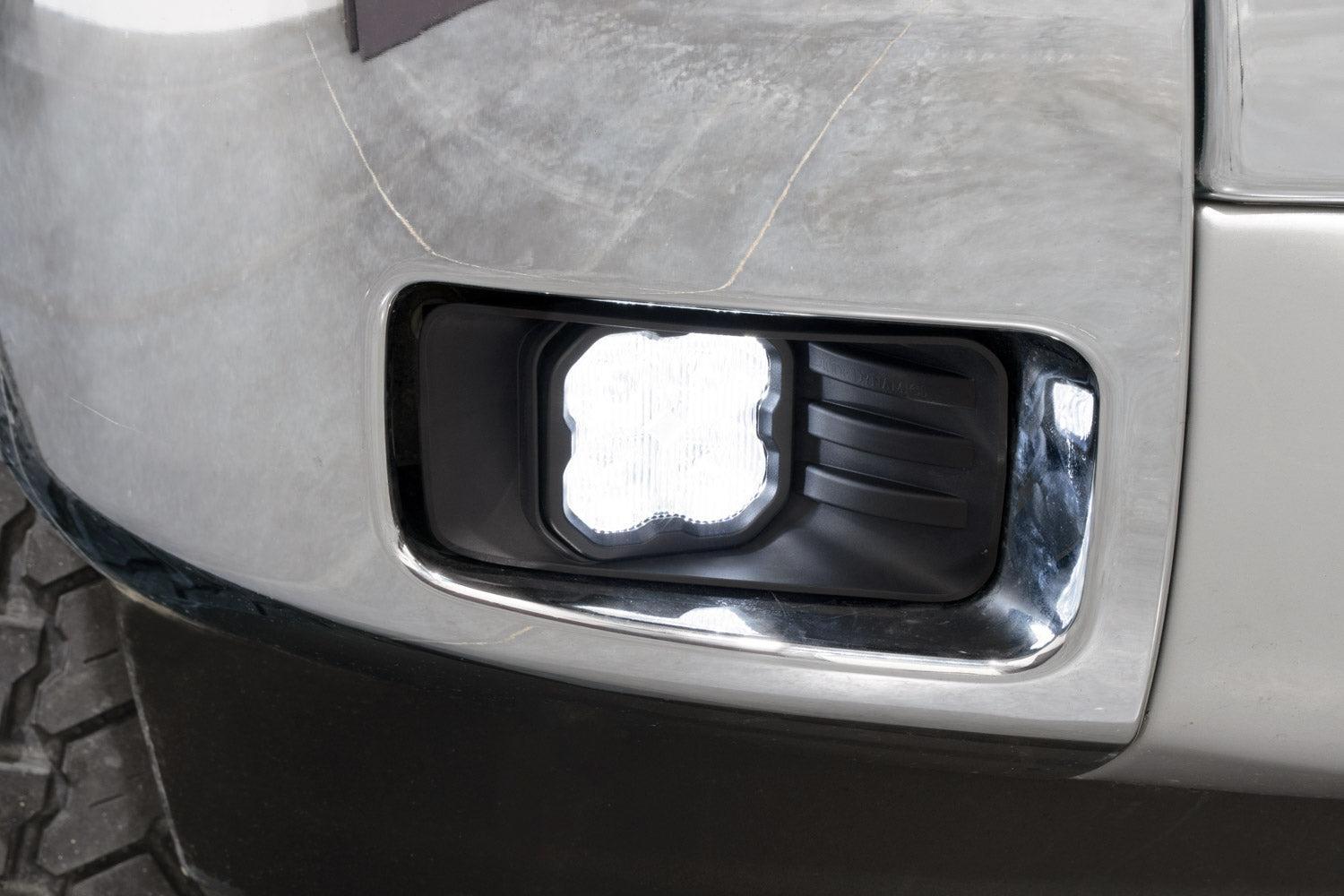

Overview. Upgrade your fog lights with our SS3 Type CH Fog Light Bracket Kit! Featuring higher output intensity than any other 3in light on the market these LED pods have been designed for maximum functionality with custom-engineered TIR optics shining in highly useful beam patterns all in a durable package. With the included one-piece molded bezel the SS3 Fog Kit has a clean factory-style appearance only much brighter!

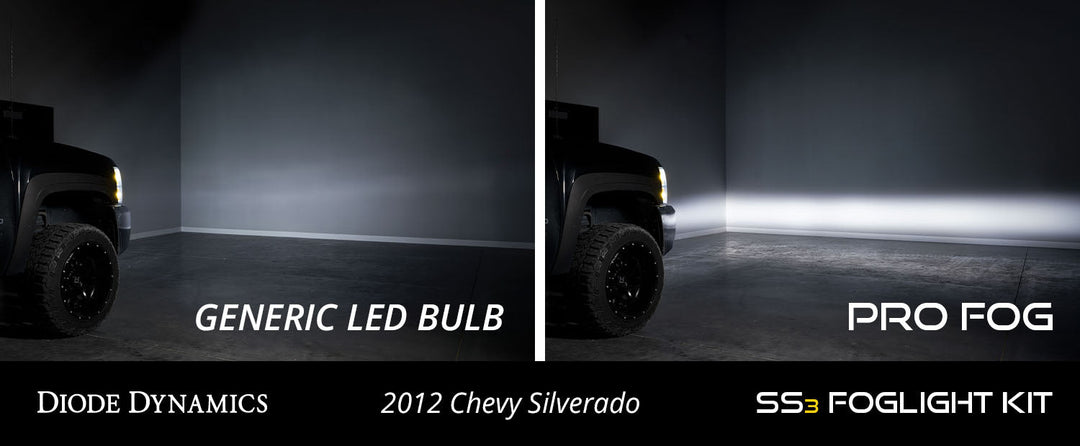

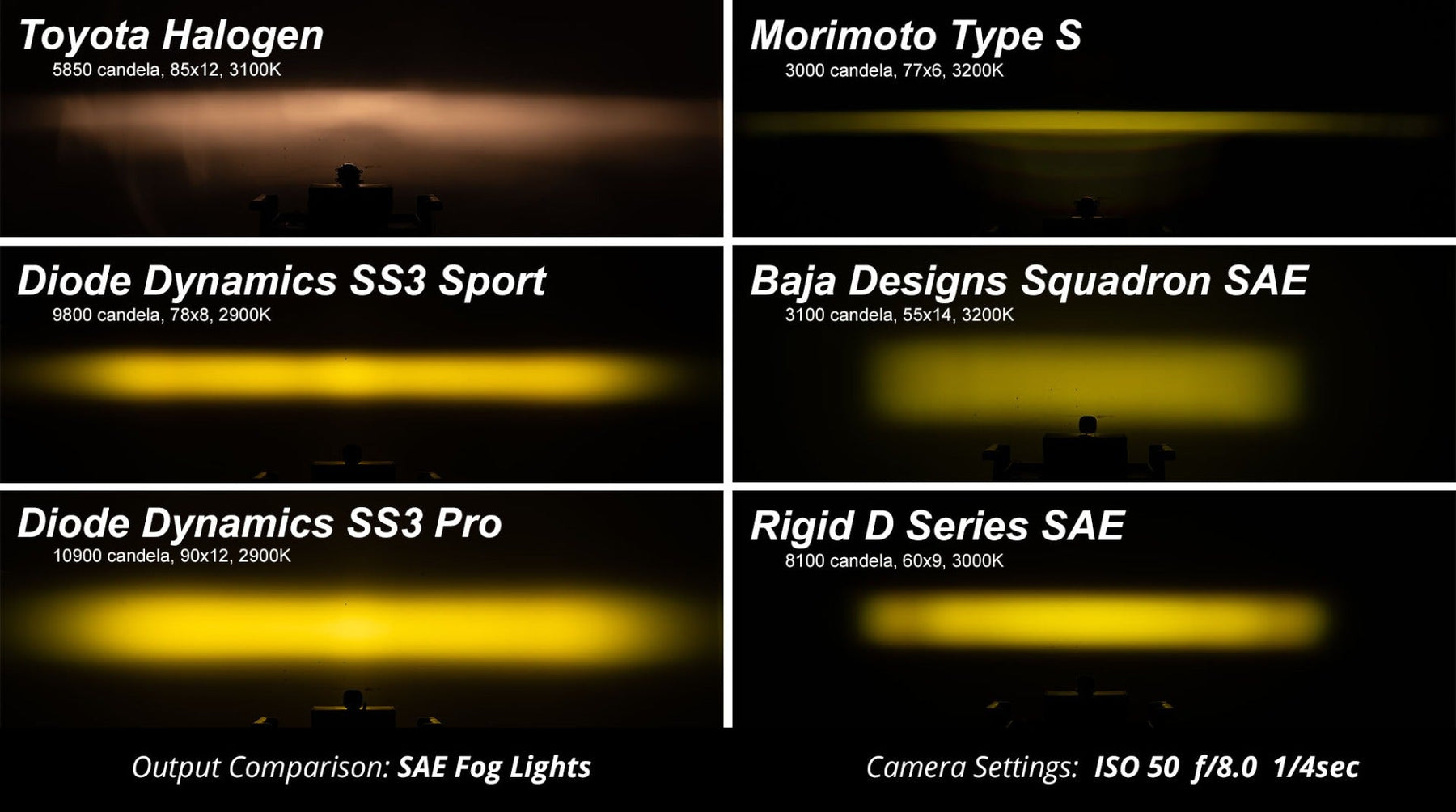

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare so not all of the light shines on target. Instead the custom-engineered TIR optic in the SS3 collects all of the light from the LED and directs it only where you need it drastically reducing glare and improving total efficiency.
Plug and Play. Thanks to custom-molded brackets the SS3 Fog Light Bracket Kit can be installed on your vehicle in minutes. Simply remove your factory fog light assembly and ours will bolt right in its place! A pair of 5202-size and PSX26W-size adapters are included with the kit allowing you to connect the lights to your factory bulb sockets. The lights can be easily aimed after installation using the factory aiming screw.
SAE Compliant. When installed as a pair and aimed in accordance with your state's regulations the Driving White pattern meets SAE J581 standard as a Driving/Auxiliary High Beam Light and the Fog pattern meets SAE J583 standard as a Foglamp for legal on-road use.
Specifications
NOTE: Specifications listed here are for each individual pod.
| LENS COLOR/OPTICS |
PEAK BEAM INTENSITY |
ILLUMINANCE (LUX @ 10M) |
MEASURED OUTPUT (LUMENS) |
RAW OUTPUT (LUMENS) |
OUTPUT COLOR |
|---|---|---|---|---|---|
| Driving White Sport | 54,700 cd | 547 lux | 1,520 lm | 2,262 lm | 6000K White |
| Driving White Pro | 66,500 cd | 665 lux | 3,000 lm | 5,796 lm | 6000K White |
| Fog White Sport | 10,600 cd | 106 lux | 1,520 lm | 2,262 lm | 6000K White |
| Fog White Pro | 11,900 cd | 119 lux | 3,000 lm | 5,796 lm | 6000K White |
| Fog White Max | 18,000 cd | 180 lux | 3,500 lm | 7,920 lm | 6000K White |
| Fog Yellow Sport | 9,050 cd | 91 lux | 1,300 lm | 1,930 lm | 3000K Yellow |
| Fog Yellow Pro | 10,900 cd | 109 lux | 2,700 lm | 5,220 lm | 3000K Yellow |
| Fog Yellow Max | 12,500 cd | 125 lux | 3,500 lm | 7,920 lm | 3000K Yellow |
Datasheet(s) (click to download): SS3 Sport White Standard, SS3 Sport Yellow Standard, SS3 Pro White Standard, SS3 Pro Yellow Standard, SS3 Max White Standard, SS3 Max Yellow Standard
