SS3 LED Fog Light Kit for 2012-2014 Lexus IS250C A/T Convertible

Sale price$370.00 CAD
/
  • WHAT'S INCLUDED IN THE BOX:

Two (2) SS3 3" Angled LED pods
Two (2) Type CGX brackets
Two (2) H11 2-pin DT adapters
One (1) H11 4-pin DT backlight tap wire kit
Mounting hardware
Mounting guide
Quantity: Pair (Left and Right Side)
Warranty: 8 year warranty


COLOR & OPTIC
POWER LEVEL
OPTIONAL BACKLIGHT
  • Free shipping within Canada on orders over 150$

Features

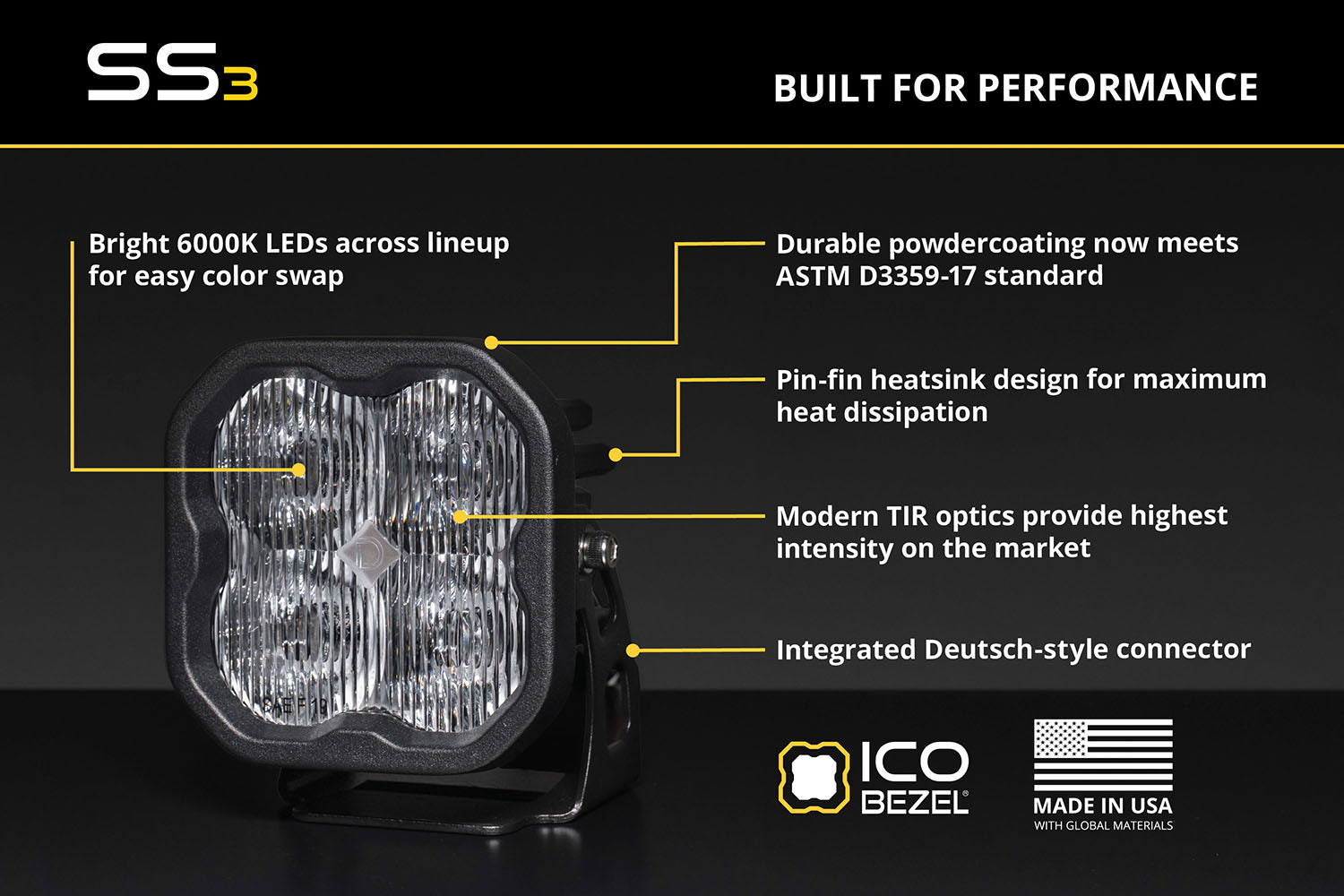

  • Advanced TIR optics provide high efficiency and focus
  • SAE-compliant road-legal output
  • Includes angled bezel, for factory-style appearance
  • Plug and play, no modification needed
  • Durable powdercoated aluminum extrusion
  • Engineered and Assembled in USA



Overview

Overview. Upgrade your fog lights with our SS3 Type CGX Fog Light Bracket Kit! Featuring higher output intensity than any other 3” light on the market, these LED pods have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package. With the included angled bezel, the SS3 Fog Kit has a clean, factory-style appearance, only much brighter!

Plug and Play. Thanks to custom-molded brackets, the SS3 Fog Light Bracket Kit can be installed on your vehicle in minutes. Simply remove your factory fog light assembly and ours will bolt right in its place! Wire adapters are included to connect the lights to your factory bulb sockets - no additional wiring needed!

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

SAE Compliant. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.

SAE Fog provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle. Choose your output color of cool white or yellow, which is often said to help cut through inclement weather.

Backlight Functionality. The Stage Series 3" LED Pod is now available with a distinctive backlight, in a brilliant amber color. This integrated backlight gives you an additional accent light, along with the main beam. The SS3's backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products. To power the backlight, use the included harness to tap your desired vehicle function.

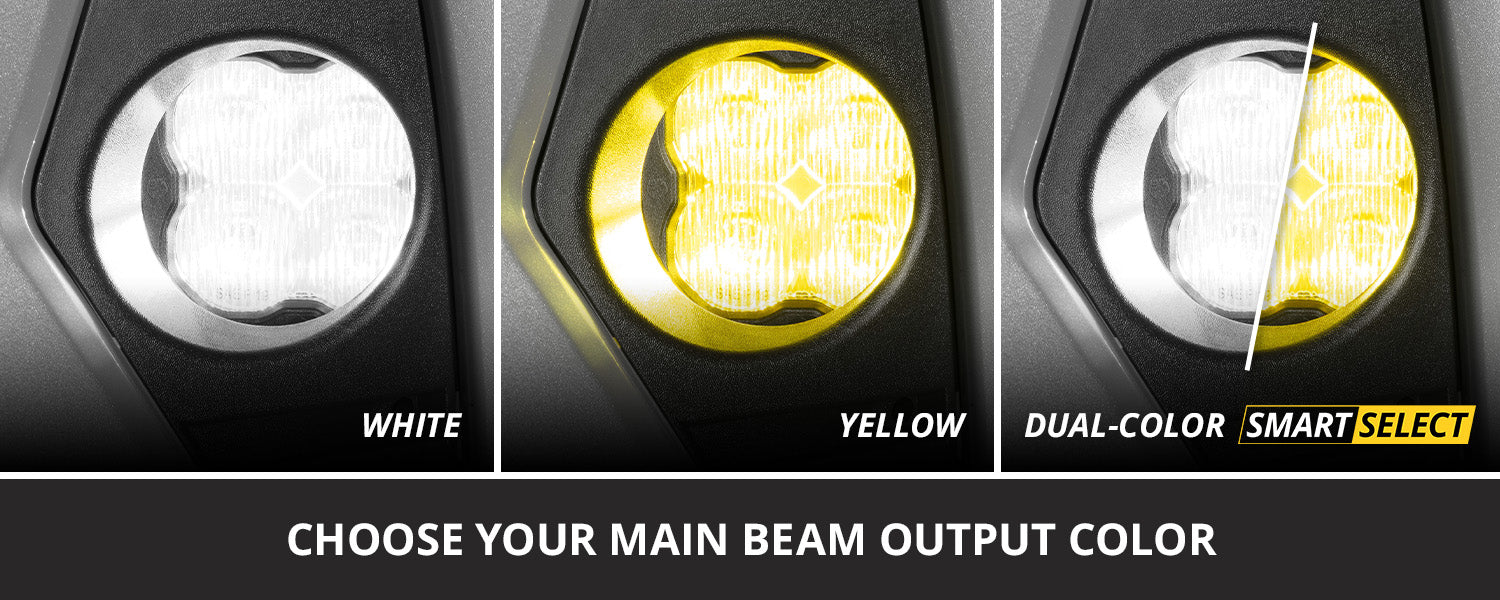

White or Yellow. All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.

Sport, Pro, or Max. Stage Series LED pods are available at three different power levels. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses high-intensity LEDs, and is the best bang for the buck you’ll find. The Pro model steps things up in a big way, with double the total power. Finally, the Max model is designed with cutting-edge automotive emitters, for both high power and extreme intensity. This brand new technology comes at a cost, but if you’re looking for the absolute best in lighting performance, the SS3 Max is the answer.

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Specifications

LENS COLOR/OPTICS

PEAK BEAM INTENSITY
(CANDELA)

ILLUMINANCE
(LUX @ 10M)
MEASURED OUTPUT
(LUMENS)
RAW OUTPUT
(LUMENS)
OUTPUT COLOR
Fog White Sport 10,600 cd 106 lux 1,520 lm 2,262 lm 6000K White
Fog White Pro 11,900 cd 119 lux 3,000 lm 5,796 lm 6000K White
Fog White Max 18,000 cd 180 lux 3,500 lm 7,920 lm 6000K White
Fog Yellow Sport 9,050 cd 91 lux 1,300 lm 1,930 lm 3000K Yellow
Fog Yellow Pro 10,900 cd 109 lux 2,700 lm 5,220 lm 3000K Yellow
Fog Yellow Max 12,500 cd 125 lux 3,500 lm 7,920 lm 3000K Yellow

Power (watts): Sport: 14.5, Pro: 36, Max: 38.5
Current (amps @ 13.2V): Sport: 1.1, Pro: 2.7, Max: 3
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES, Cree XP-L HI, Osram Boost HX
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
Cooling: Passive, Pin-Fin heatsink
Compliance Ratings: SAE J575 Durability Test
Intrusion Ratings: IP69K Waterproof, High Pressure

Fitment
Note: This kit is a replacement for OEM fog lamps. If your vehicle does not have fog lamps, additional hardware and wiring may be needed for installation.

Application: Fog Light
Make: Lexus
Model: IS250C A/T Convertible
Years: 2012, 2013, 2014
