SS6 LED Fog Light Kit for 2022-2023 Toyota Tundra

Regular price$403.00 CAD
/

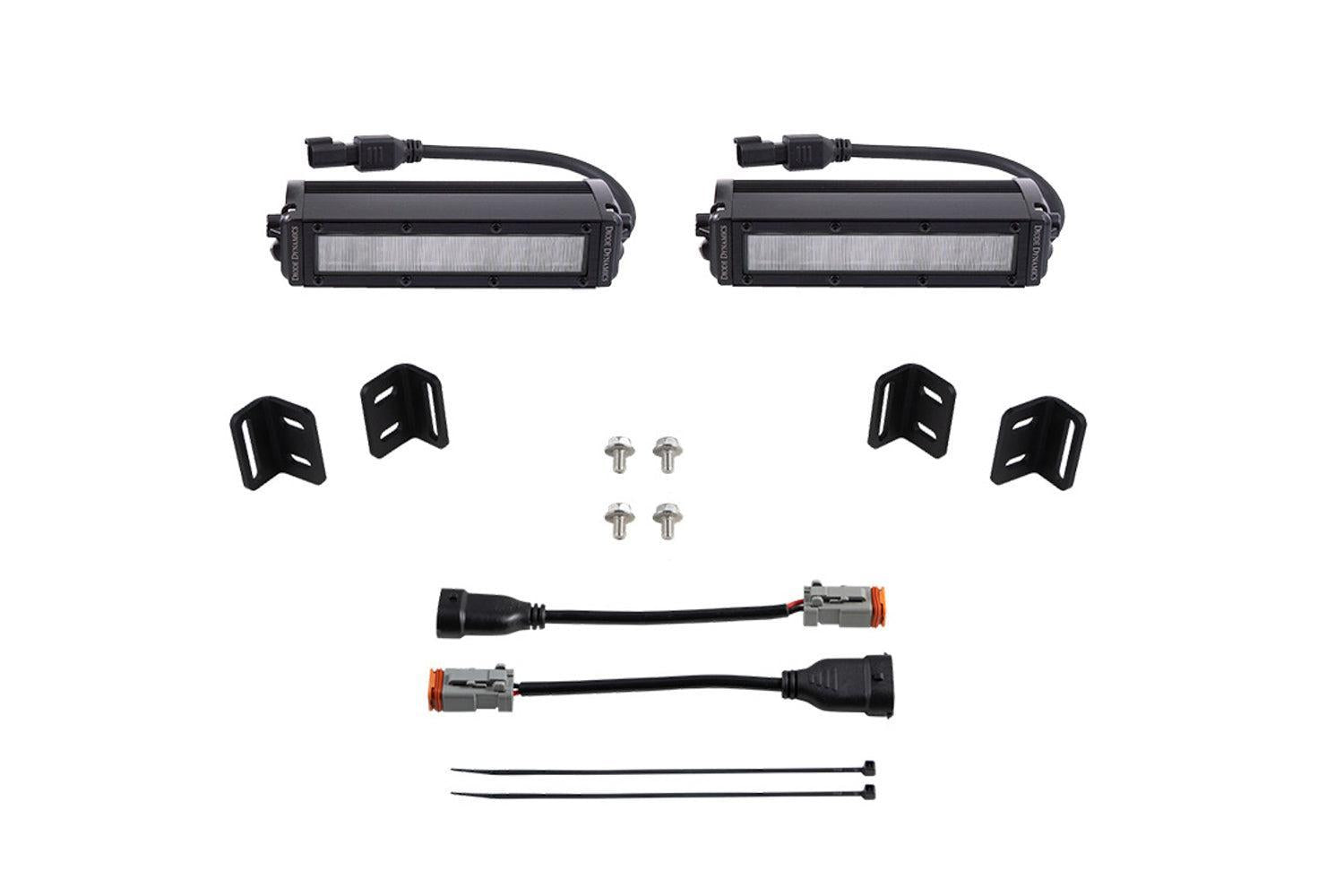

WHAT'S INCLUDED

Included in the box:

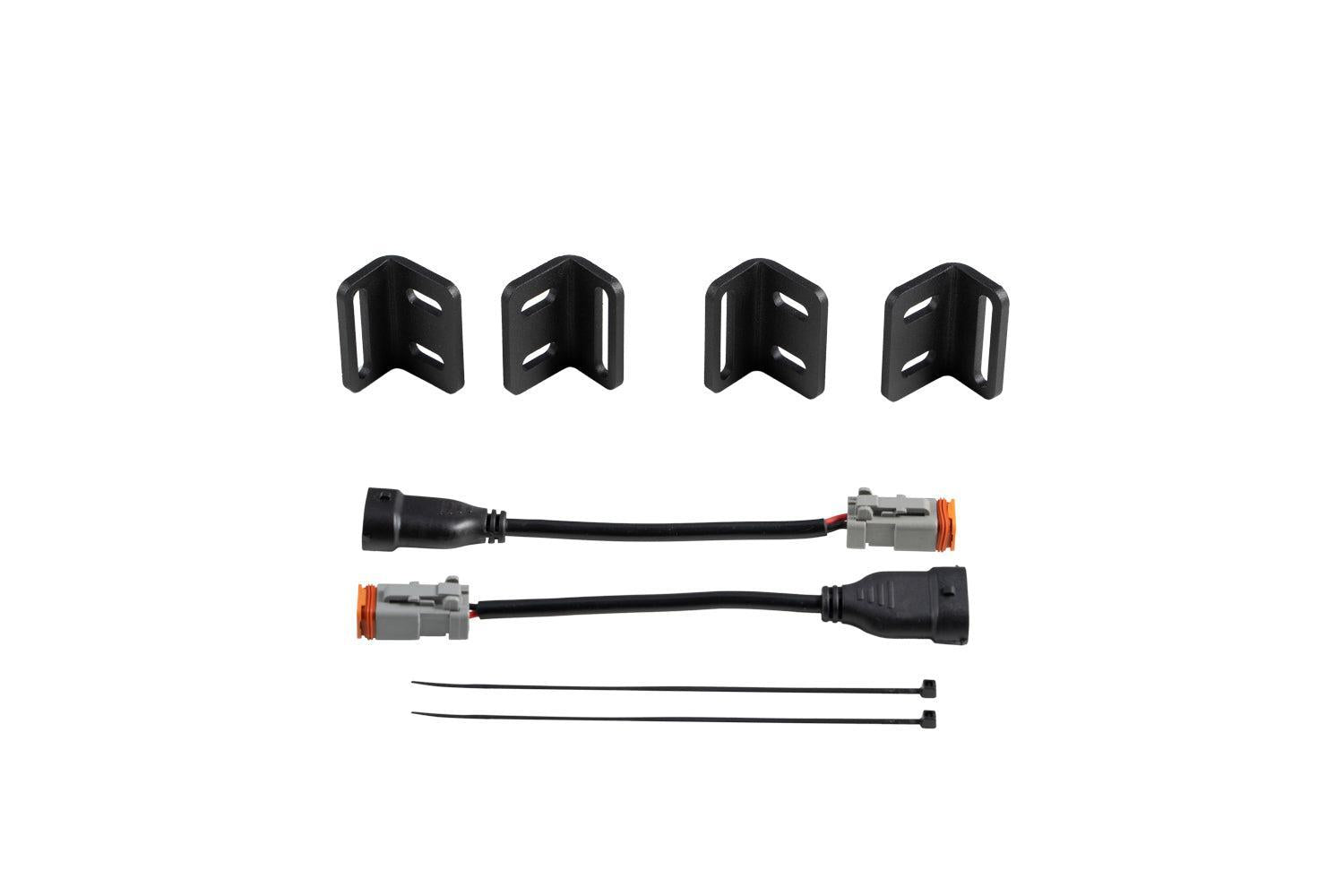

Four (4) Application-specific brackets for installation on 2022 Toyota Tundra
Two (2) SS6 Stage Series 6 inch Light Bars
Two (2) H11 DT Adapters
Installation Guide

Warranty: 8 year warranty

COLOR & OPTICS
  • Free shipping within Canada on orders over 150$
  • Special Order Item, Usually Ships Within 3-7 Business Days

Features

  • Direct fitment on 2022+ Toyota Tundra.
  • Replaces the factory fog lights with two 6 inch light bars.
  • Road legal output as fog lights.
  • CAD-designed for perfect fitment and OEM-like appearance.
  • Utilizes existing mounting points for simple installation - no cutting or drilling required.

Overview

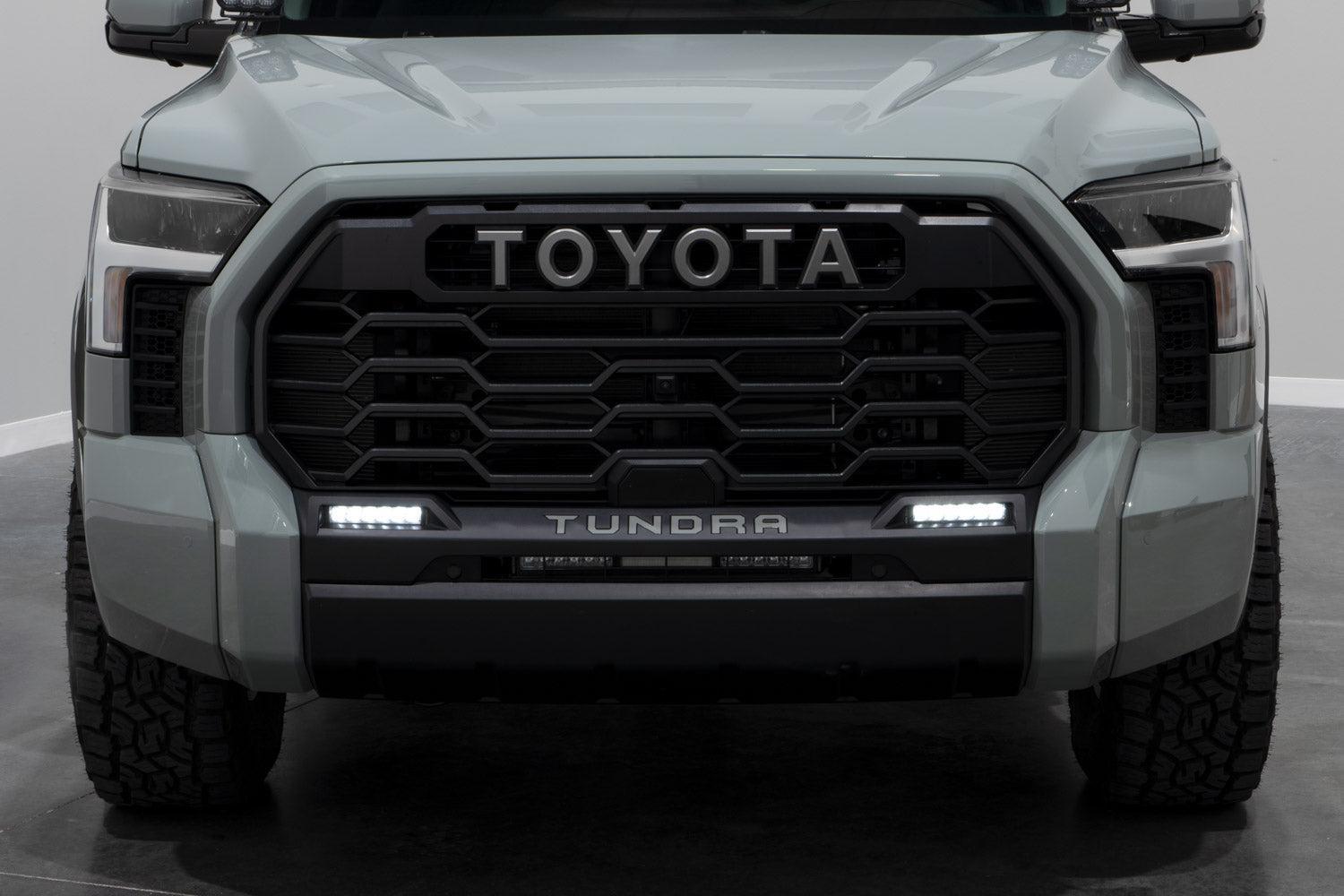

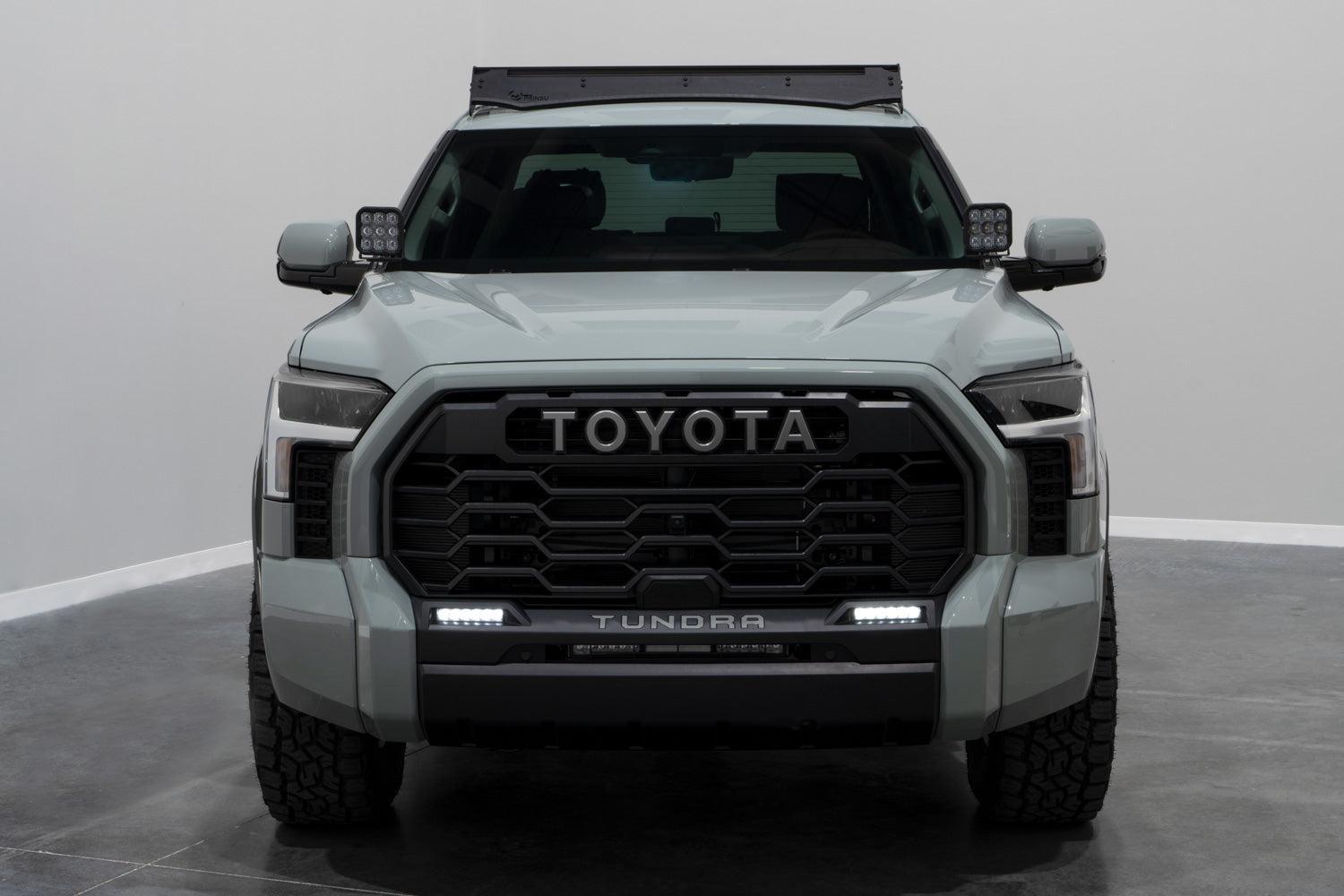

Perfect Fitment. The SAE LED Fog Light Kit for the 2022+ Toyota Tundra from Diode Dynamics allows you to mount a pair of SS6 Stage Series 6" Light Bars in place of the factory fog light housings. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!

Choose Your Look. This kit allows you to mount a pair of SS6 Stage Series 6 inch Light Bars in the bumper openings.

Street Legal Output. This kit isn't just for off road! It is legal for on-road use as fog lights (Please check your local laws and regulations for aiming, installation, and applicability). With the included plug-and-play wiring harness, you can control the kit through your toggle switch.

The SAE Fog/Wide pattern pattern provides an extremely wide field of view, without wasting any light in the sky above and provides a 100Wx8H degree spread of light. It was designed to supplement your fog lights and is perfect for driving in inclement weather.

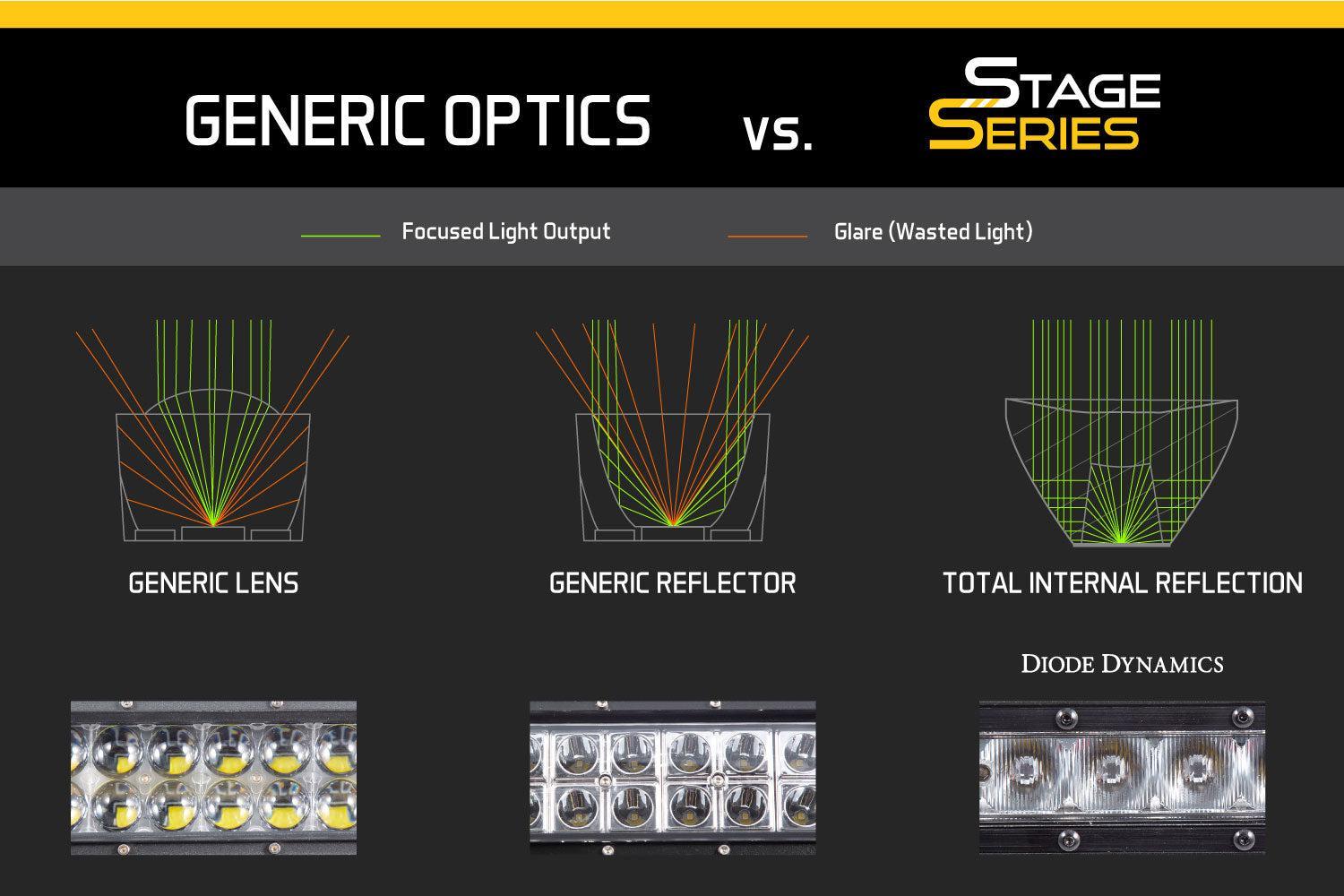

Designed For Performance. Using optical simulation modeling, Diode Dynamics Stage Series light bars have been designed for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market.

Specifications

LENS COLOR/OPTICS

PEAK BEAM INTENSITY
(CANDELA)

ILLUMINANCE
(LUX @ 10M)
MEASURED OUTPUT
(LUMENS)
RAW OUTPUT
(LUMENS)
OUTPUT COLOR
White Wide 13,000 cd 130 lux 1,400 lm 2,280 lm 6000K White
Amber Wide 7,400 cd 74 lux 800 lm 1,140 lm 2000K Amber

Beam Angle: Flood, 80°x50°

Measured Output (lumens): 800 lm

Color Temp: 2000K

Intensity (lux): 7,400 cd

Input Power (watts): 26.6

Operating Voltage: 9-24V

Operating Temperature: -40C to 85C (-40F to 185F)

Intrusion Rating: IP68 Waterproof

LED Emitter: Luxeon Z ES

Connectors: Deutsch DT Input

Physical Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets

Fitment

Application: Fog Light
Make: Toyota
Model: Tundra
Years: 2022, 2023
