Stage Series LED Bed Light Kit For 2024 Toyota Tacoma
Stage Series LED Bed Light Kit For 2024 Toyota Tacoma
Stage Series LED Bed Light Kit For 2024 Toyota Tacoma
Stage Series LED Bed Light Kit For 2024 Toyota Tacoma
Stage Series LED Bed Light Kit For 2024 Toyota Tacoma


Stage Series LED Bed Light Kit For 2024 Toyota Tacoma

Regular price$270.00 CAD
Four (4) Stage Series Rock Lights
One (1) Stage Series Bed Light Wiring Kit
Four (4) T-Slot Nuts
Mounting Hardware
Installation guide

Quantity: Four (4)
Warranty: 8 year warranty

  • Pre-Order, Current ETA: Mid to Late May 2024
  • Free shipping within Canada on orders over 150$


  • Direct fitment on the 2024+ Toyota Tacoma.
  • Allows you to mount four LED rock lights in your truck bed.
  • 10-watt, 800 lumen peak output.
  • Plug-and-play, simple installation.
  • Engineered and Assembled in USA.

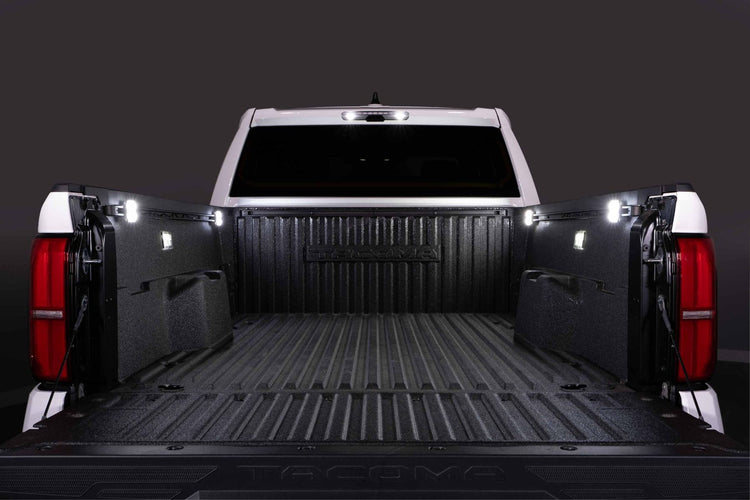

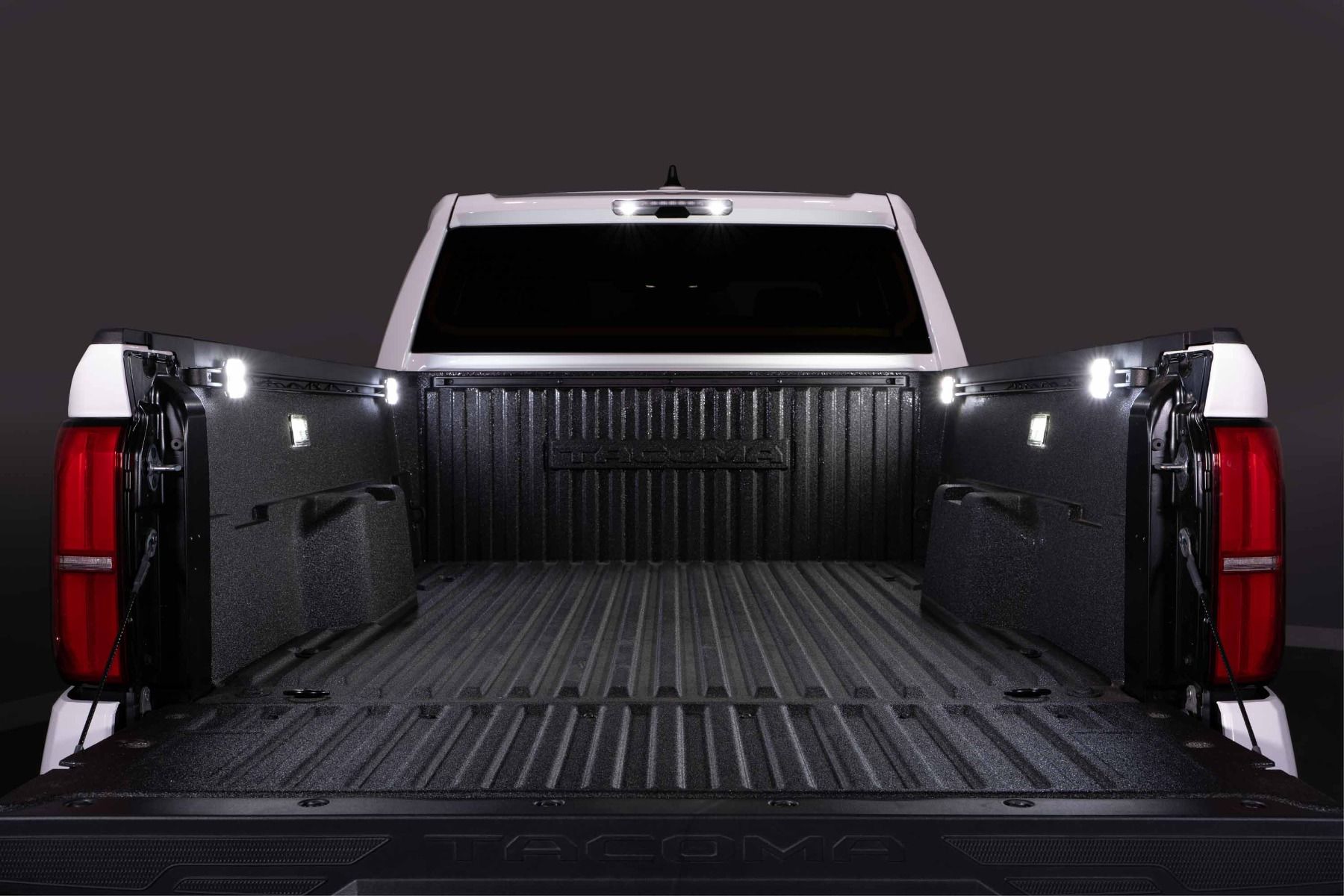

Add significantly more light output to your truck bed at night with our Stage Series LED Bed Light Kit for the Toyota Tacoma! This kit allows you to mount four Stage Series LED Rock Lights to the bed rail on your truck bed, giving you a huge increase in light output. The included wiring harness plugs into your factory wiring, allowing the rock lights to illuminate when you open the tailgate, just like the factory bed lights.

Unmatched Light Output. The factory bed lights just don't provide enough light output when loading or unloading your truck bed at night. By pairing optically engineered lenses with high-powered LEDs, the Stage Series Rock Lights included in this kit provide a significant increase in output that's several times brighter than stock bed lights alone. Plus, they automatically come on when you open the tailgate!

Optically-Engineered, Interchangeable Lenses. When adding more light output to your truck bed, most options on the market are built without optics in mind. They use a simple clear cover to protect from the elements. In true Diode Dynamics style, we’ve incorporated optical features to get the best performance possible. Four individual optics are molded into the outer lens, which provides excellent spread and even, consistent coverage from each light. The lens itself is a thick automotive-grade polycarbonate, made to take a beating. And the best part? The lenses are interchangeable, and can be swapped out easily for a quick color change, with either clear or diffused options. Click here to find extra interchangeable lenses.

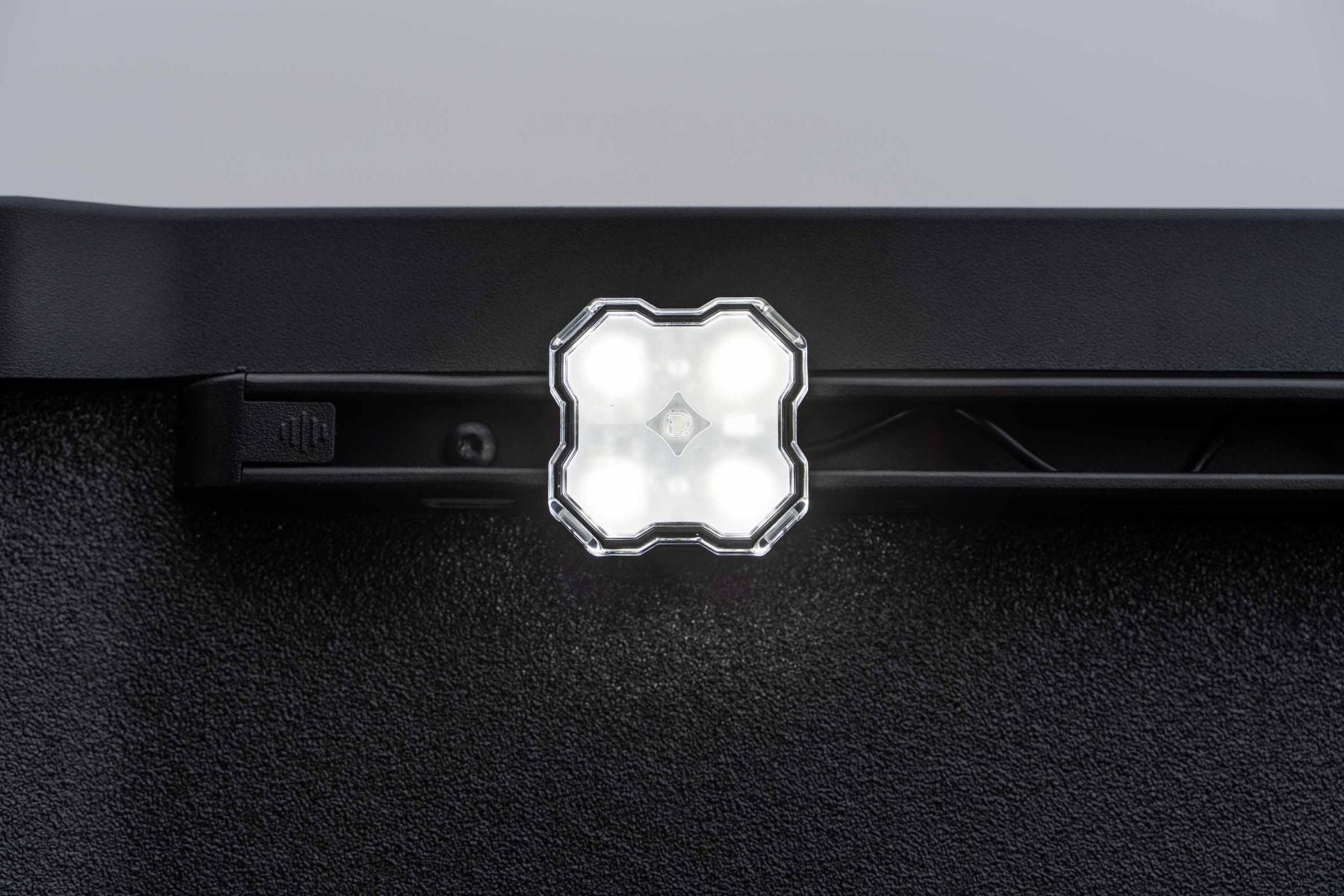

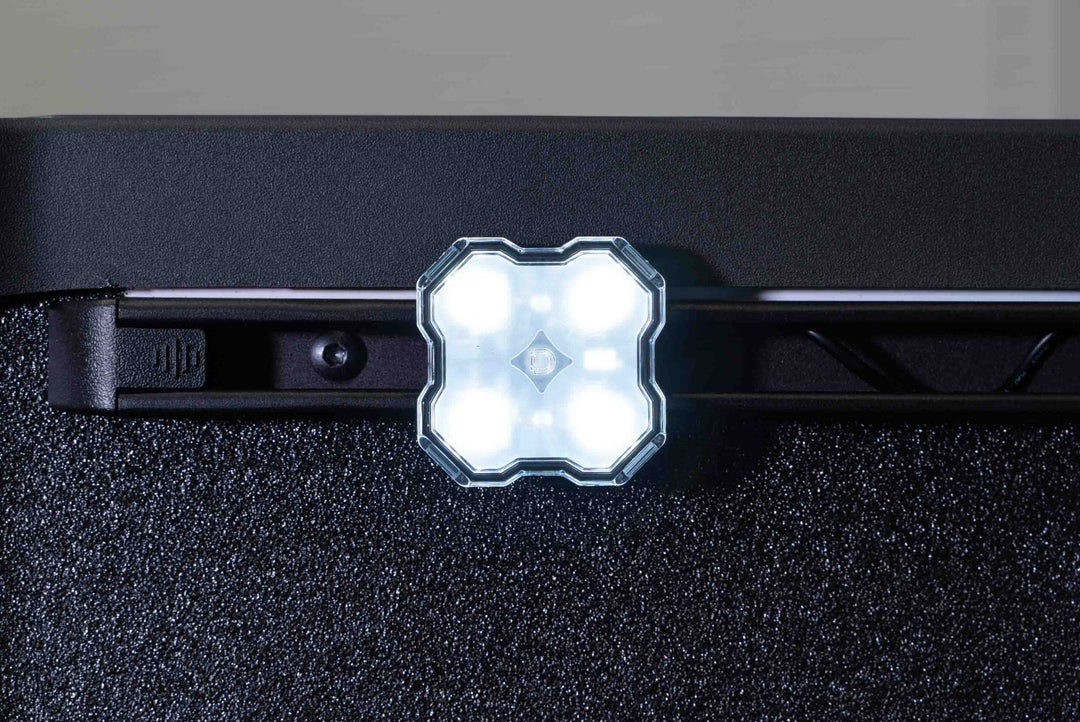

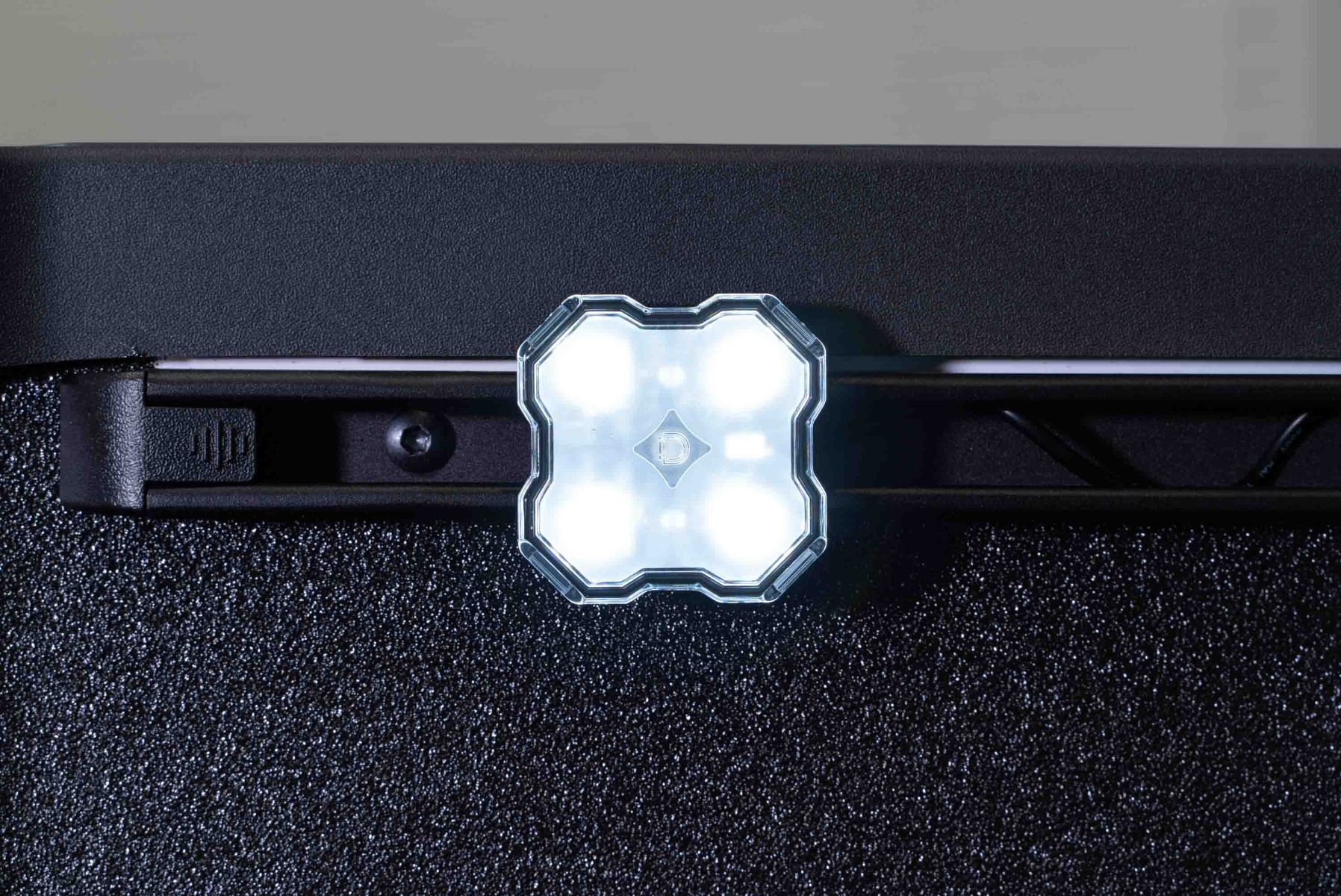

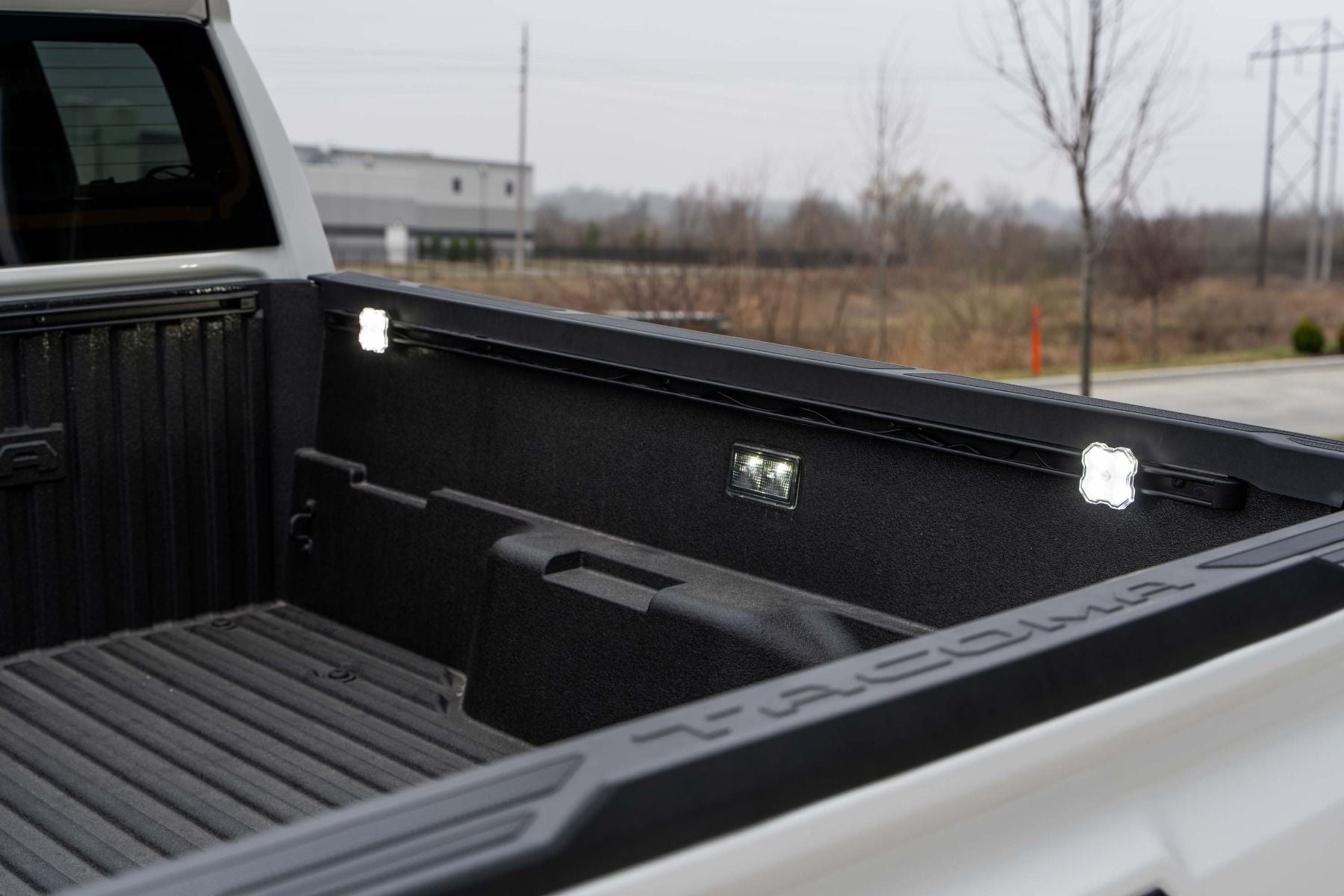

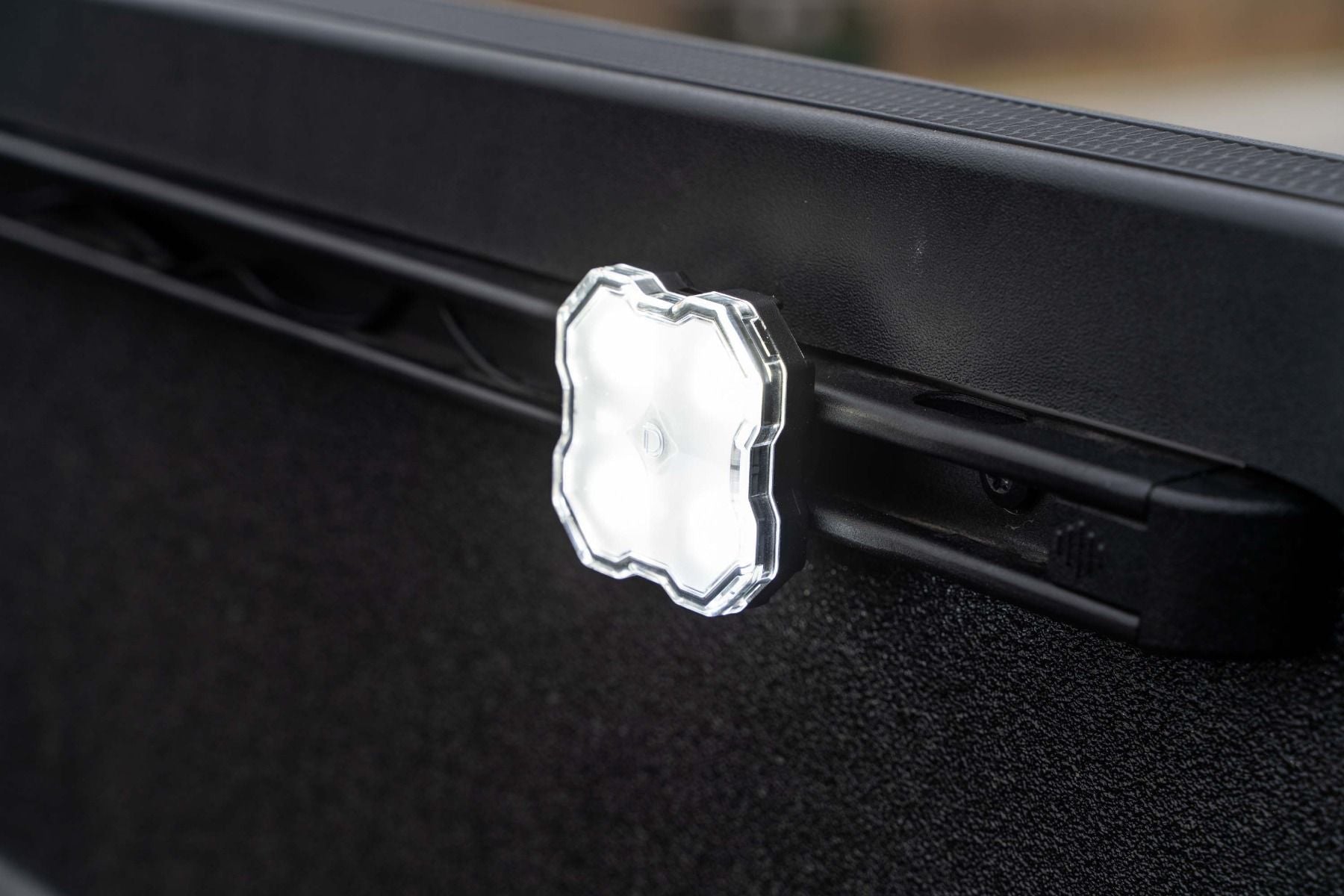

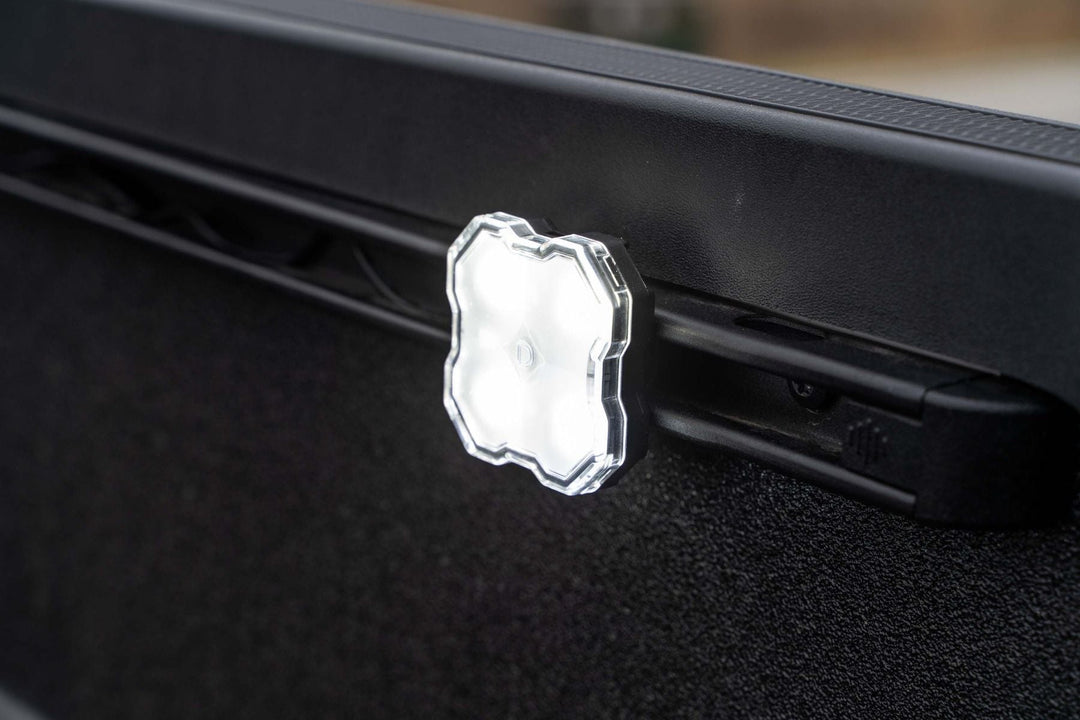

Simple Installation. The included wiring harness plugs directly into the factory bed light wiring for simple installation. The Stage Series LED Rock Lights will then mount onto the included T-Slot Nut to mount it along the factory bed rail.

Proven Reliability. We know your bed lights will be put to the test, so you can rest assured that they have been designed for superior durability. They are IP68 waterproof rated and feature a cast aluminum housing and pin-fin heatsink, for effective thermal dissipation. The lens is designed with thick automotive-grade polycarbonate, and a UV coating. Backed by a limited 8-year warranty, they have been tested in-house from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. Rest assured, the Stage Series Bed Lights will handle whatever you throw at them.

Measured Lumens: 800
Intensity (cd): 300
Color Temp (CCT): 5700K
Beam Angle: Round, 60°
Current (amps @ 13.2V): 1.1
Wire Size: 28AWG
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Lumileds Z ES
Driver Features: Linear Regulated
Materials: UV Coated Polycarbonate Lens, Powdercoated Aluminum
Cooling: Passive, Pin-Fin heatsink
Intrusion Ratings: IP68 Waterproof
Unit Weight (lb): 0.7
Product Weight (lb): 1.6
Shipped Weight (lb): 2.5

Make: Toyota
Model: Tacoma
Years: 2024
