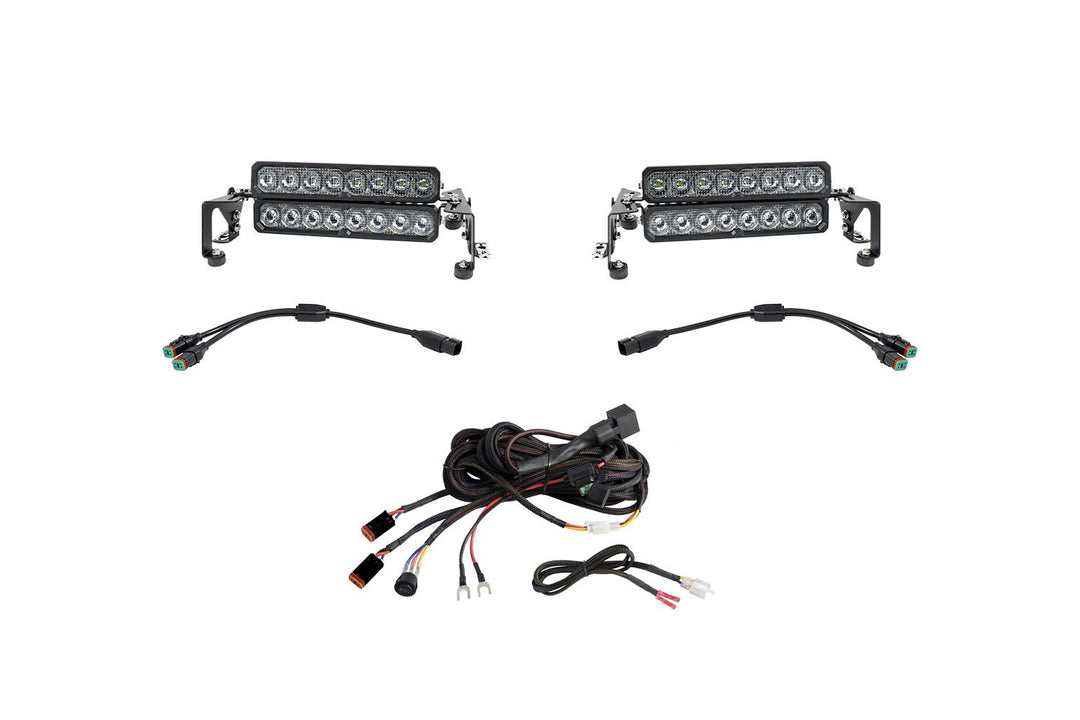

Stage Series Motorsports LED Bracket Kit

Motorsports LED Light Bar Kit

• Rally-designed light bar mounting solution.
• Mount up to four 10" or 20" Stage Series light bars.
• Available with SS10 or SS20 Stage Series Light Bars in white Driving beam pattern.
• Fully customizable, adjust light bar angle and position.
• Aligns to hood contour.
• v mounts for night stages with DZUS sliding lock fasteners.
• Highly durable 12-gauge powdercoated steel construction.

Overview

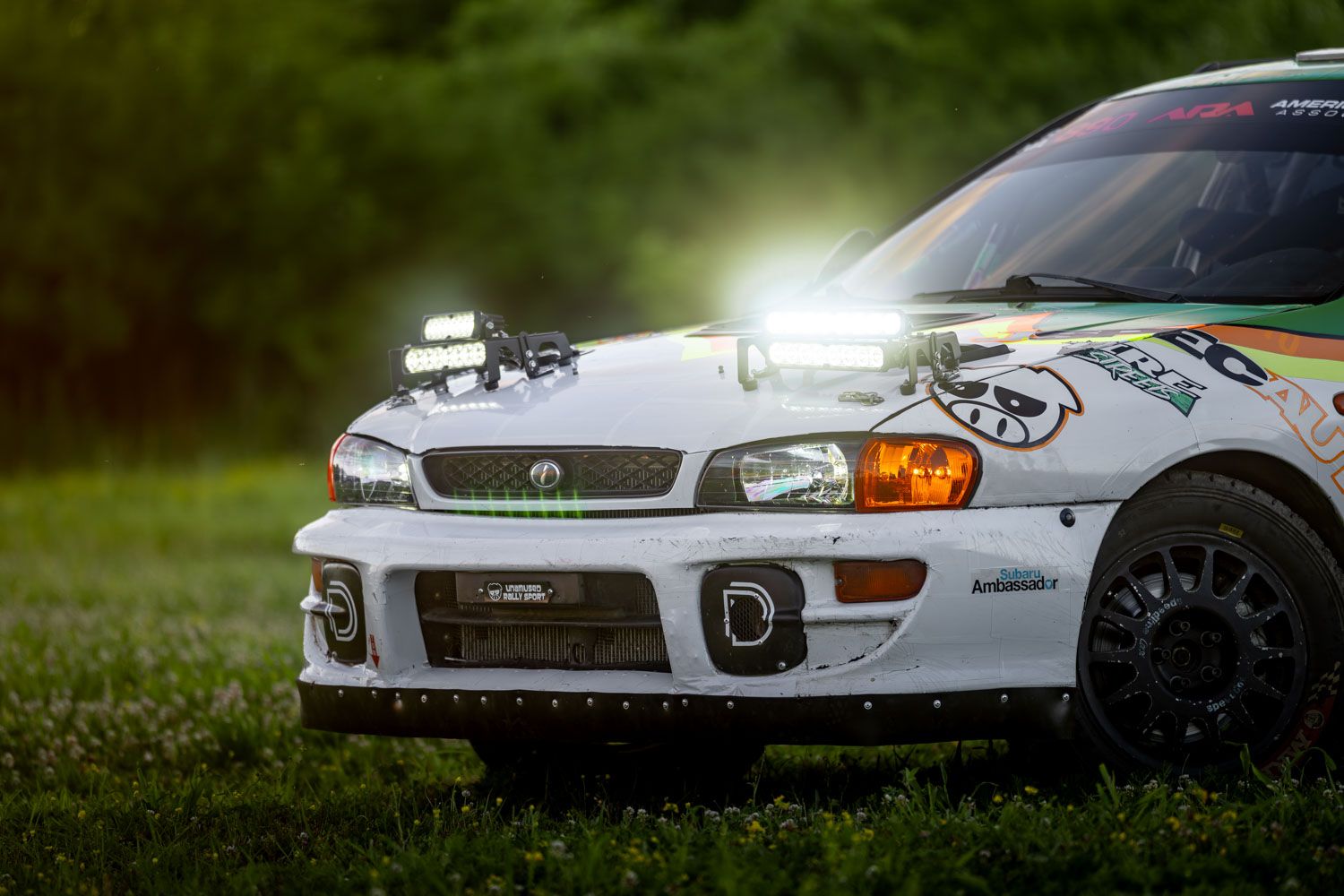

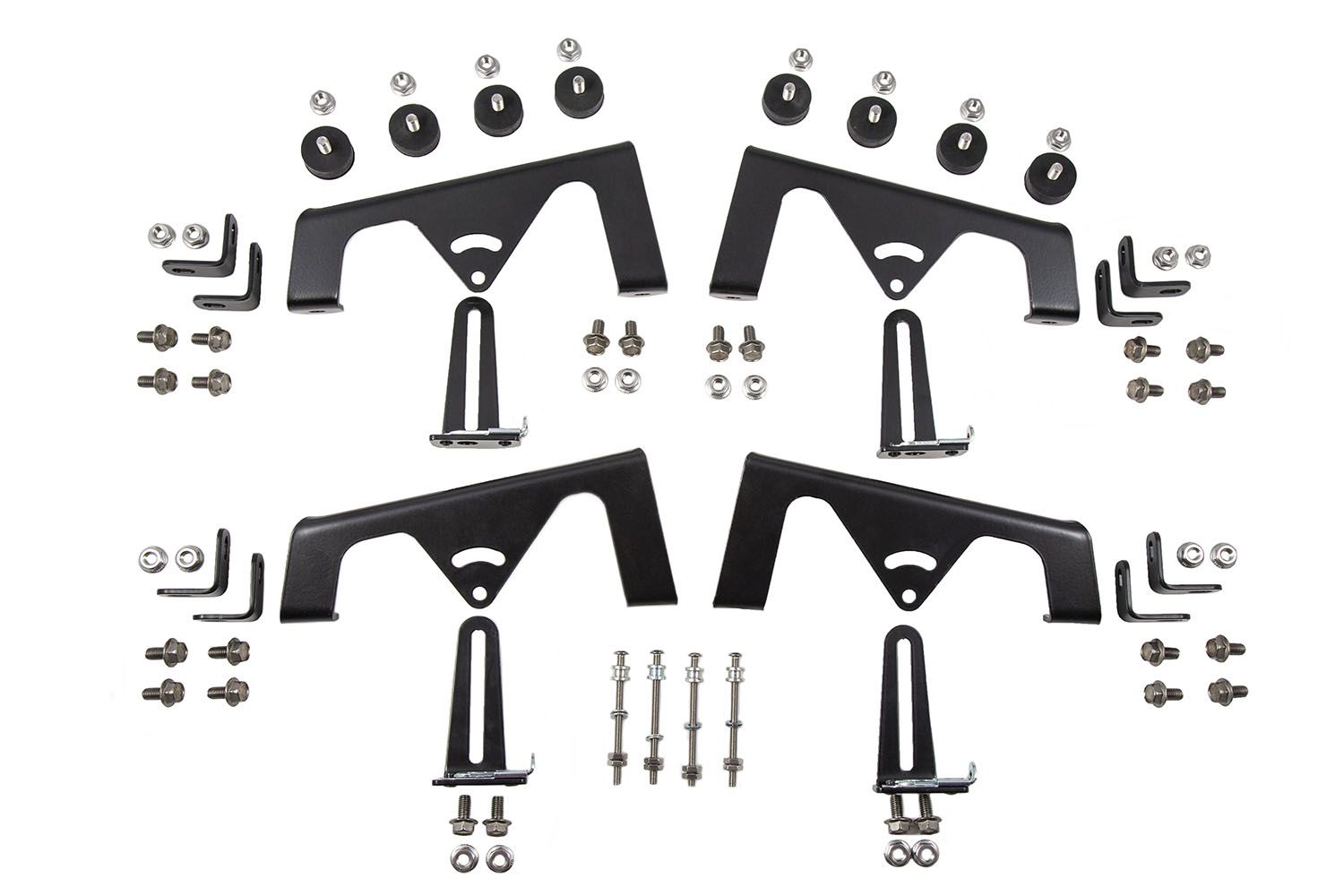

Designed for racing. With 20 years of experience and roots that started in the rally space, Diode Dynamics understands what it takes to build lighting solutions for demanding motorsports environments. The Motorsports LED Light Bar Kit allows you to mount up to four SS10 or SS20 Stage Series Light Bars on the hood of your vehicle. Available with white Stage Series Light Bars in our Driving beam pattern, this kit delivers the long-distance output needed for rally racing, motorsports, and high-speed night stages. The whole kit includes everything needed for installation and uses stainless steel hardware for long-lasting durability, including custom-made stainless rubber bumpers that absorb vibration and prevent damage to the hood. These purpose-built brackets were CAD-designed to provide the performance you need to Go Faster, and See Further.

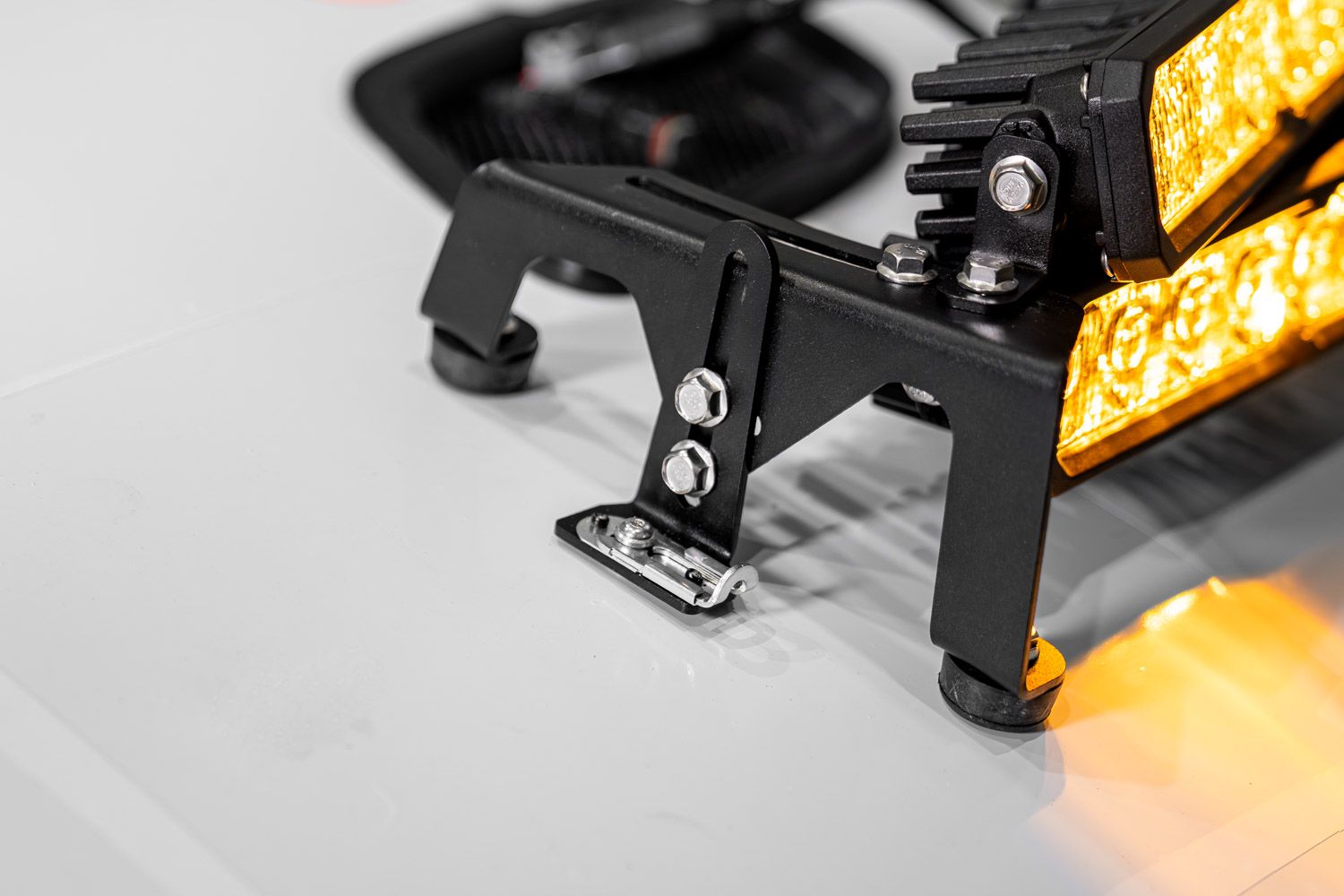

Fully customizable. With the modular design, you can adjust the setup and angling for your specific race conditions and preferences. Each of the light bars is adjustable in output angle and position, and you can also adjust the brackets themselves to align with the contour of your hood. Whether you choose the compact SS10 setup or the larger SS20 setup, this kit gives you the flexibility to fine-tune your lighting for the stage ahead.

A popular option is to aim the top bars straight ahead, and the lower bars angled more to the side. The Driving beam pattern provides a focused beam pattern to punch far ahead while still delivering usable width for turns, braking zones, and changing road conditions. This makes it a great choice for rally stages where you need distance down the straights without excessive foreground light that can blow out your vision.

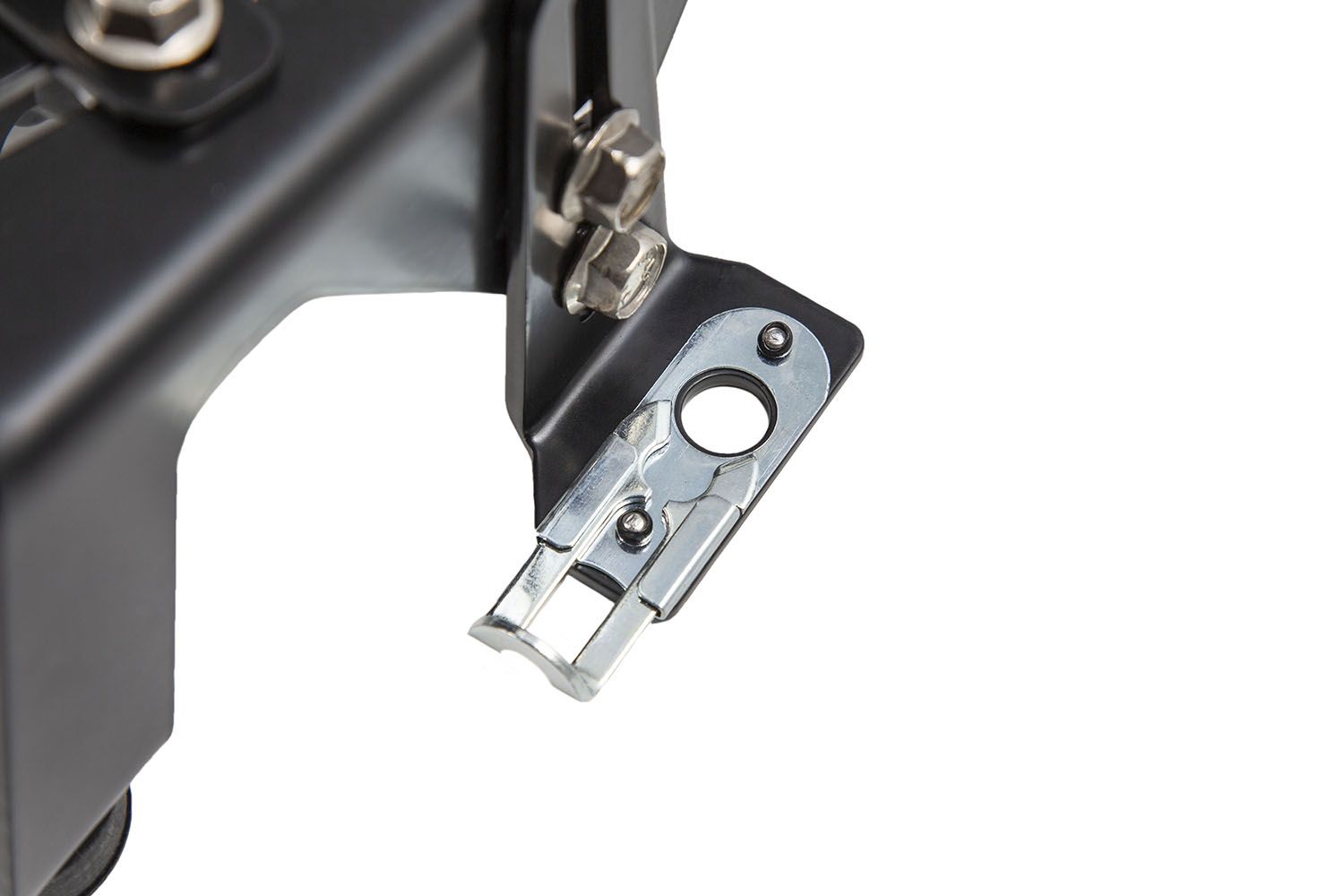

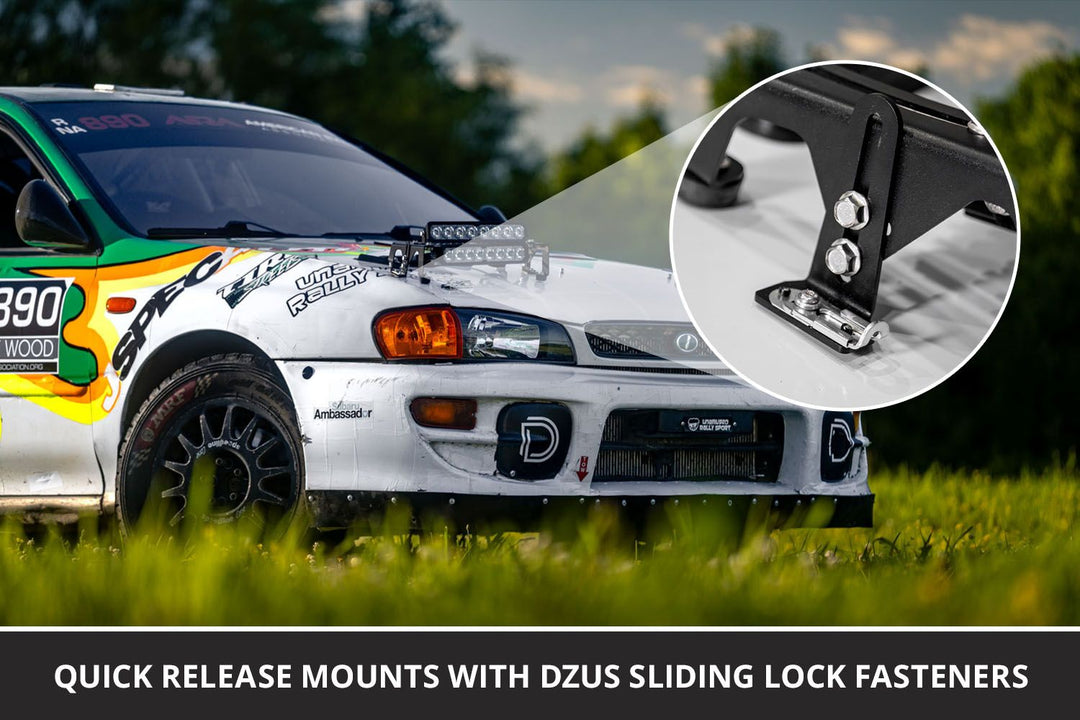

Quick mounting for night stages. This kit utilizes DZUS sliding latch fasteners to mount the setup to your vehicle. These provide reliable, strong attachment, while still offering quick installation for night stages. You'll just need to install them to the hood with a few rivets, and you'll be able to throw your light bars on within seconds during service. When the stage is over, the assembly can be quickly removed to help shed weight.

Designed For Performance. Designed from the start for competition racing, and more specifically night stage rally races, Diode Dynamics Stage Series light bars have been engineered for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our latest Stage Series Light Bars feature upgraded optics, higher output, and improved intensity compared to previous generations, helping you see further with a focused beam pattern engineered for real-world performance.

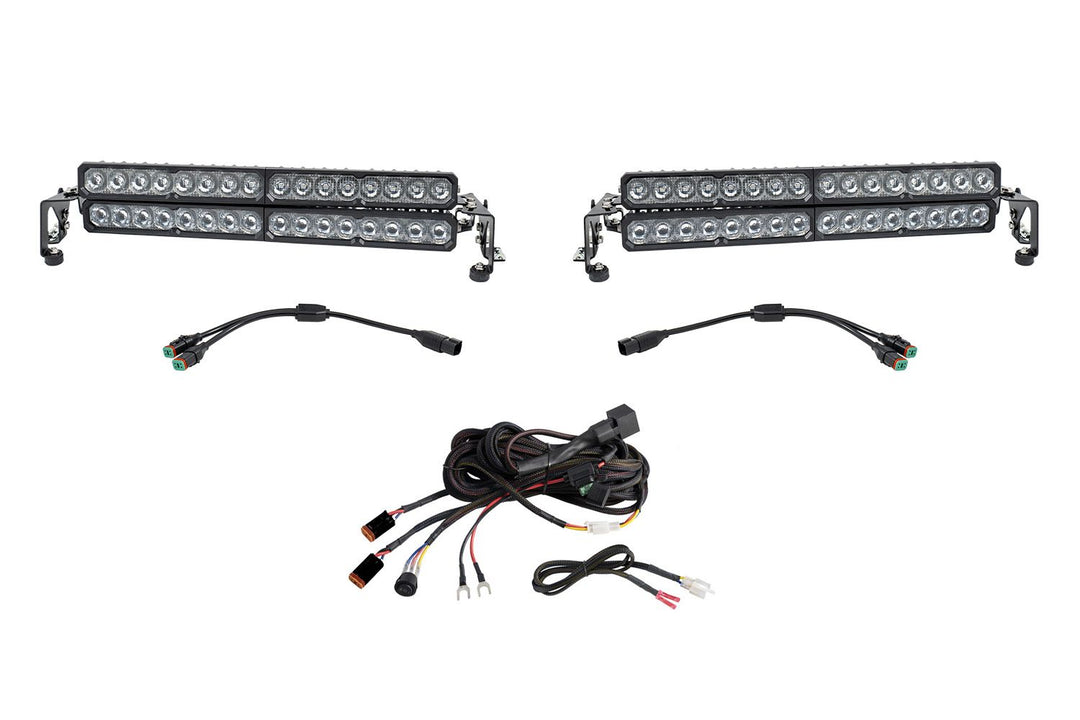

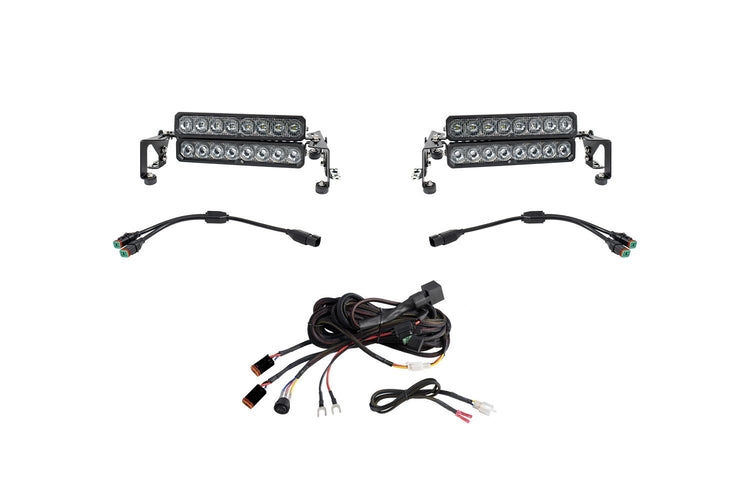

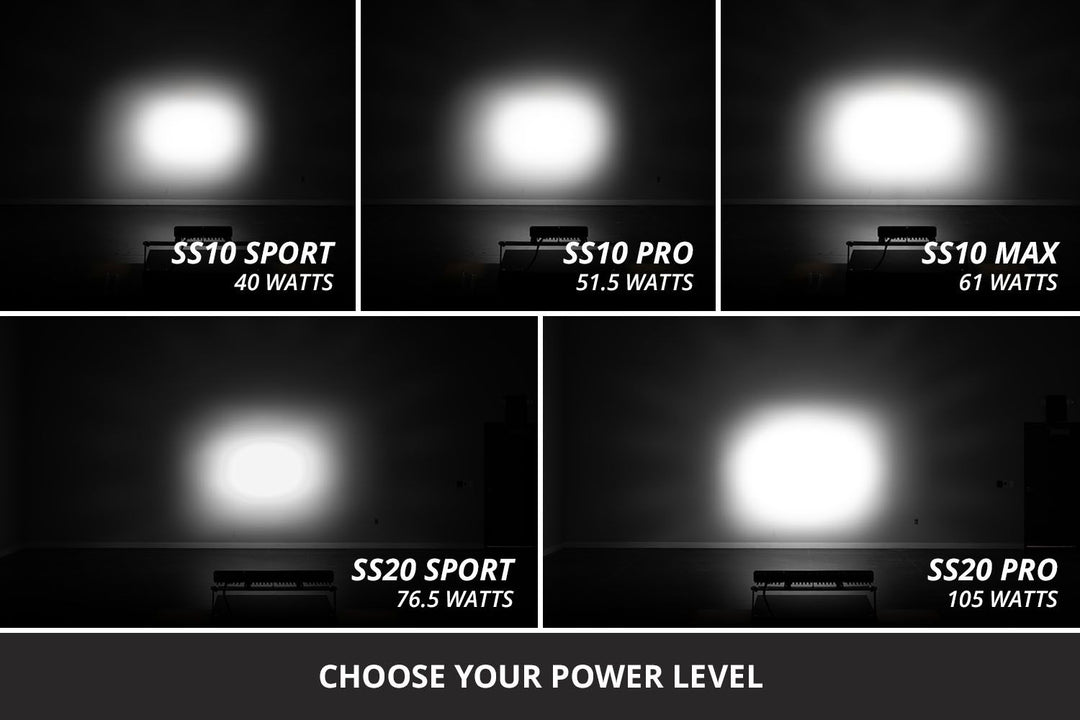

Choose Your Setup. This kit is available with SS10 or SS20 Stage Series Light Bars, giving you the option to choose the size and output level that best fits your build. SS10 kits are available in Sport, Pro, and Max power levels, while SS20 kits are available in Sport and Pro power levels. All options use high-intensity, automotive-grade LED emitters and patented TIR optics for excellent focus, efficiency, and output.

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.
